Front Power Window Switch (Passenger Side)

POWER SUPPLY AND GROUND CIRCUIT:_:FRONT POWER WINDOW SWITCH (PASSENGER SIDE) FRONT POWER WINDOW SWITCH (PASSENGER SIDE)





Diagnosis Procedure
1.CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) connector.
3. Turn ignition switch ON.

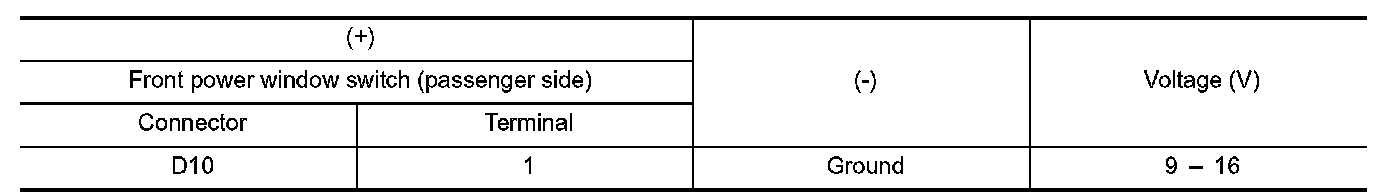

4. Check voltage between front power window switch (passenger side) harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM harness connector and front power window switch (passenger side) harness connector.





4. Check continuity between BCM harness connector and ground.





(): Without Intelligent Key
Is the inspection result normal?
YES - Replace BCM. Removal And Installation With Intelligent Key System (with Intelligent Key) or Removal And Installation, "Removal and Installation" (without Intelligent Key).
NO - Repair or replace harness.
