Storage Lid Deflector

REAR TRIM

STORAGE LID DEFLECTOR : Removal and Installation


REMOVAL

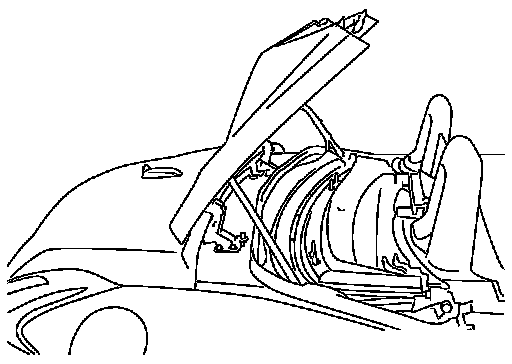

1.Stop storage lid assembly as shown in the figure. (during open operation).

CAUTION:
Storage lid assembly may close due to low oil pressure.
Always support storage lid assembly in the fully open position.

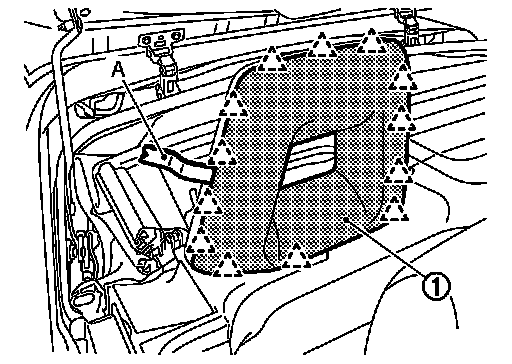

2.Disengage guard frame protector assembly (1) fixing pawls with a remover tool (A).

Broken triangle indicates : Pawl

3.Remove guard frame protector assembly.





4.Remove guard frame plate assembly mounting bolts (A).
5.Remove guard frame plate assembly.





6.Remove storage lid deflector (1) mounting nuts (A) and bolts (B), and then remove storage lid deflector.

INSTALLATION

Install in the reverse order of removal.
