Removal And Installation Without I-Key




IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Removal and Installation


CAUTION:
IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.Disconnect the battery cable from the negative terminal.

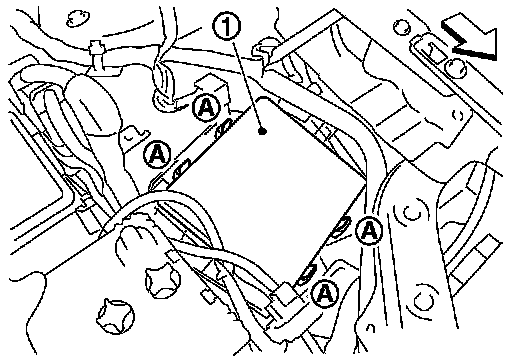

2.Remove the IPDM E/R (1) while pressing the pawls (A).
White arrow indicates : Vehicle front
3.Disconnect the harness connector and then remove the IPDM
E/R.

INSTALLATION

Install in the reverse order of removal.
