For California

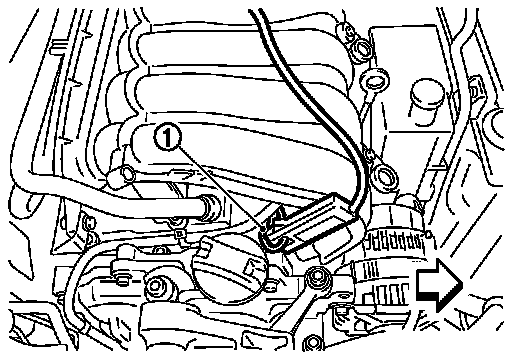

INSPECTION AND ADJUSTMENTIGNITION TIMING : Special Repair Requirement 1. CHECK IGNITION TIMING 1.Attach timing light to No. 1 ignition coil (1) wire as shown.
White arrow indicates : Vehicle front

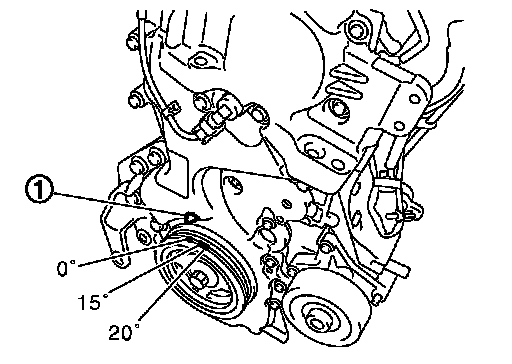

2.Check
ignition timing.
- INSPECTION END
