Connecting Rod, Engine
Tighten
connecting rod cap bolts.
Completely loosen
connecting rod cap bolts.
Tighten
connecting rod cap bolts.
Then turn all
connecting rod cap bolts 60 degrees clockwise (angle tightening).

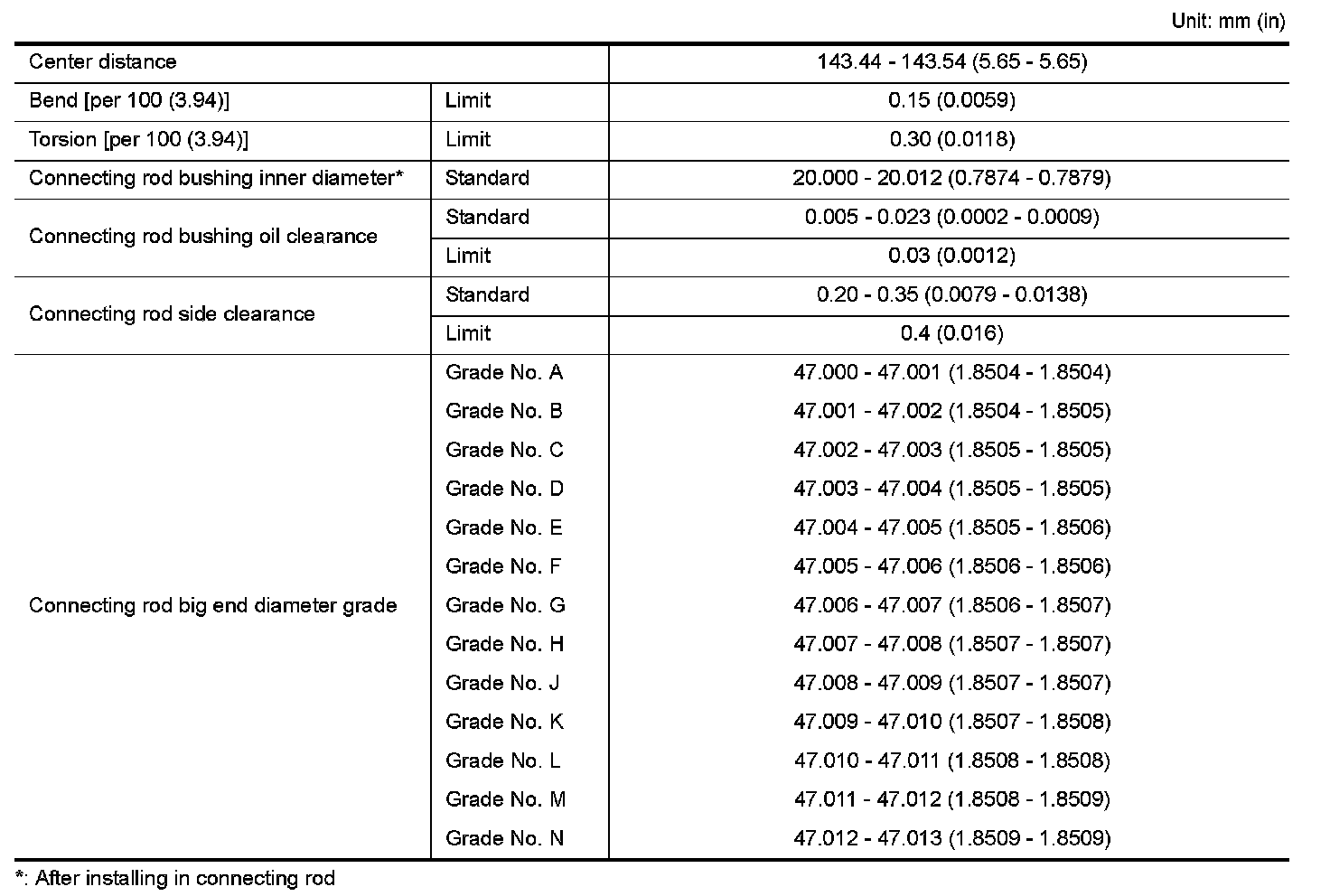

CONNECTING ROD
