Intake Manifold
Intake manifold with the following procedure:

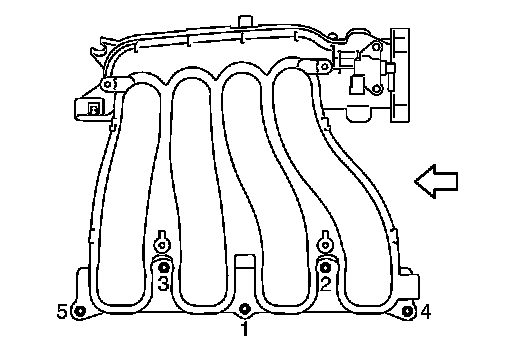

a.Tighten in the order of 1 to 5 as shown in the figure.
White arrow indicates : Engine front
b.Tighten No. 1 bolt again.

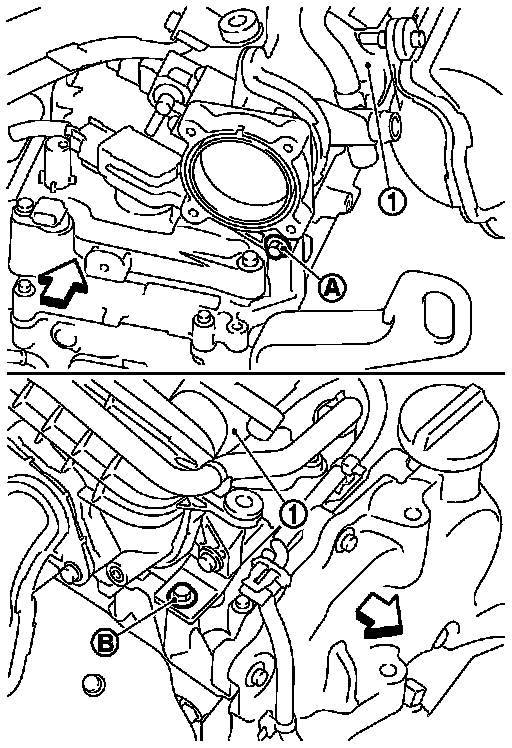

c.Tighten
intake manifold mounting bolt (A). Then tighten intake manifold mounting bolt (B).
For California
Except for California
