Without Intelligent Key System

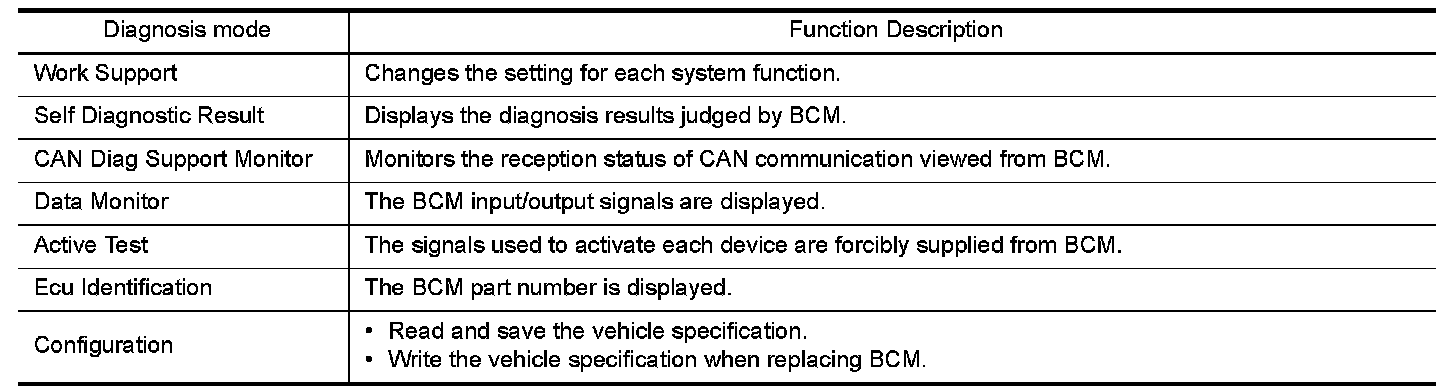

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM.

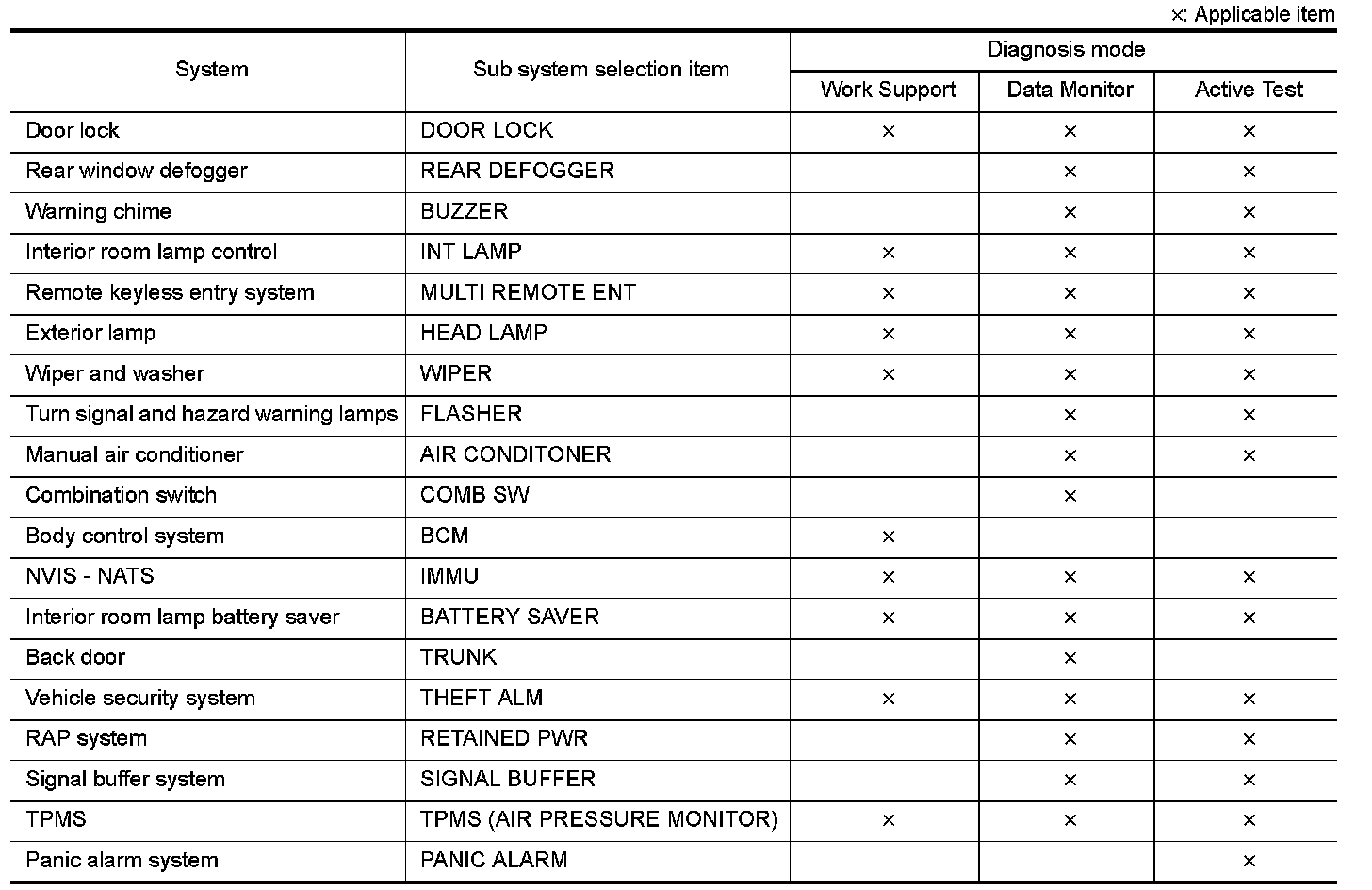

SYSTEM APPLICATION BCM can perform the following functions for each system.
NOTE: It can perform the diagnosis modes except the following for all sub system selection items.
x: Applicable item
