Li-Ion Battery Heater

COMPONENT PARTS

Li-ion Battery Heater

- Li-ion battery heater is installed in the battery pack.
- High voltage power is supplied from the heater relay unit.
- Each Li-ion battery heater is connected in parallel.

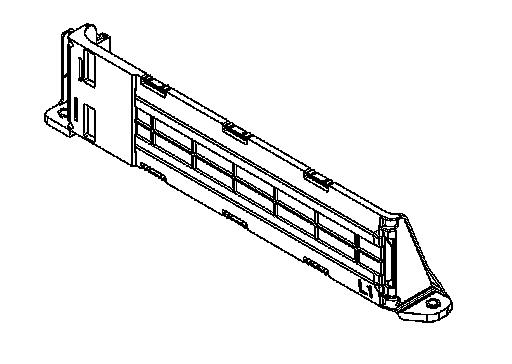

FRONT LI-ION BATTERY HEATER

- Three front Li-ion battery heaters are installed to each front module stack.

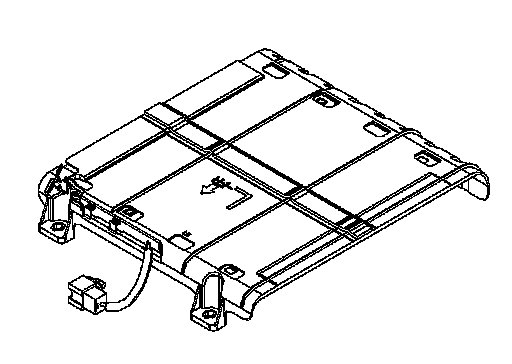

REAR LI-ION BATTERY HEATER

- Two rear Li-ion battery heaters are installed to the rear module stack.
