Ascd Brake Switch

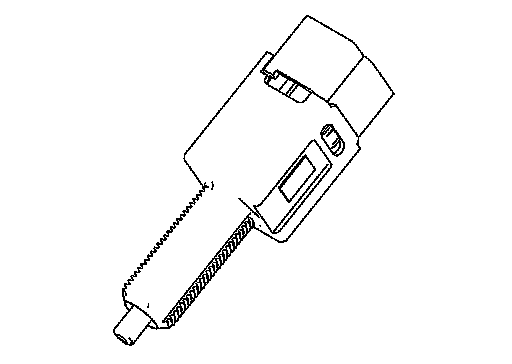

COMPONENT PARTSASCD Brake Switch The ASCD brake switch is installed to the brake pedal bracket. The switch detects the state of the brake pedal and transmits an ON/OFF
signal to VCM.
The contact of the ASCD brake switch is usually closed. When the brake pedal is depressed, it opens to disconnect the circuit, and shut off the output voltage. This constitutes an ASCD brake switch signal.
