Relay Control System

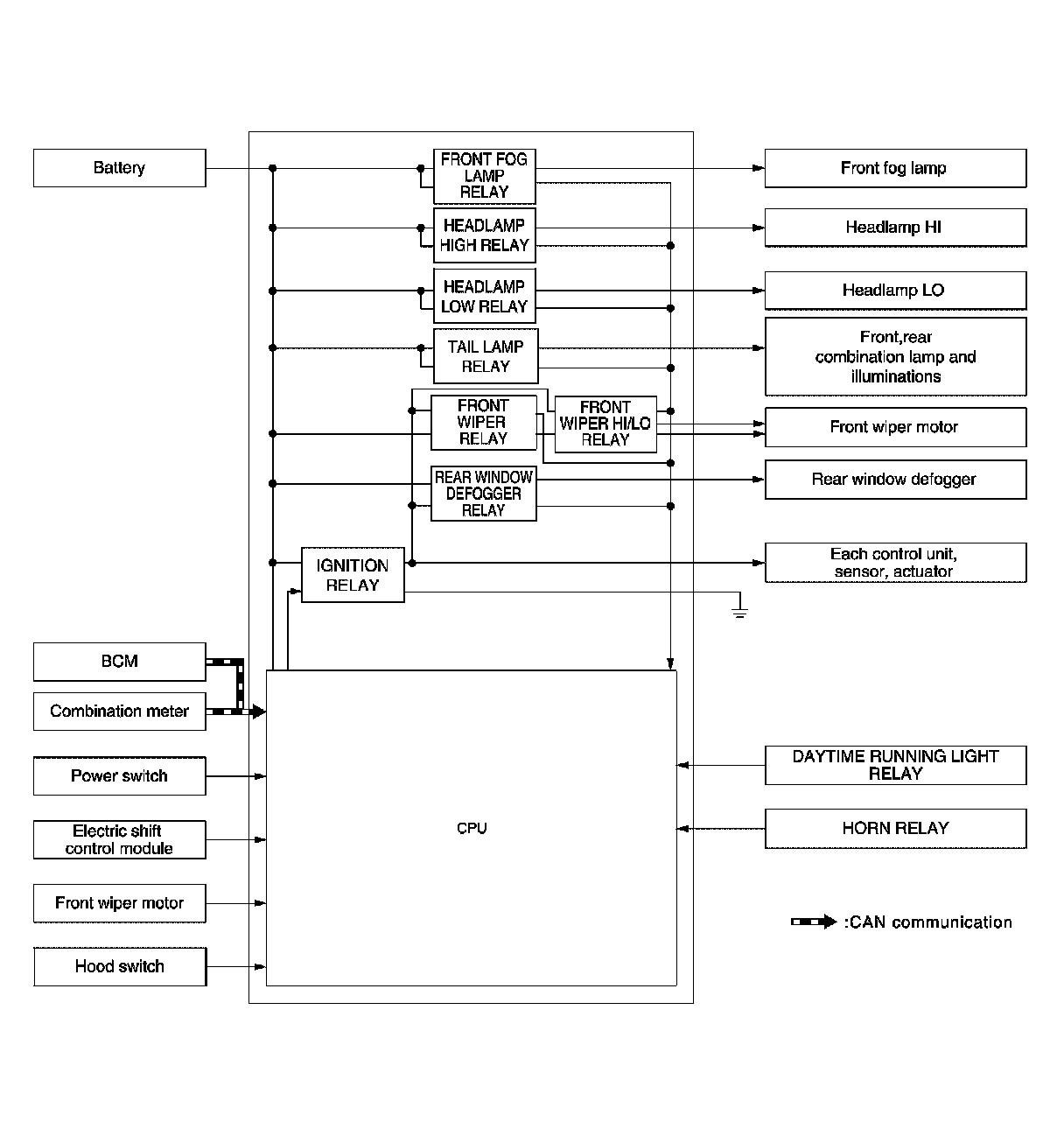

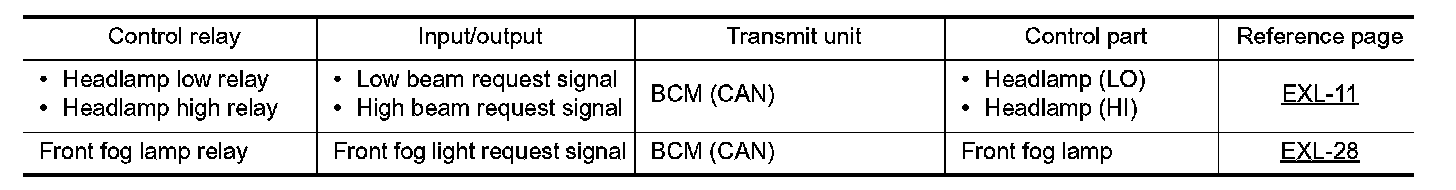

SYSTEMRELAY CONTROL SYSTEM : System Description SYSTEM DIAGRAM DESCRIPTION IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.

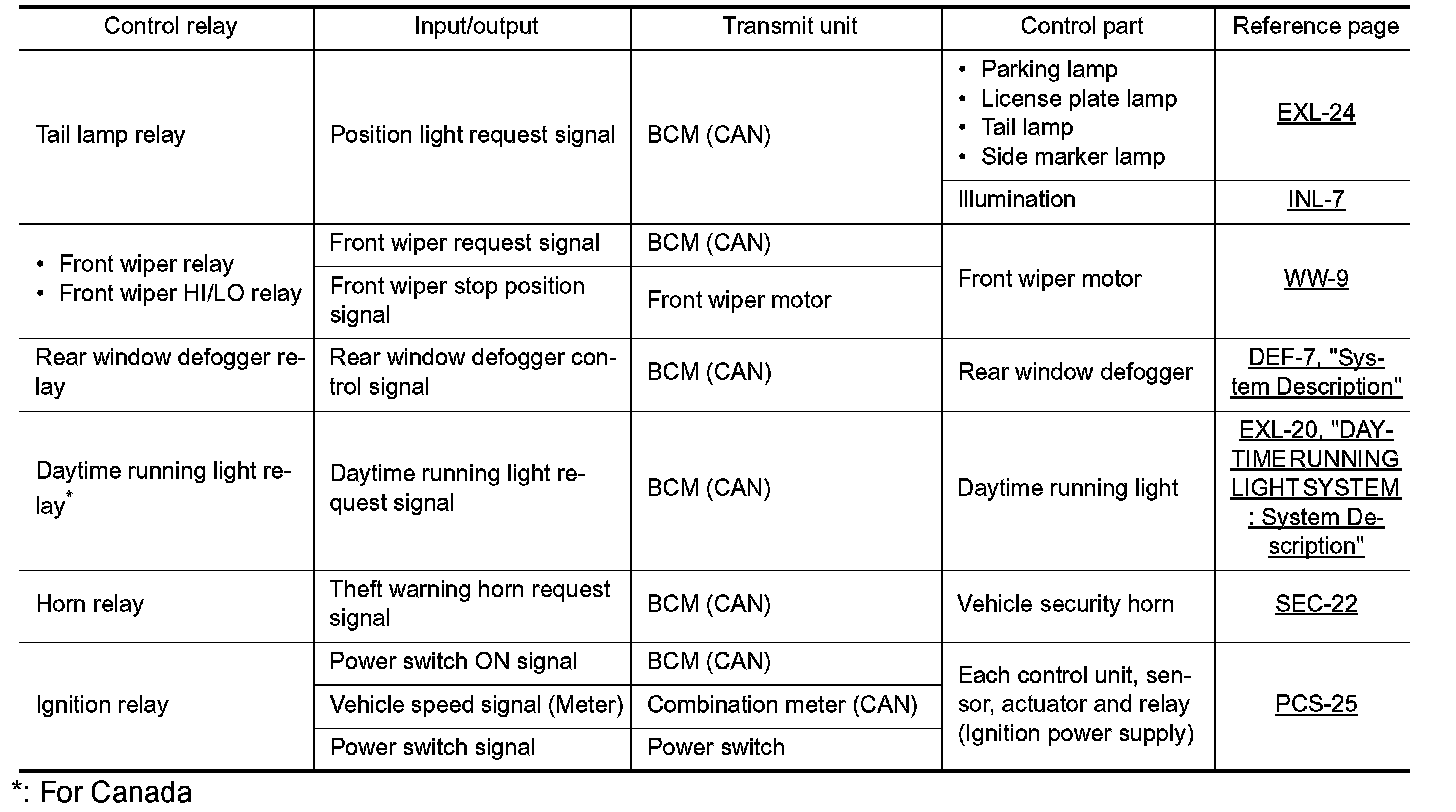

CAUTION: To prevent damage to the parts, IPDM E/R integrated relays cannot be removed. *: For Canada
