Signal Buffer System

SYSTEM

SIGNAL BUFFER SYSTEM : System Description

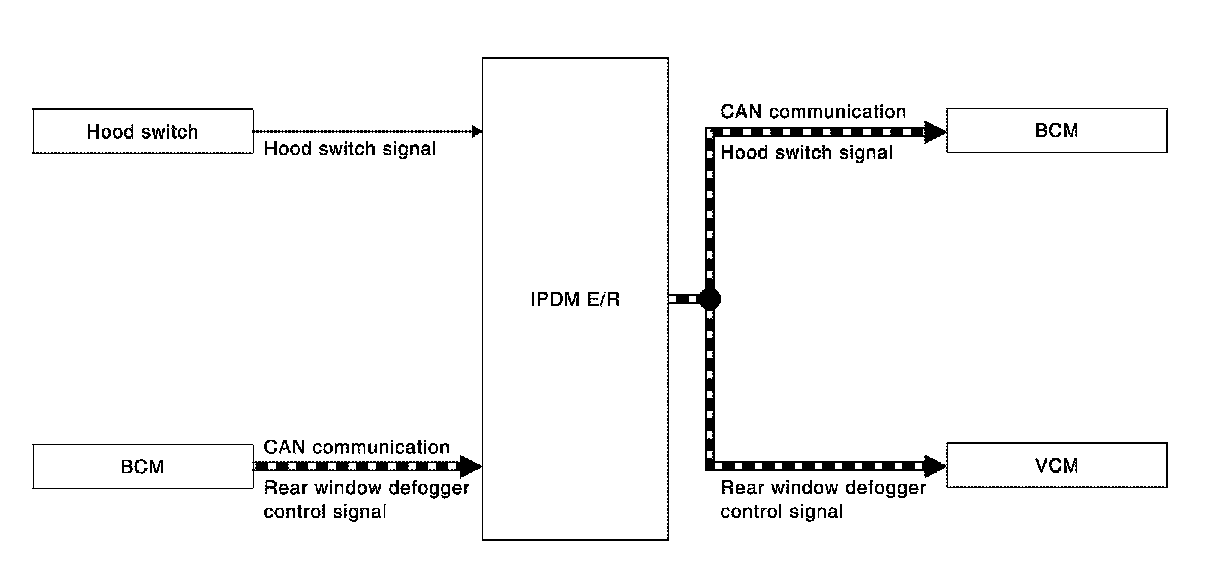

SYSTEM DIAGRAM







DESCRIPTION

- IPDM E/R receives the rear window defogger control signal from BCM via CAN communication and transmits the rear window defogger status signal to VCM via CAN communication. Refer to "System Description" System Description.
- IPDM E/R reads the hood switch and transmits the hood switch signal to BCM via CAN communication.
Refer to "VEHICLE SECURITY SYSTEM : System Description (For Canada)" System Description (For Canada) (For Canada).
