System Description




SYSTEM

System Description

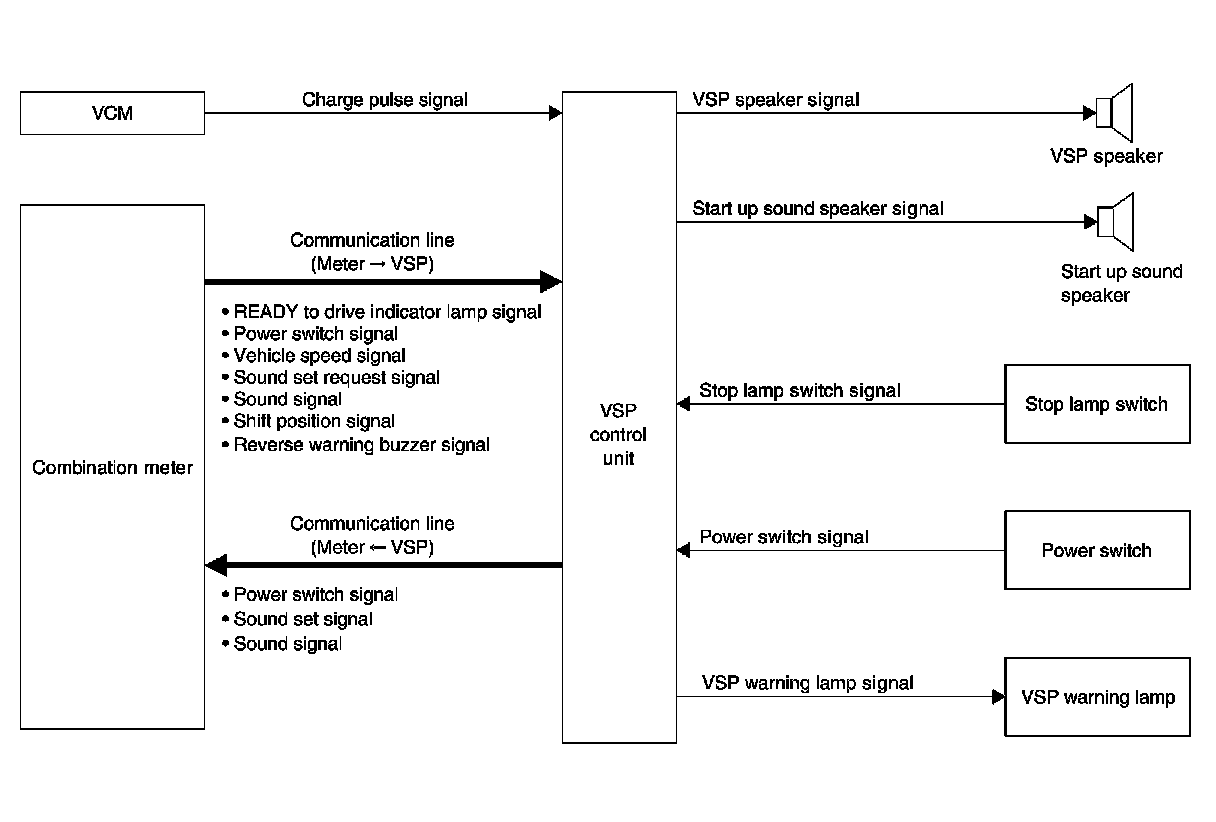

SYSTEM DIAGRAM







SYSTEM DESCRIPTION

- The VSP control unit is connected to the parts listed below, and it controls each system according to the input signals.
- Combination meter
- VCM
- VSP warning lamp
- Power switch
- Stop lamp switch
- VSP speaker
- Start up sound speaker
- The combination meter sends the following signals to the VSP control unit via communication line.
- READY to drive indicator lamp signal
- Power switch signal
- Vehicle speed signal
- Sound set request signal
- Sound signal
- Shift position signal
- Reverse warning buzzer signal
- The VSP control unit sends the following signals to the combination meter via communication line.
- Power switch signal
- Sound set signal
- Sound signal
- The VCM outputs the charge pulse signal to the VSP control unit.
- The VSP control unit controls the following systems according to the signals from the units and switches.
- VSP system
- Start up sound system
- Charge sound system
- The VSP control unit has a diagnostic function. Diagnosis can be performed using CONSULT.
