Approaching Vehicle Sound For Pedestrians (VSP) Control Unit
APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) CONTROL UNITRemoval and Installation REMOVAL 1.Remove the glove box cover assembly. Refer to "Removal and Installation"
Removal And Installation.
2.Remove the VSP control unit connector.

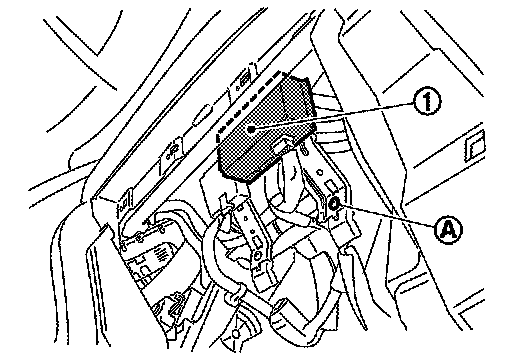

3.Remove screw (A), and then remove the VSP control unit (1).
INSTALLATION Install in the reverse order of removal.
