Start Up Sound Speaker




START UP SOUND SPEAKER

Removal and Installation


REMOVAL

1.Remove the instrument lower panel LH. Refer to "Removal and Installation" Removal And Installation.

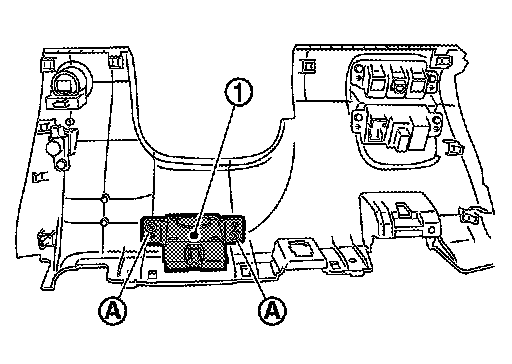

2.Remove screws (A), and then remove the start up sound speaker (1).

INSTALLATION

Install in the reverse order of removal.
