Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (VSP)

CONSULT Function

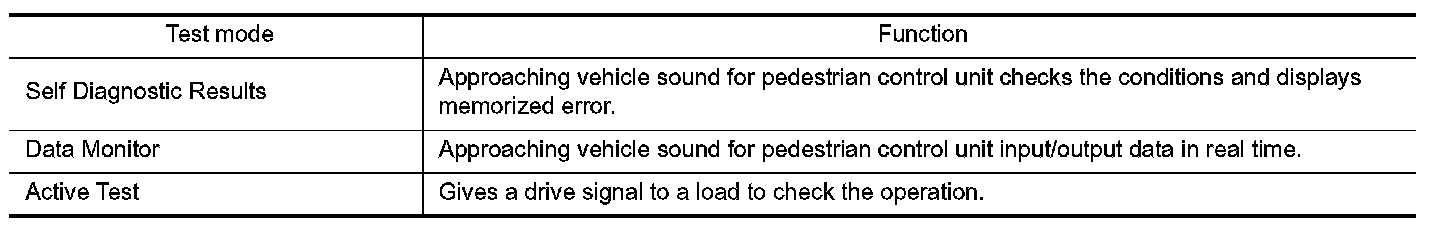

APPLICATION ITEM

CONSULT can display each diagnostic item using the diagnostic test modes shown as per the following:

SELF-DIAGNOSTIC RESULTS

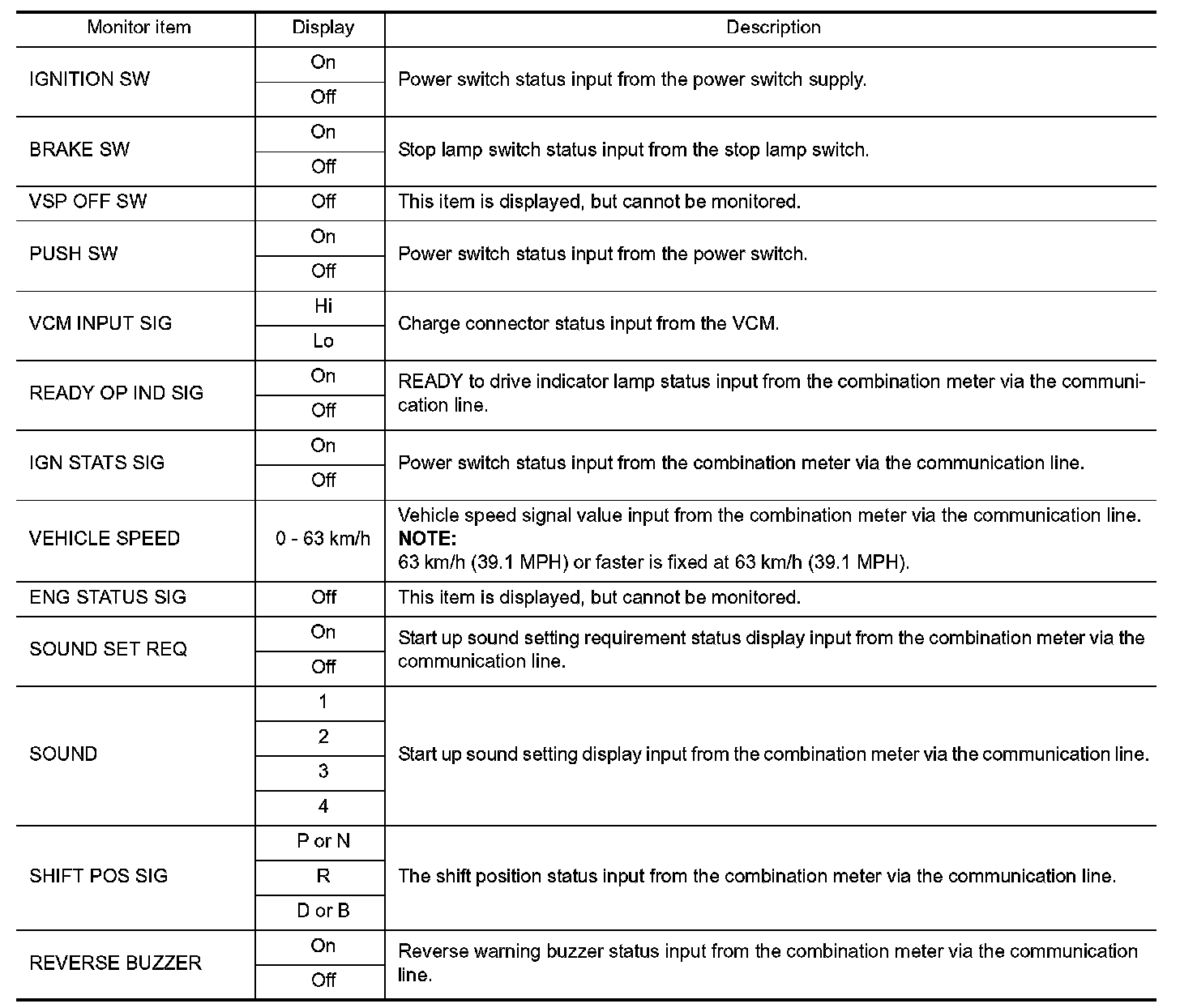

DATA MONITOR

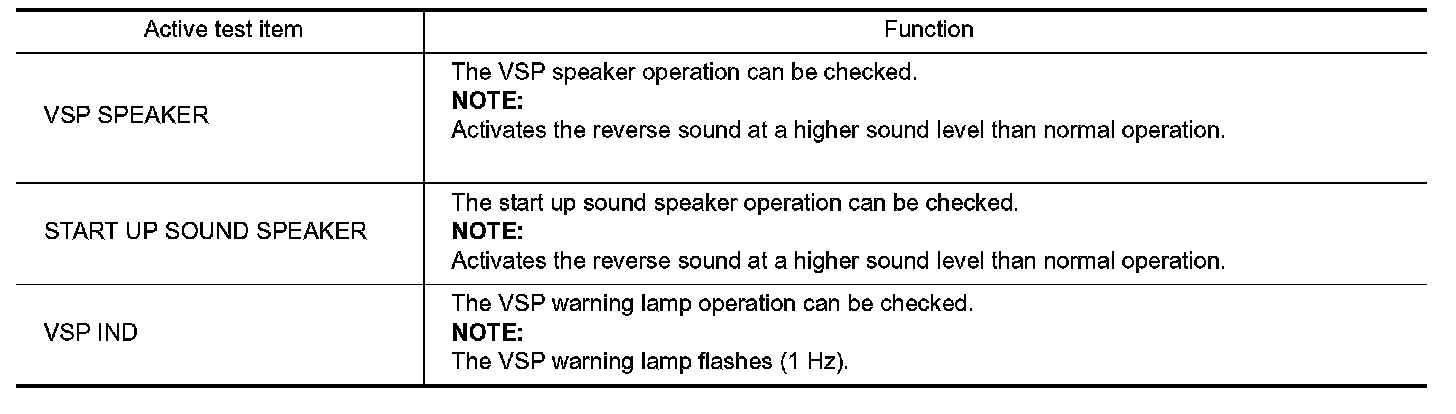

ACTIVE TEST
