Removal And Installation
SOLAR CELL MODULERemoval and Installation REMOVAL 1.Remove rear spoiler. Refer to "Removal and Installation"
Removal And Installation.

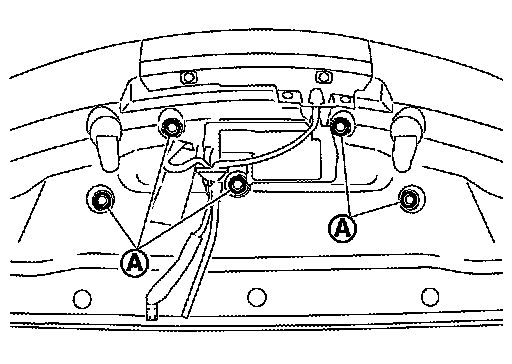

2.Remove solar cell module mounting nuts (A).

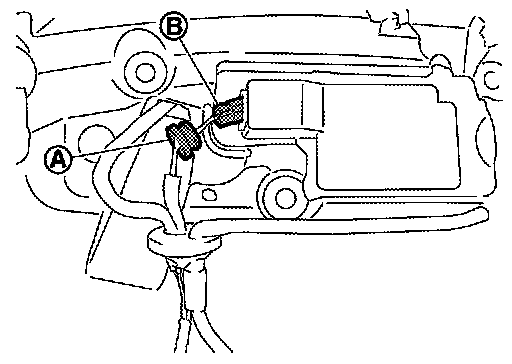

3.Remove harness grommet (A), and then disconnect harness connector (B).
4.Remove solar cell module from rear spoiler.
INSTALLATION Install in the reverse order of removal.
