Navigation System - A/V Control Unit Exchange Info.

Classification: EL11-034A

Reference: NTB11-088A

Date: December 22, 2011

LEAF; AN CONTROL UNIT EXCHANGE AND MAP SD CARD REPLACEMENT

This bulletin has been amended. The Applied Vehicles section has been revised. No other changes have been made. Please discard all previous copies.

APPLIED VEHICLES: 2011-2012 LEAF (ZEO)

SERVICE INFORMATION

When replacing (exchanging) an A/V Control Unit, Do Not remove the Map SD Card. The Map SD Card is matched to the unit.








NOTE:

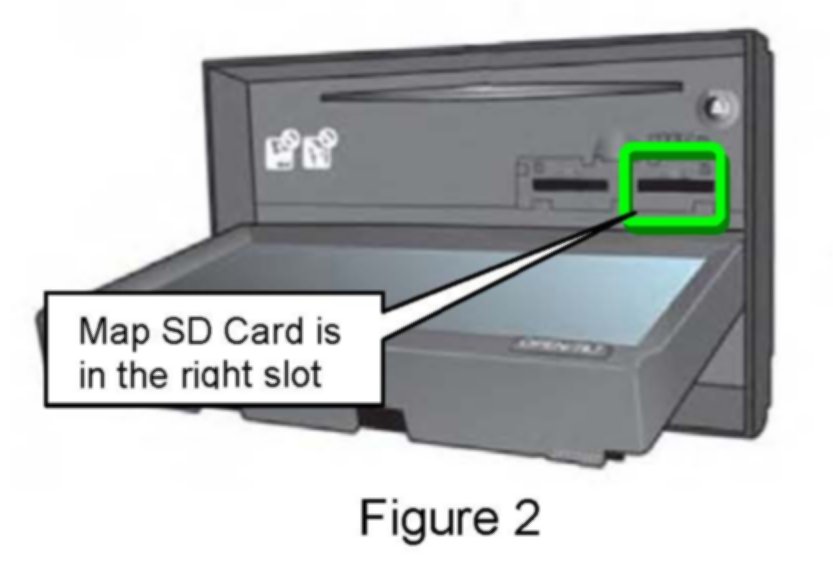

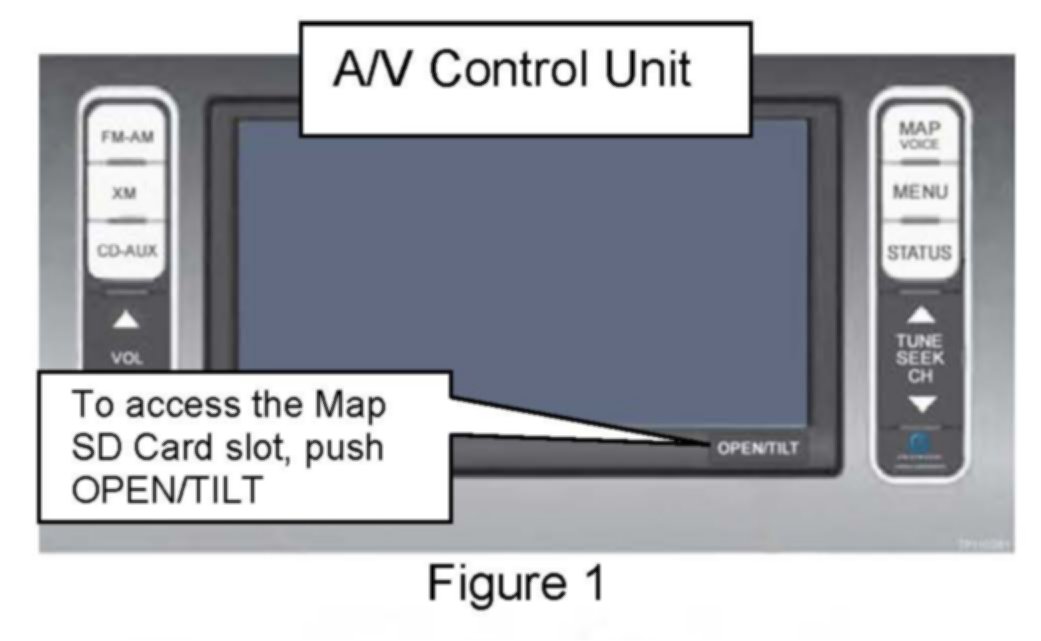

See Figures 1 and 2 for Map SD Card location.

^ If an A/V Control Unit is sent to Clarion without the Original Map SD Card, Clarion will NOT accept it. The A/V Control Unit will be sent back to the dealer.

^ If the dealer does NOT resend the unit to Clarion with the original (matched) Map SD Card within 30 days, the entire A/V Control Unit (including SD Card) cost will be charged back to the dealer.

^ To order a replacement matched Map SD Card, fill out an order form and fax to Clarion.

Order forms are found on the Nissan Electronic Exchange Information Page on the dealer portal: https://www.nnanet.con/wps/myportal/DPNissanElectronicExchangeInformation.
