With Intelligent Key System

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

System Description


INPUT/OUTPUT SIGNAL CHART

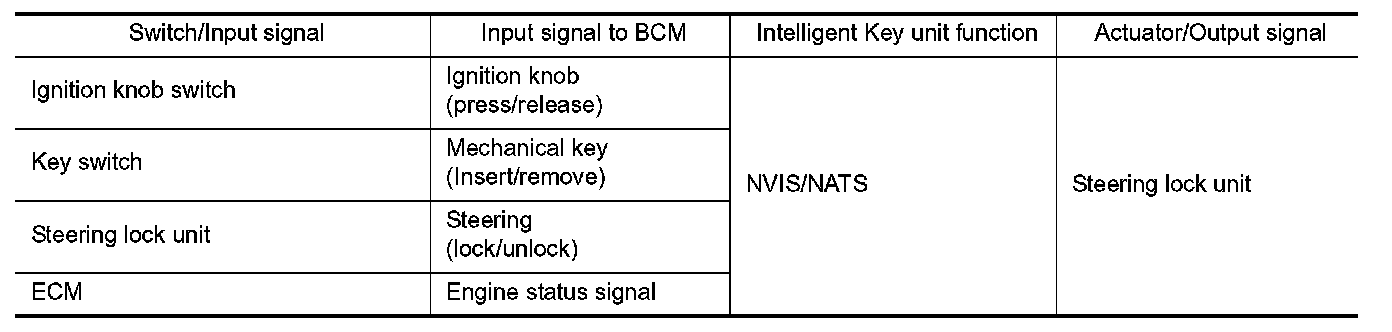

Intelligent Key Unit

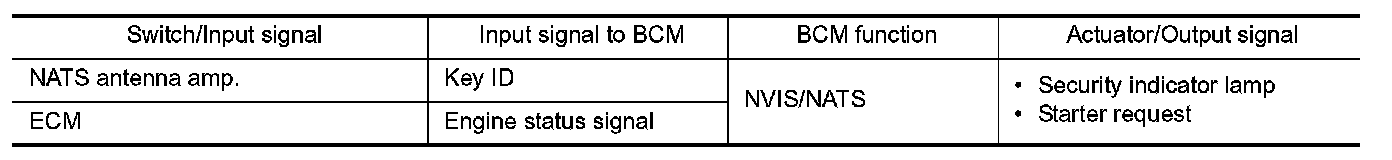

BCM






SYSTEM DESCRIPTION

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS) has the following immobilizer functions:
- Engine immobilizer shows high anti-theft performance to prevent engine from starting by other than the owner.
- Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft performance to prevent key from being copied or stolen.
- Therefore, NVIS/NATS warns outsiders that the vehicle is equipped with the anti-theft system. Refer to SEC20, "System Description".
- If system detects malfunction, security indicator illuminates when ignition switch is turned to ON position.
- If the owner requires, ignition key ID or mechanical key ID can be registered for up to 5 keys.

PRECAUTIONS FOR KEY REGISTRATION

- The key registration is a procedure that erases the current NVIS/NATS ID once, and then re-registers a new
ID. Therefore the registered Intelligent Key is necessary for this procedure. Before starting the registration operation collect all registered Intelligent Keys from the customer.
- The NVIS/NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in mechanical key) to BCM.
The Intelligent Key ID registration is the procedure that registers the ID to Intelligent Key unit.
- When performing the Intelligent Key system registration only, the engine cannot be started by inserting the key into the key cylinder. When performing the NVIS/NATS registration only, the engine cannot be started by using the mechanical key.

SECURITY INDICATOR

- Warns that the vehicle is equipped with NVIS/NATS.
- The security indicator lamp always blinks, when the ignition switch is in the except ON position.
- The security indicator lamp turns OFF, when the ignition switch is in ON position.
- When NVIS/NATS detects trouble, the security indicator lamp lights up while ignition key is in the "ON" position.

MAINTENANCE INFORMATION


CAUTION:
- During trouble diagnosis or when the following parts have been replaced with a used parts, and if mechanical key is added, registration* is required. A new part (except Intelligent Key and mechanical key) should register automatically after the ignition switch is turned ON. New one means a virgin control unit that has never been energized on-board
*
: All keys kept by the owner of the vehicle should be registered with mechanical key.
- ECM
- BCM
- Mechanical key
- Intelligent Key unit
- Steering lock unit
- NVIS/NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be carried out using CONSULT hardware and SECURITY CARD.
When NVIS/NATS initialization has been completed, the ID of the inserted Intelligent Key or mechanical key IDs can be carried out.
- Possible symptom of NVIS/NATS malfunction is "Engine cannot start". The engine can be started with the Intelligent Key system and NVIS/NATS. Identify the possible causes according to "Work
Flow", With Intelligent Key System.
- If ECM other than Genuine NISSAN is installed, the engine cannot be started.
