Without Intelligent Key System

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

System Description

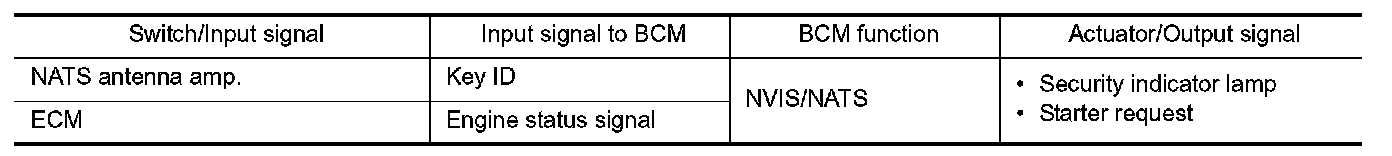

INPUT/OUTPUT SIGNAL CHART

BCM






SYSTEM DESCRIPTION

NVIS (Nissan Vehicle Immobilizer System-NATS) has the following immobilizer functions:
- Engine immobilizer shows high anti-theft performance to prevent engine start by other than the owner.
- Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft performance to prevent key from being copied or stolen.
- Therefore, NVIS/NATS warns outsiders that the vehicle is equipped with the anti-theft system. Refer to SEC134, "System Description".
- If system detects malfunction, security indicator illuminate when ignition switch is turned to ON position.
- If the owner requires, ignition key ID can be registered for up to 5 keys.
- During trouble diagnosis or when the following parts have been replaced, and if ignition key is added, registration* is required.
*1
: All keys kept by the owner of the vehicle should be registered with ignition key.
- ECM
- BCM
- Ignition key
- EPS control unit
- IPDM E/R
- Combination meter
- NVIS/NATS trouble diagnosis, system initialization and additional registration of other Ignition key IDs must be carried out using CONSULT hardware and SECURITY CARD.
When NVIS/NATS initialization has been completed, the ID of the inserted ignition key or ignition key IDs can be carried out.
- Possible symptom of NVIS/NATS malfunction is "Engine cannot start". The engine can be started with the
NVIS/NATS. Identify the possible causes according to "Work Flow". Without Intelligent Key System.
- If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement procedure, With Intelligent Key System.

PRECAUTIONS FOR KEY REGISTRATION

- The key registration is a procedure that erases the current NVIS/NATS ID once, and then re-registers a new
ID. Therefore the registered ignition key is necessary for this procedure. Before starting the registration operation collect all registered ignition keys from the customer
- The NVIS/NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in ignition key) to BCM.

SECURITY INDICATOR LAMP

- Warns that the vehicle is equipped with NVIS/NATS.
- The security indicator lamp always blinks, when the ignition switch is in the except ON position.
- The security indicator turns OFF, when the ignition switch is in ON position.
- When NVIS/NATS detects trouble, the security indicator lamp lights up while ignition key is in the "ON" position.

MAINTENANCE INFORMATION


CAUTION:
- During trouble diagnosis or when the following parts have been replaced with a used parts, and if ignition key is added, registration* is required. A new part (except ignition key) should register automatically after the ignition switch is turned ON. New one means a virgin control unit that has never been energized on-board
*
: All keys kept by the owner of the vehicle should be registered with ignition key.
- ECM
- BCM
- Ignition key
- NVIS/NATS trouble diagnosis, system initialization and additional registration of other ignition key
IDs must be carried out using CONSULT hardware and SECURITY CARD.
When NVIS/NATS initialization has been completed, the ID of the inserted ignition key IDs can be carried out.
- If ECM other than Genuine NISSAN is installed, the engine cannot be started.
