Remote Keyless Entry System

REMOTE KEYLESS ENTRY SYSTEM

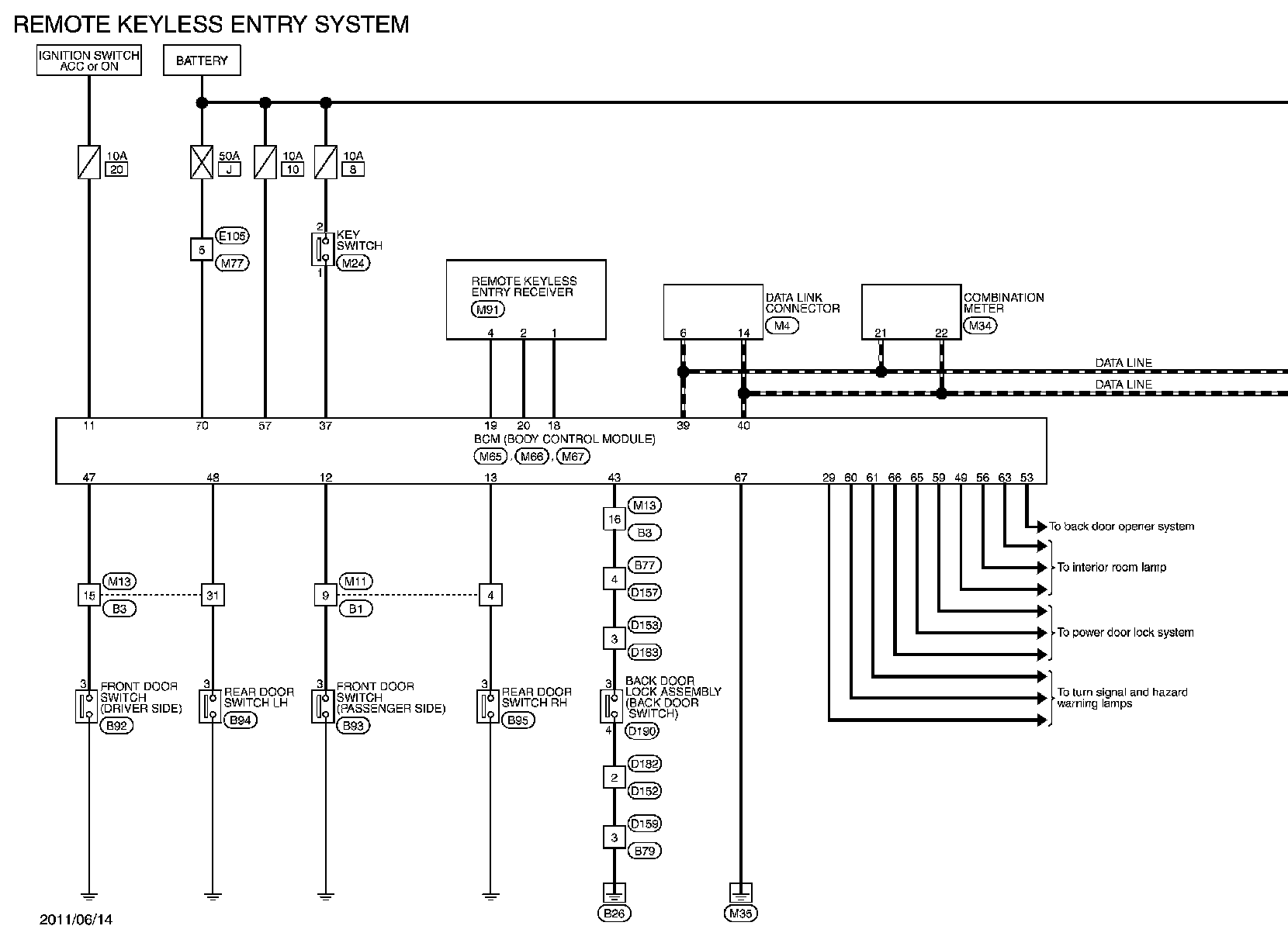

Wiring Diagram - REMOTE KEYLESS ENTRY SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
