Keyless Entry Receiver: Service and Repair

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation


REMOVAL

1.Remove the glove box. Removal And Installation.

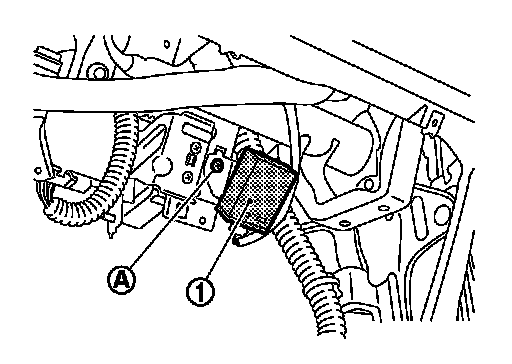

2.Remove the remote keyless entry receiver mounting bolt (A), and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.
