Component Function Check

OUTSIDE KEY ANTENNA

REAR BUMPER : Component Function Check


1. CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL

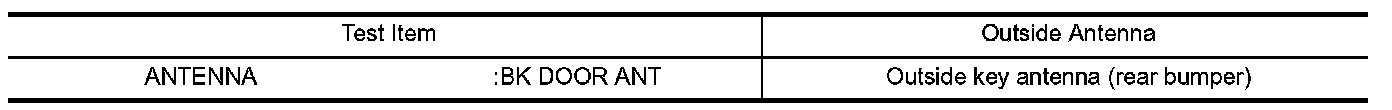

1.Check "ANTENNA" in "Active Test" mode with CONSULT.
2.Touch "BK DOOR ANT".
3.When Intelligent Key is in outside key antenna (rear bumper) detection area, LED (on Intelligent Key) blinks.





Is the inspection result normal?
YES- Outside key antenna (rear bumper) is OK.
NO- Diagnosis Procedure.
