Component Function Check

INSIDE KEY ANTENNA

INSTRUMENT CENTER : Component Function Check


1. CHECK INSIDE KEY ANTENNA INPUT SIGNAL

With CONSULT

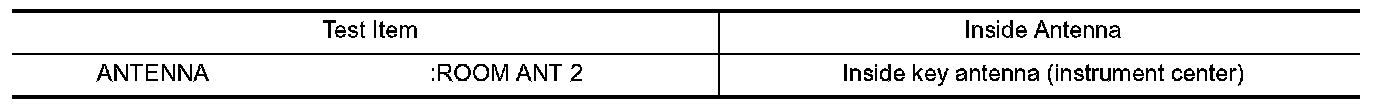

1.Check "ANTENNA" in "Active Test" mode with CONSULT.
2.Touch "ROOM ANT 2".
3.When Intelligent Key is in inside key antenna (instrument center) detection area, LED (on Intelligent Key)
blinks.





Is the inspection result normal?
YES- Inside key antenna (instrument center) is OK.
NO- Diagnosis Procedure.
