Without Intelligent Key System
BCM (BODY CONTROL MODULE)
Reference Value

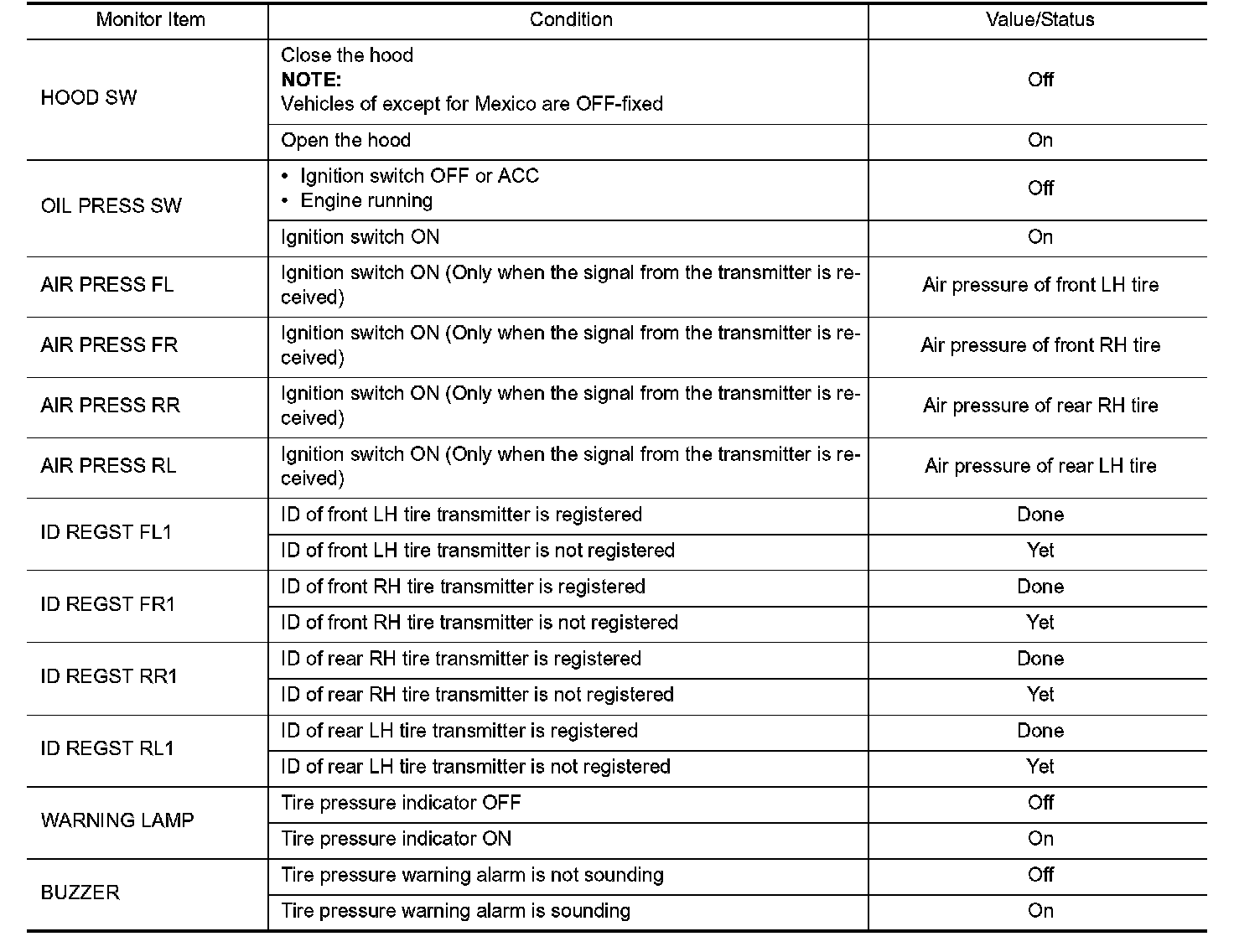

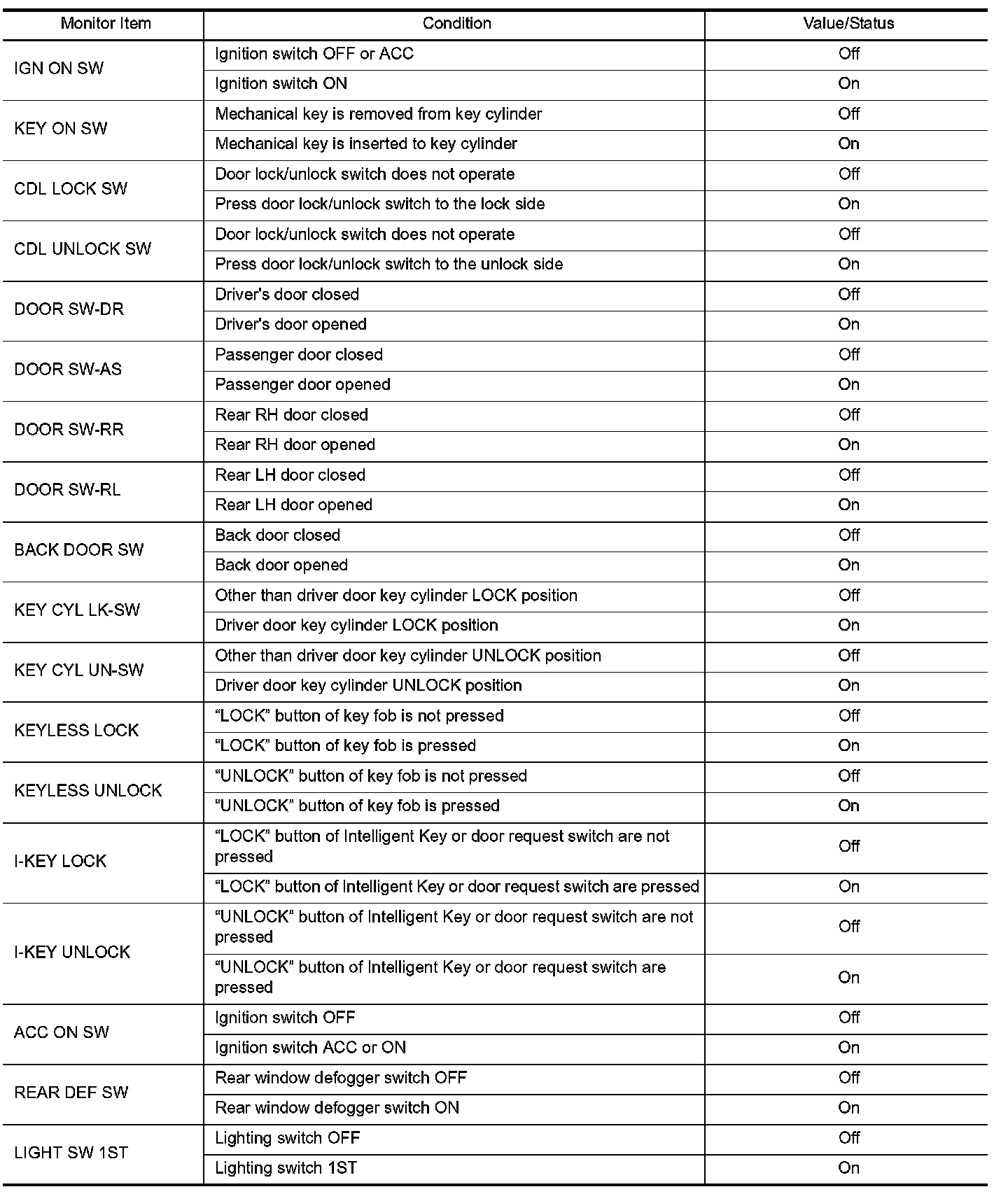

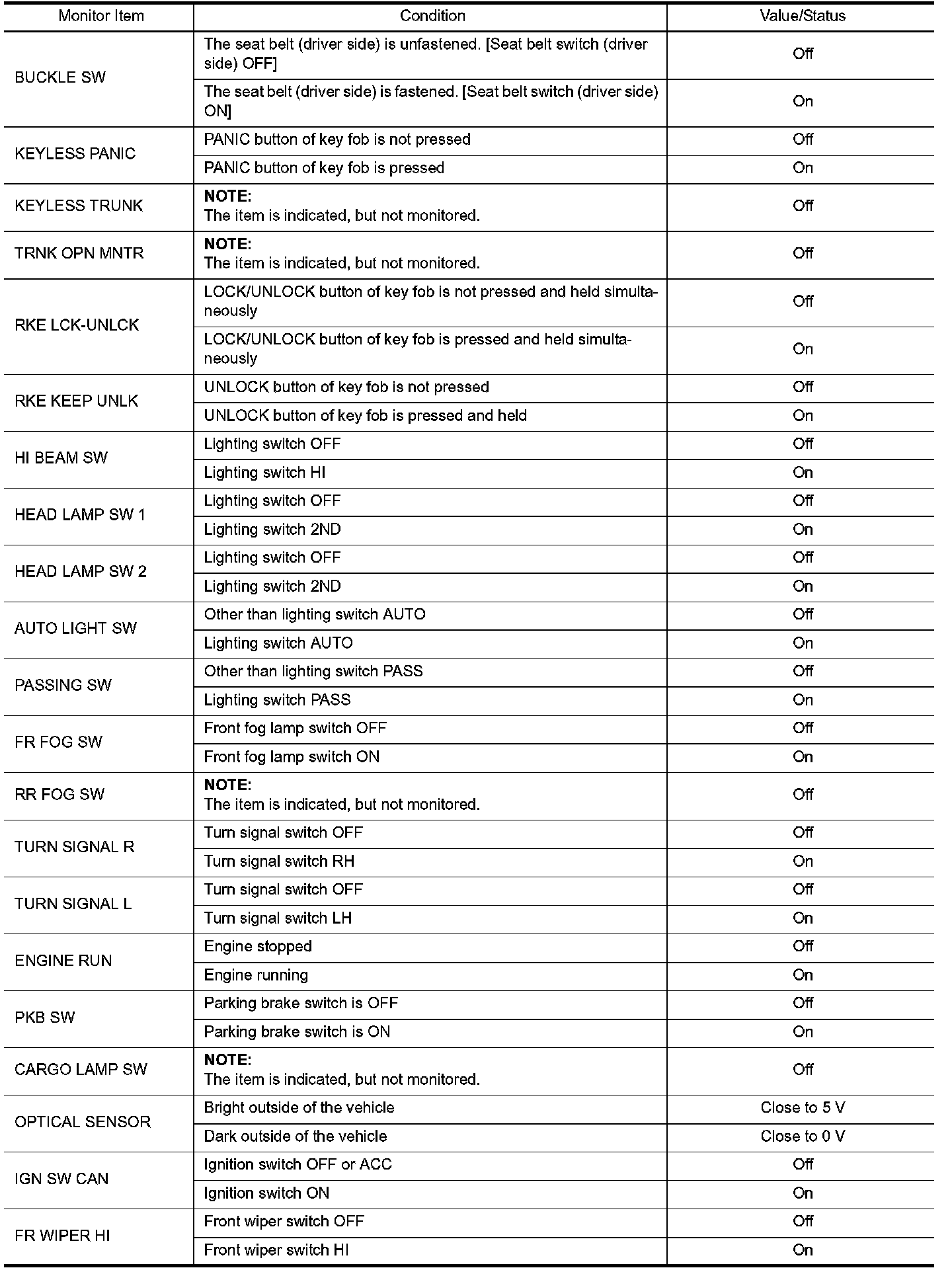

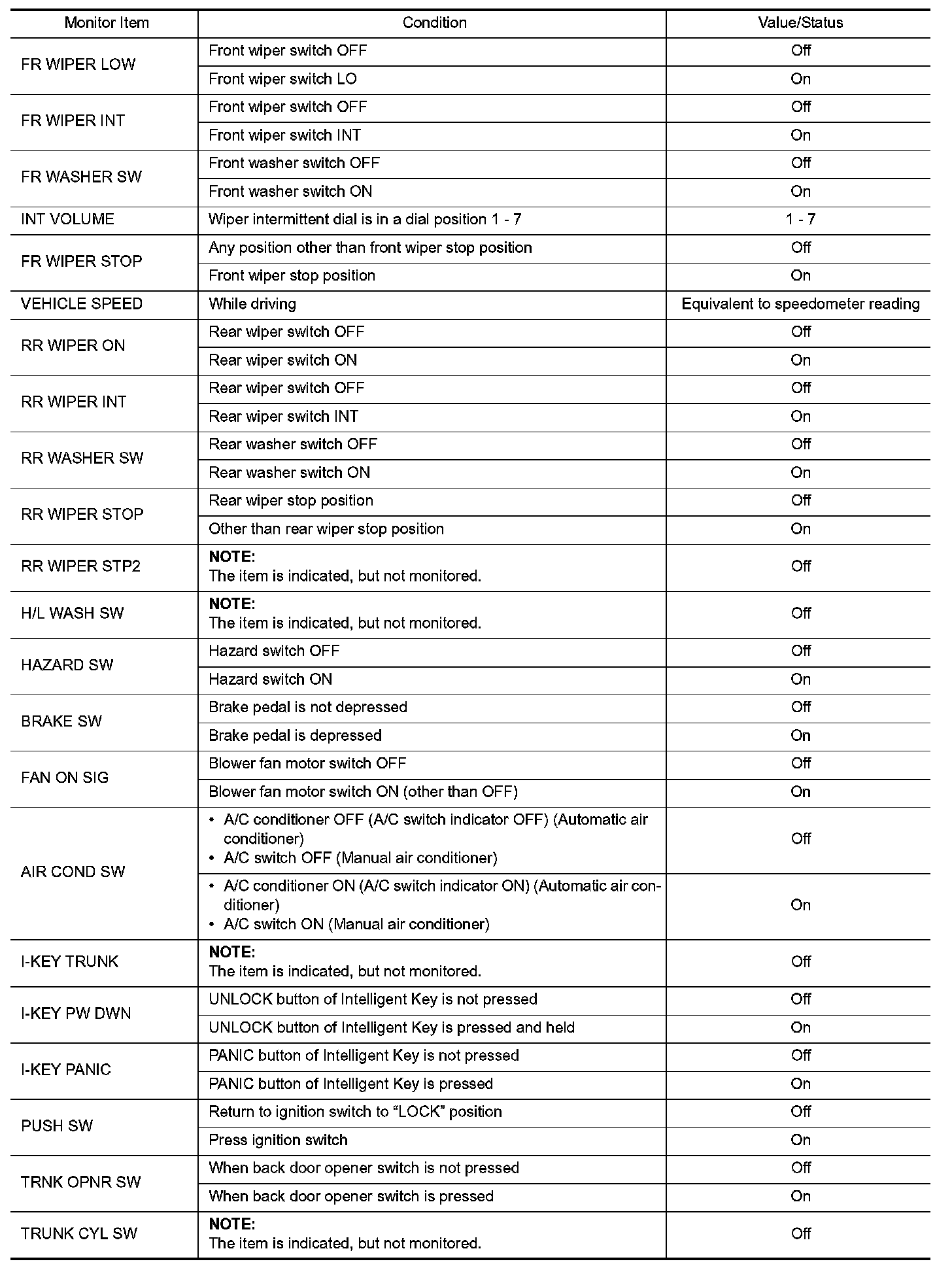

VALUES ON THE DIAGNOSIS TOOL

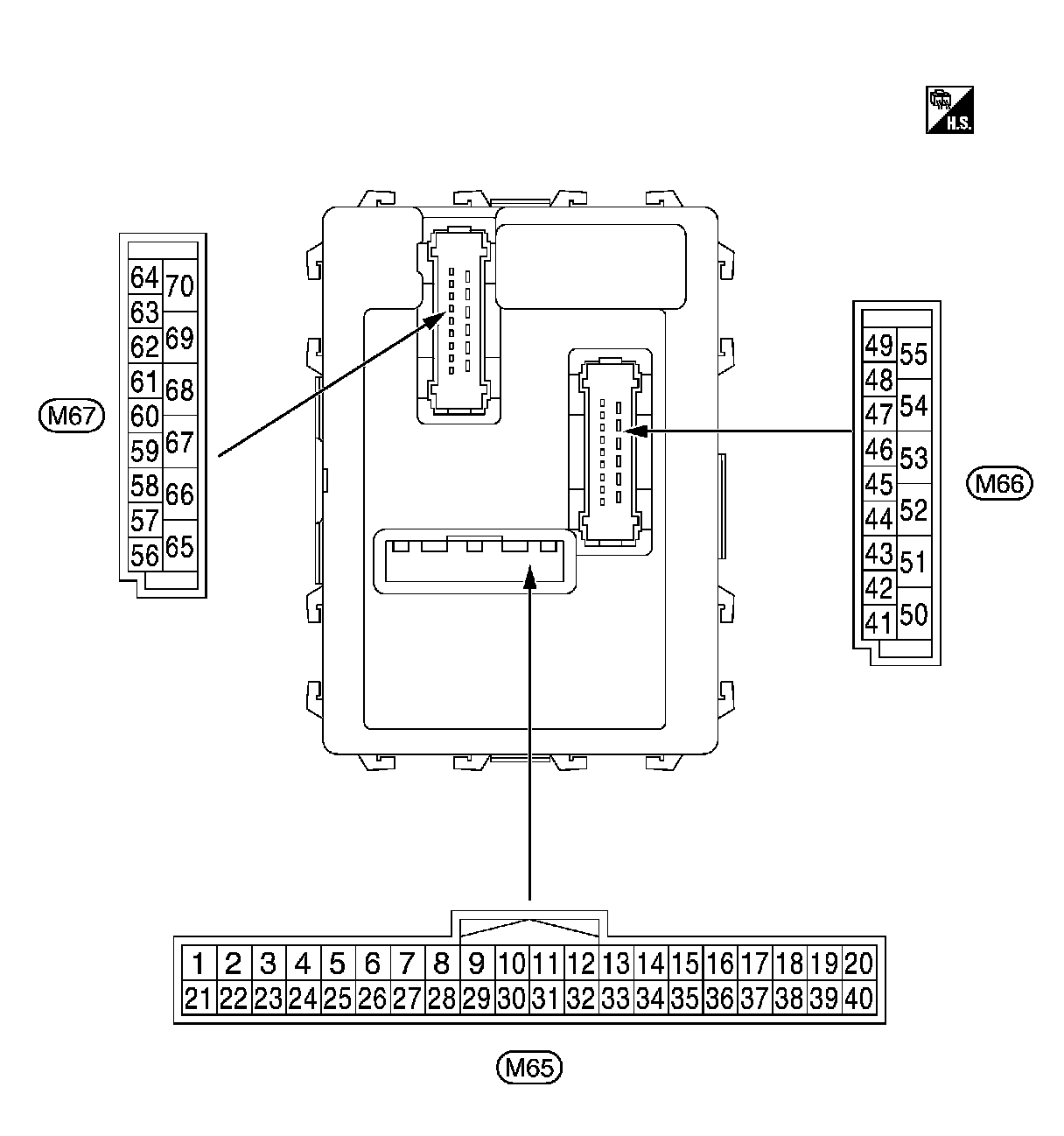

TERMINAL LAYOUT

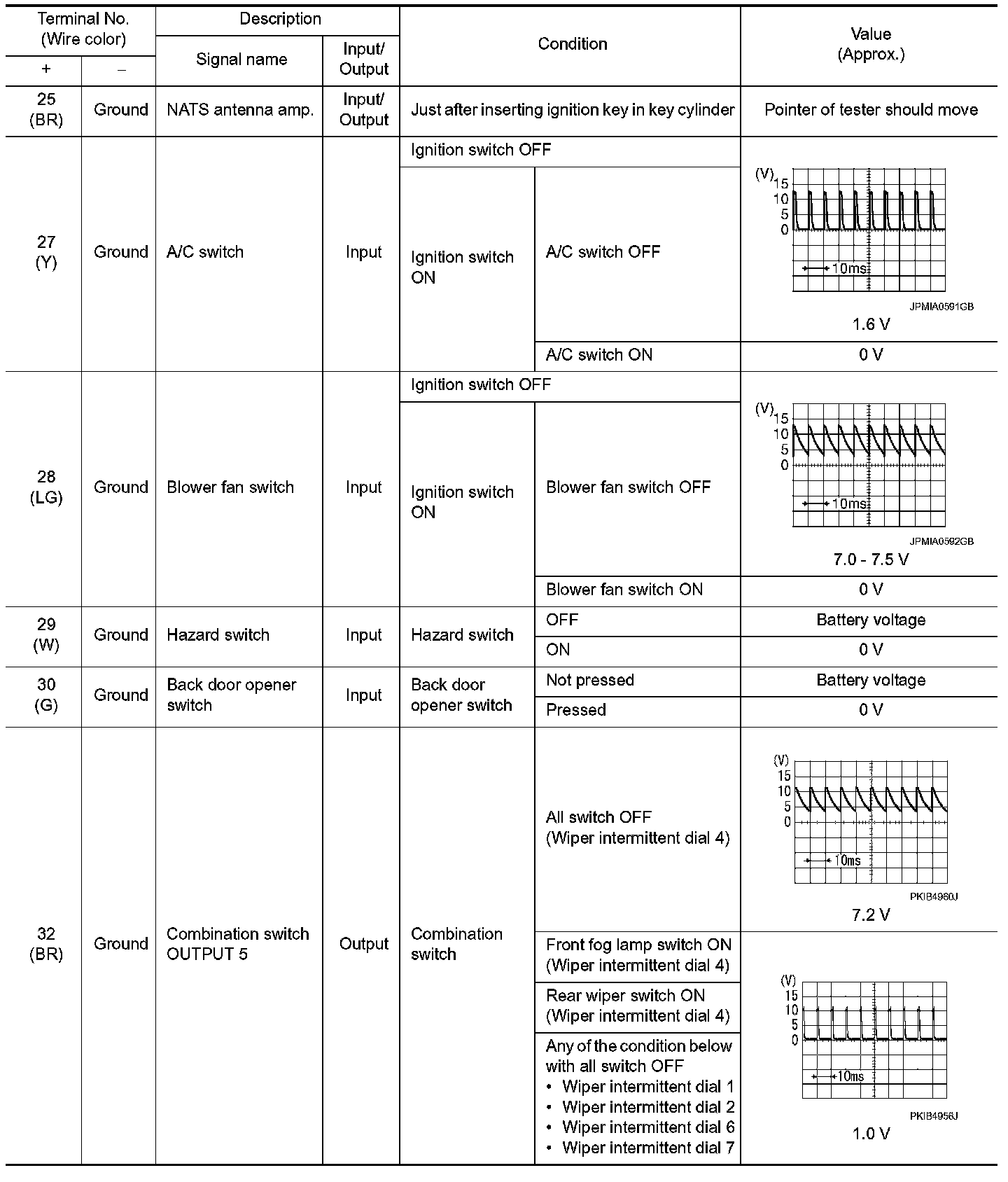

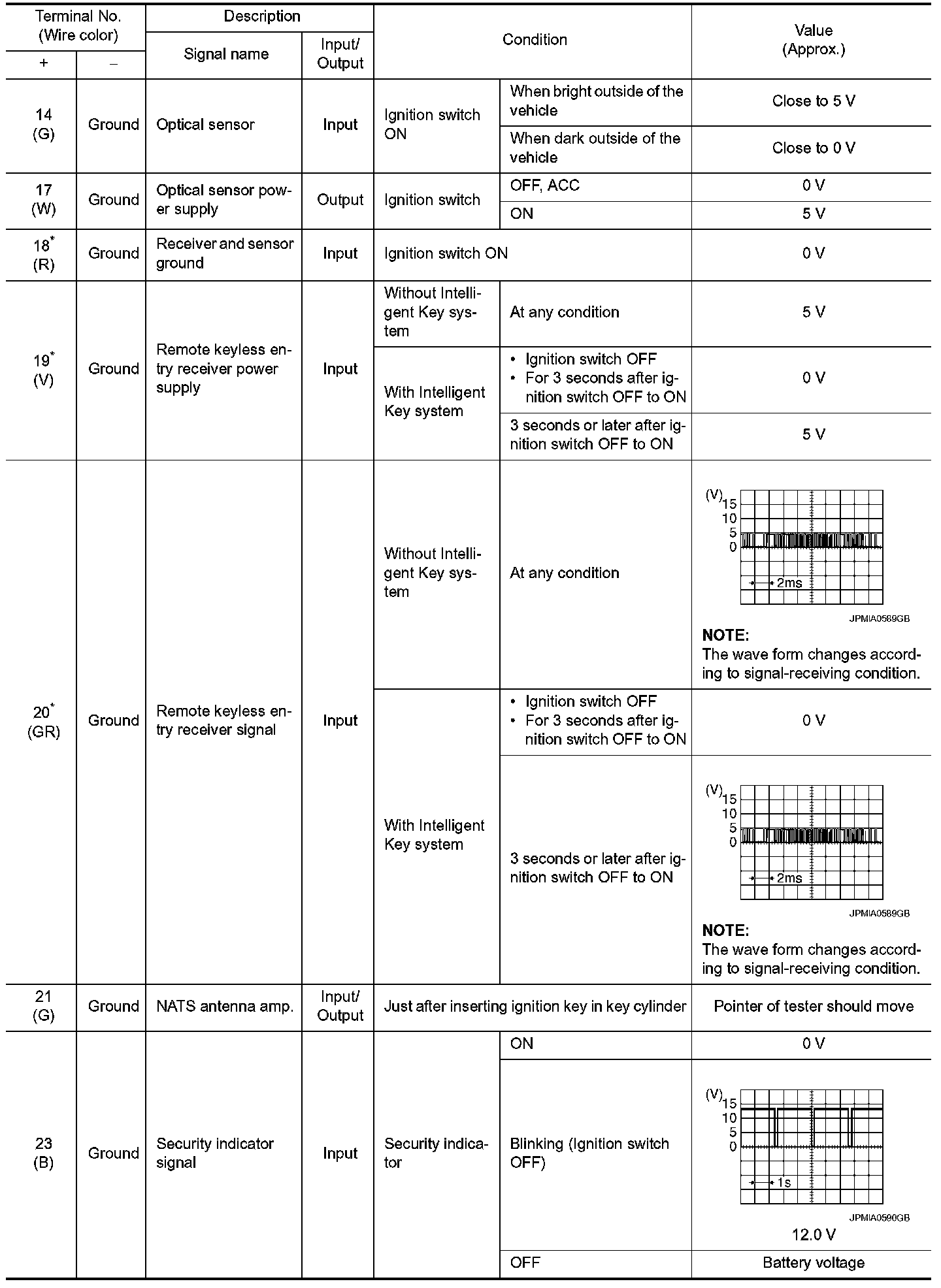

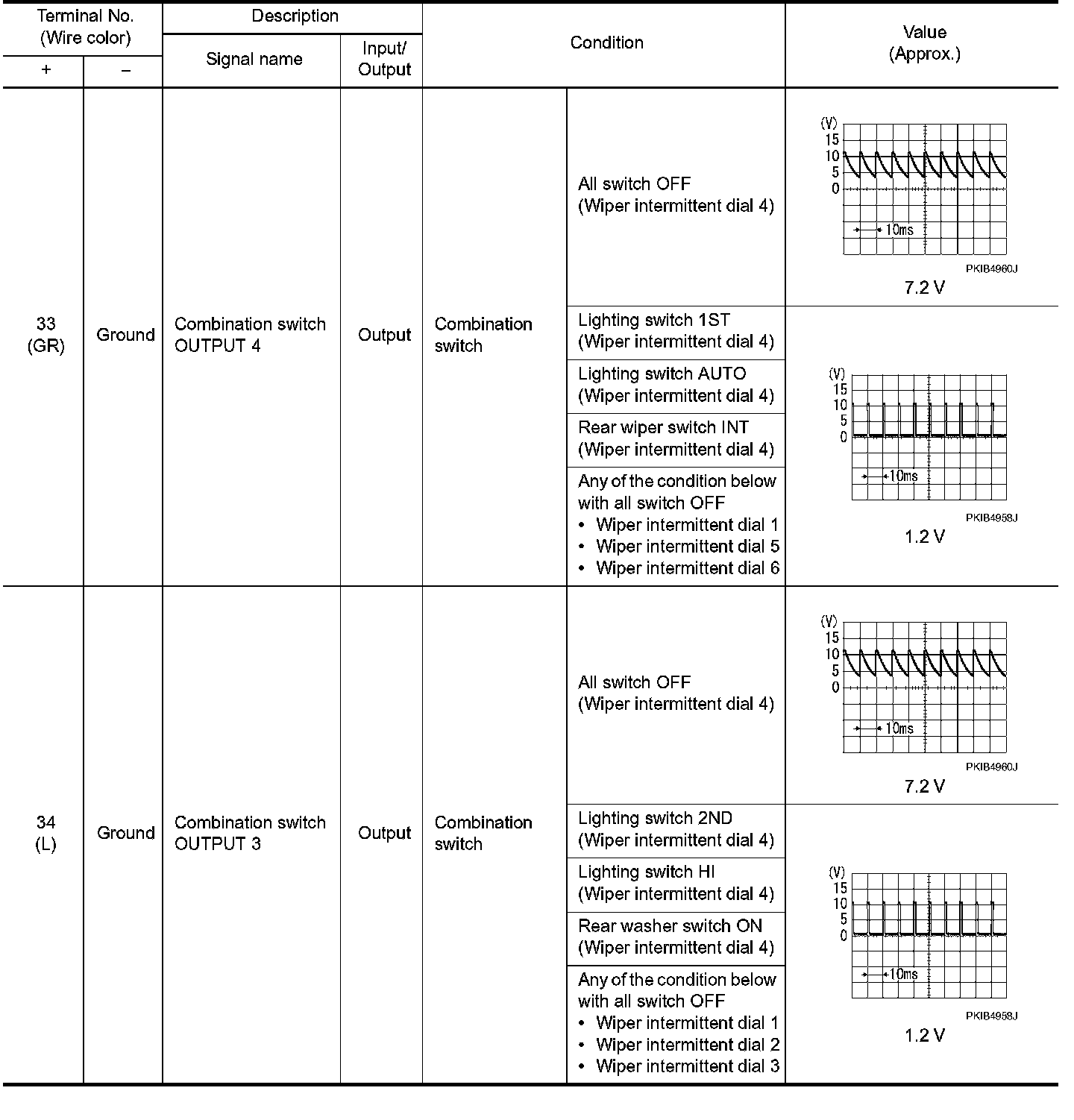

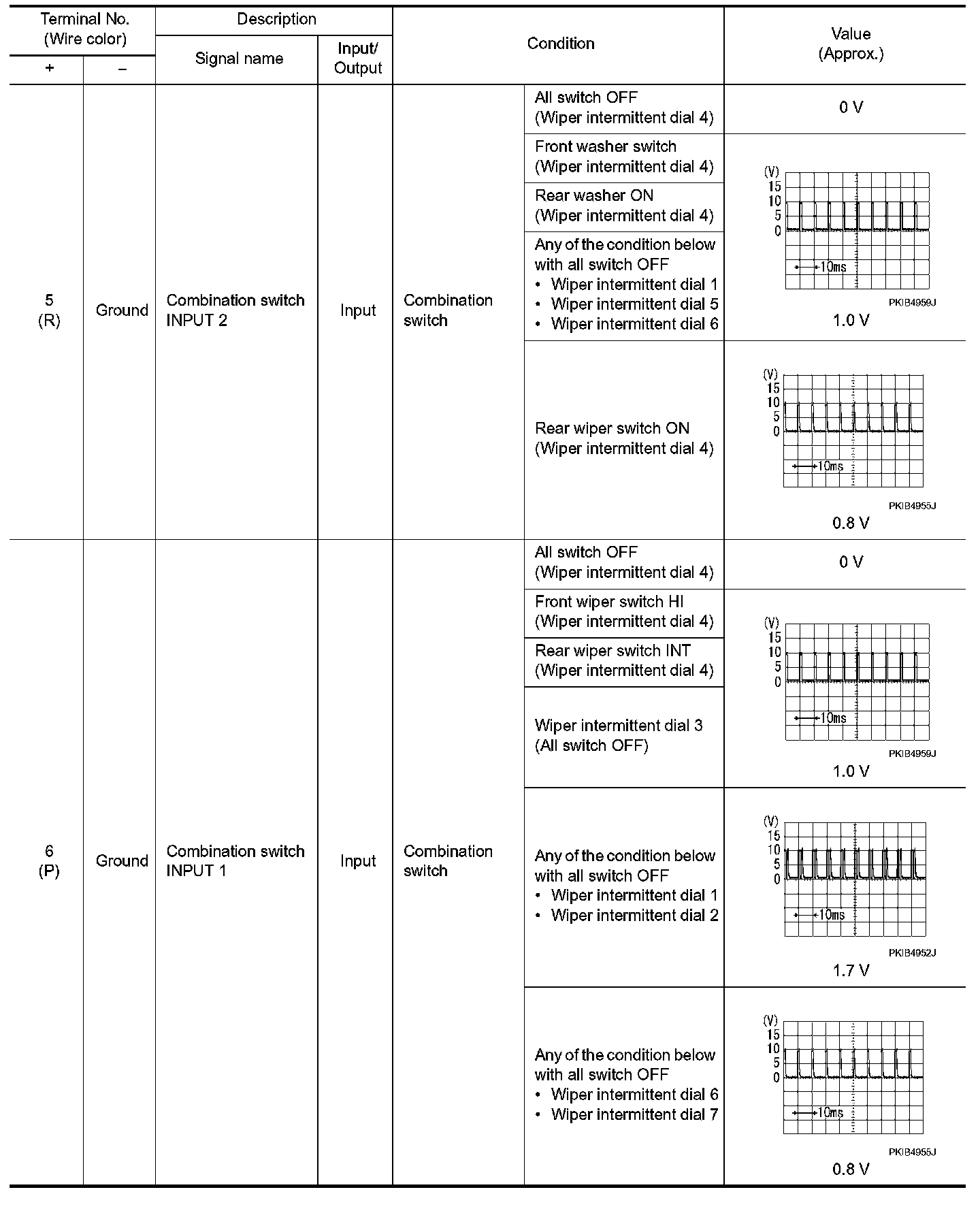

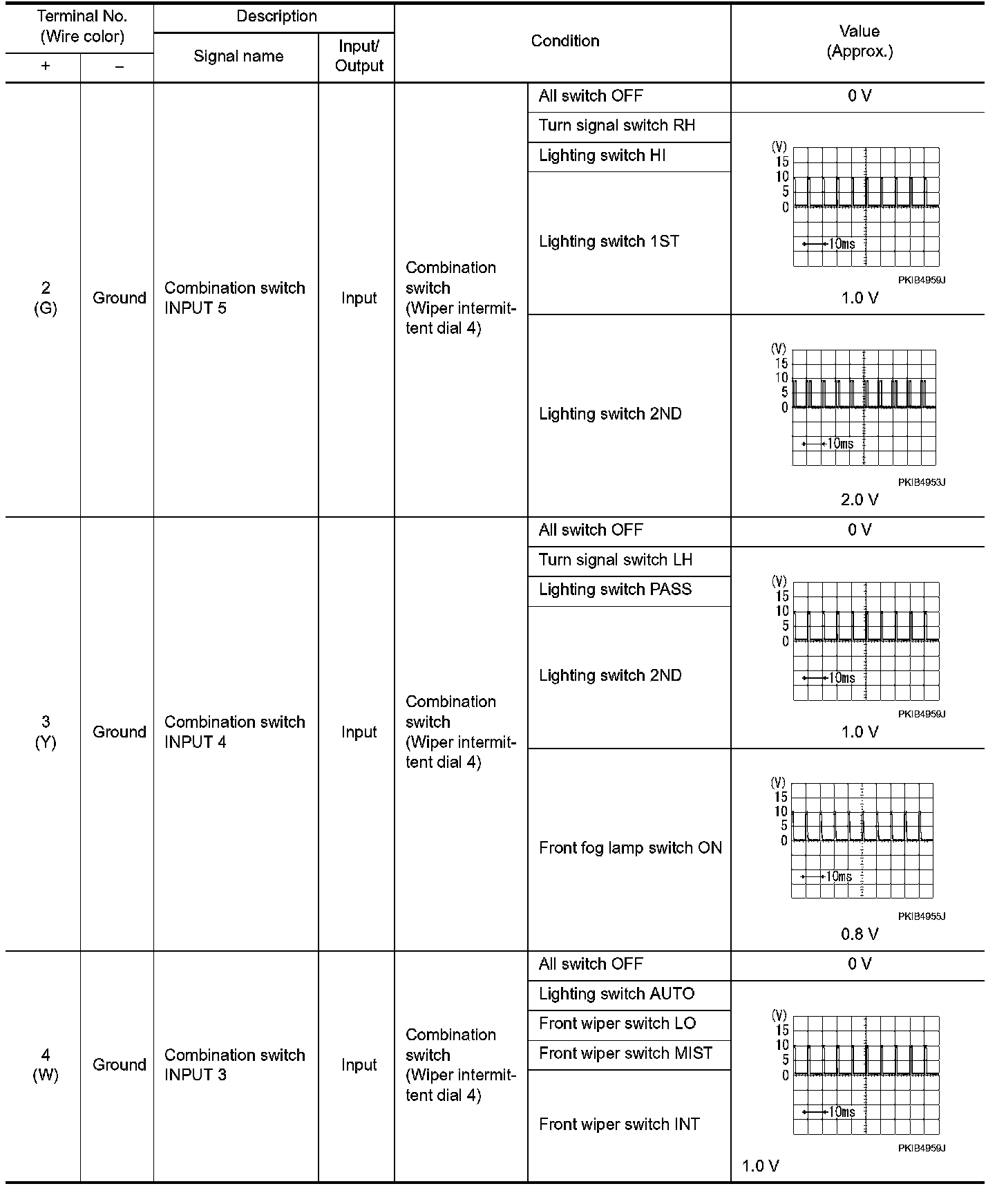

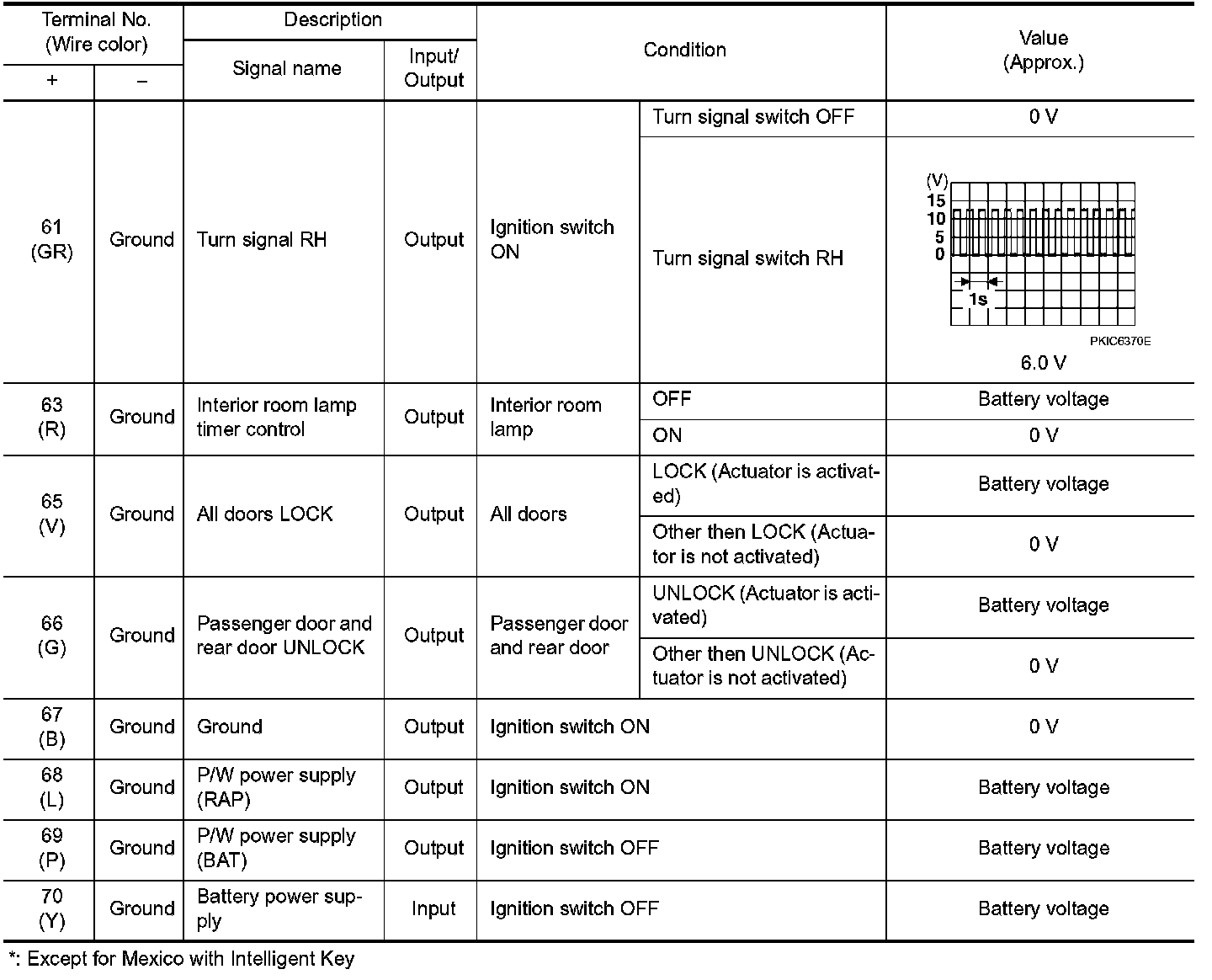

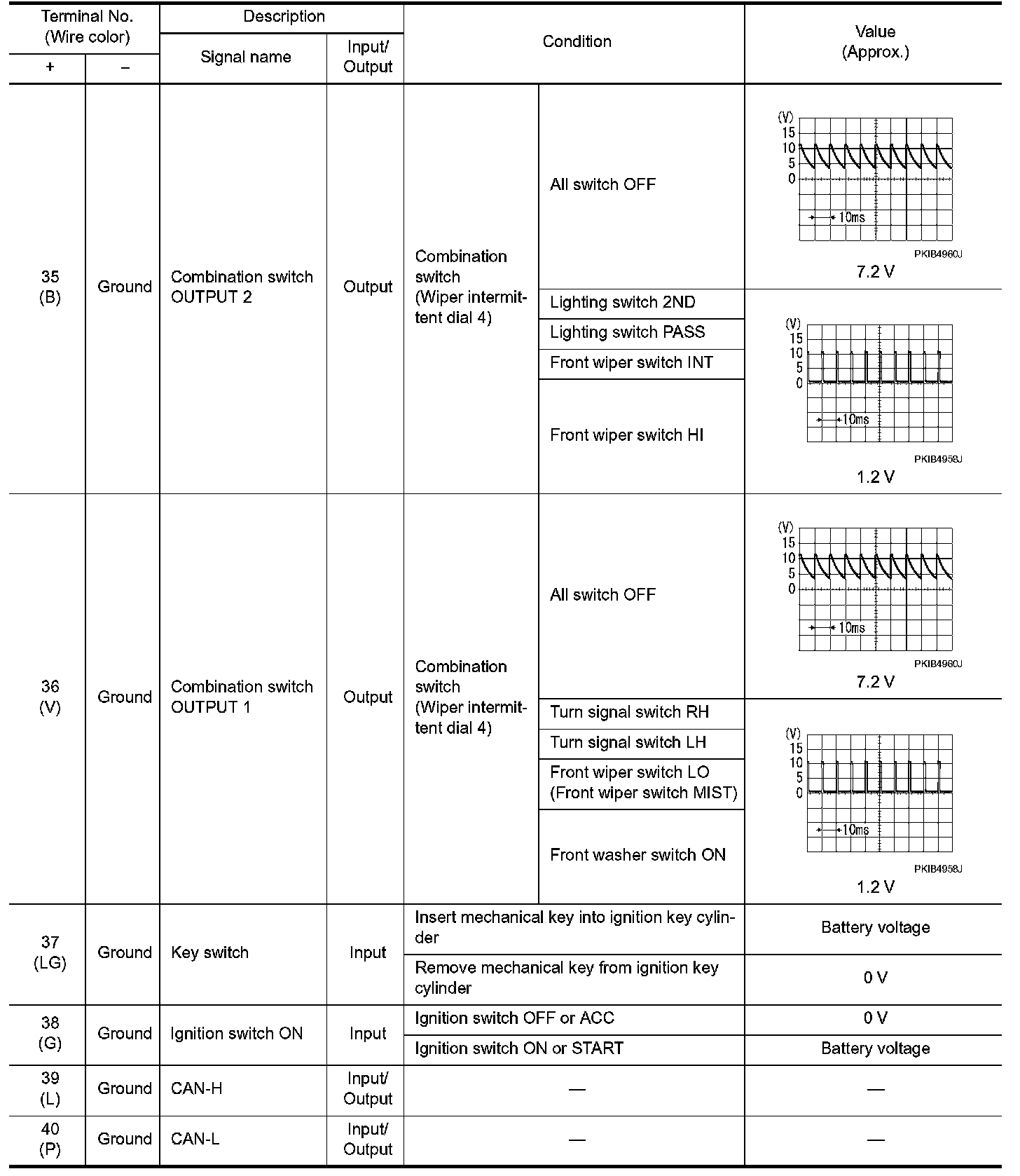

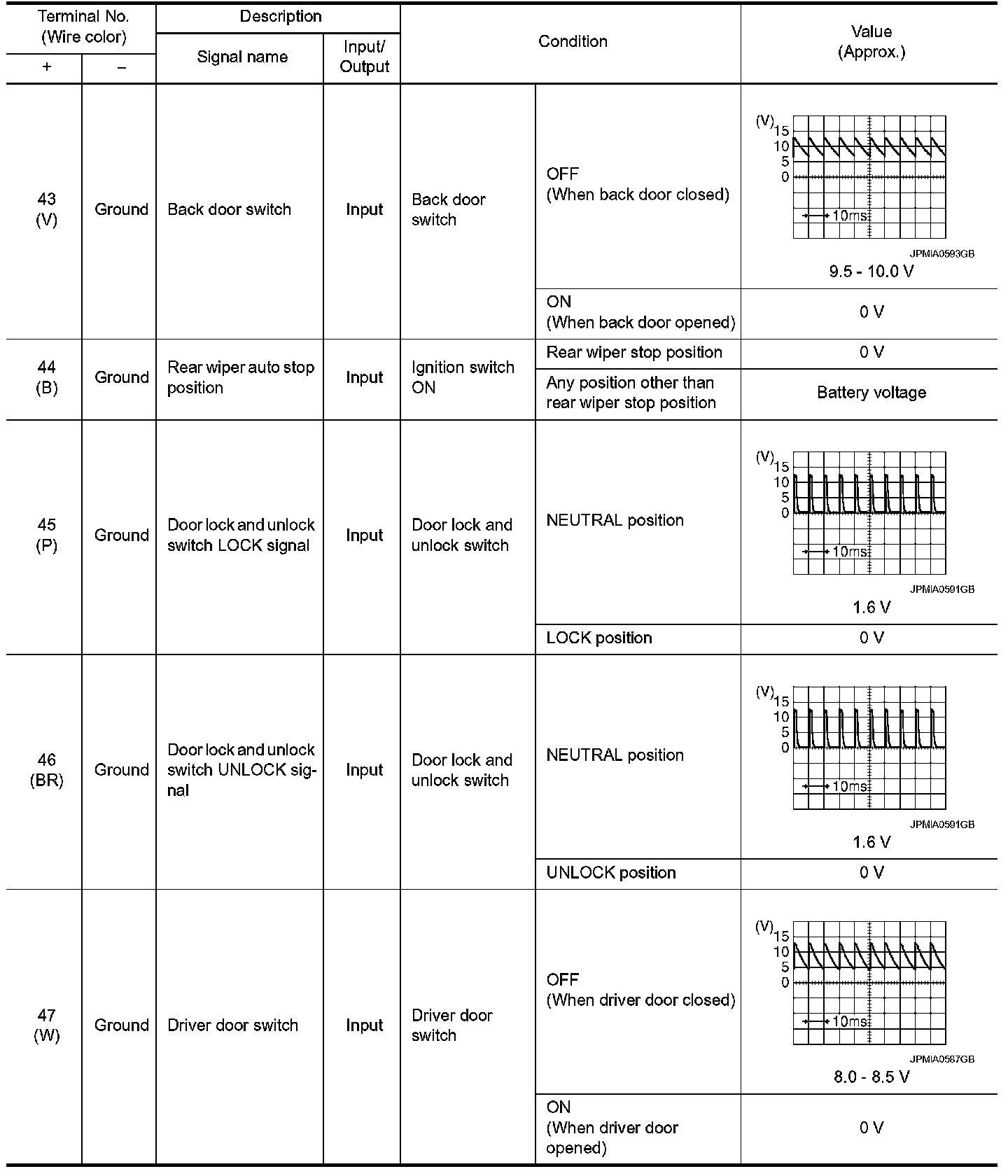

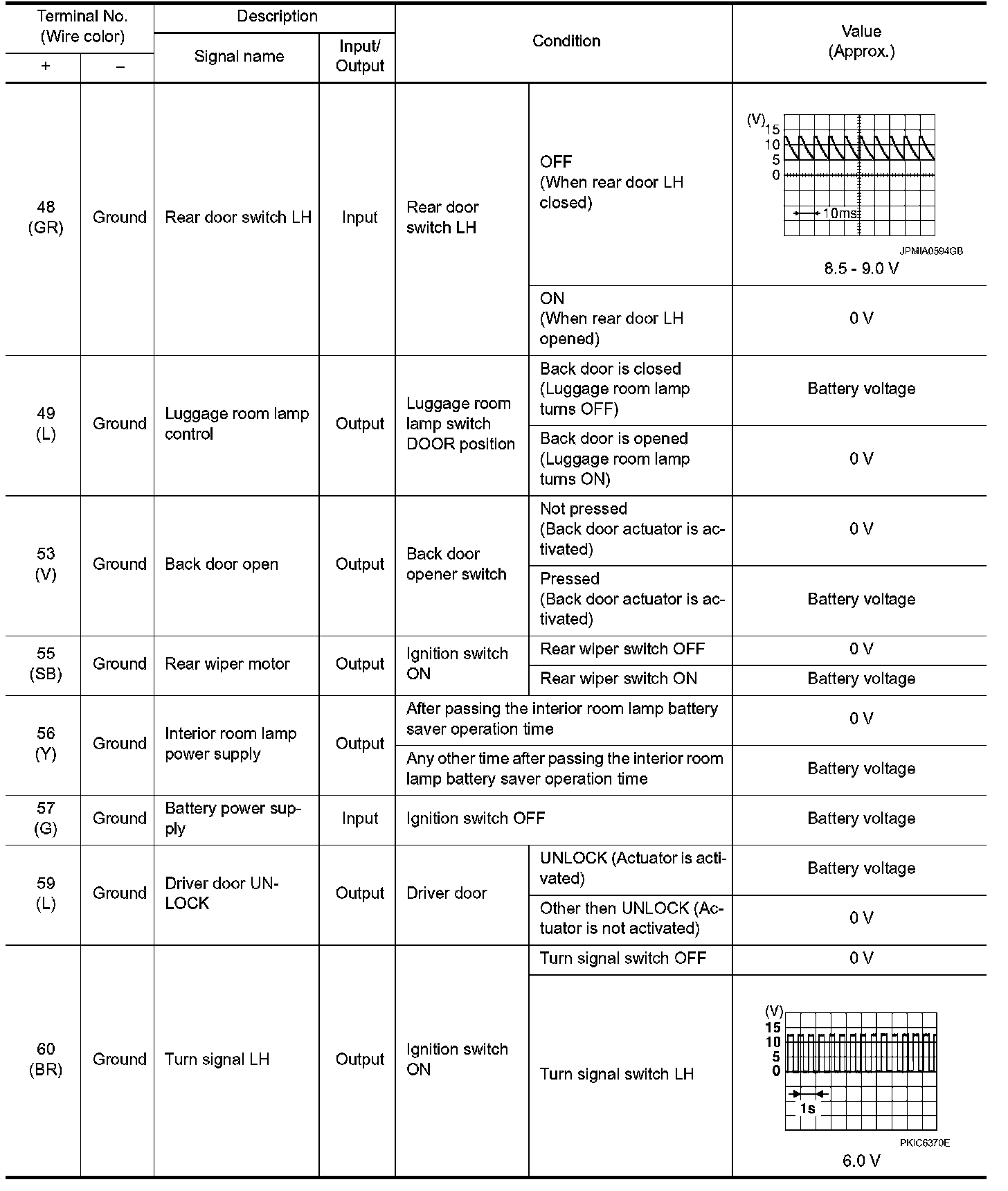

PHYSICAL VALUES
CAUTION:
- Check combination switch system terminal waveform under the loaded condition with lighting switch, turn signal switch and wiper switch OFF is not to be fluctuated by being overloaded.
- Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper intermittent dial position. Wiper intermittent dial position can be confirmed on CONSULT. Refer to BCS26, "COMB SW : CONSULT Function (BCM - COMB SW)".
- BCM reads the status of the combination switch at 10 ms internal normally. System Diagram.
