Tel Adapter Unit Base Audio With Navigation
TEL ADAPTER UNIT
Reference Value

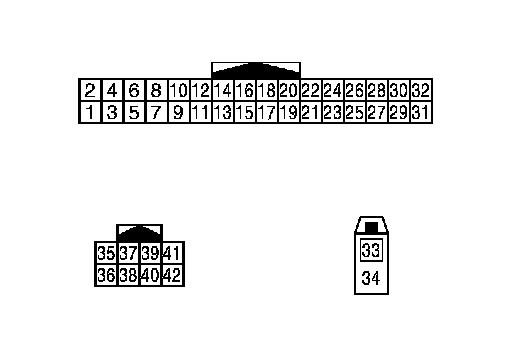

TERMINAL LAYOUT

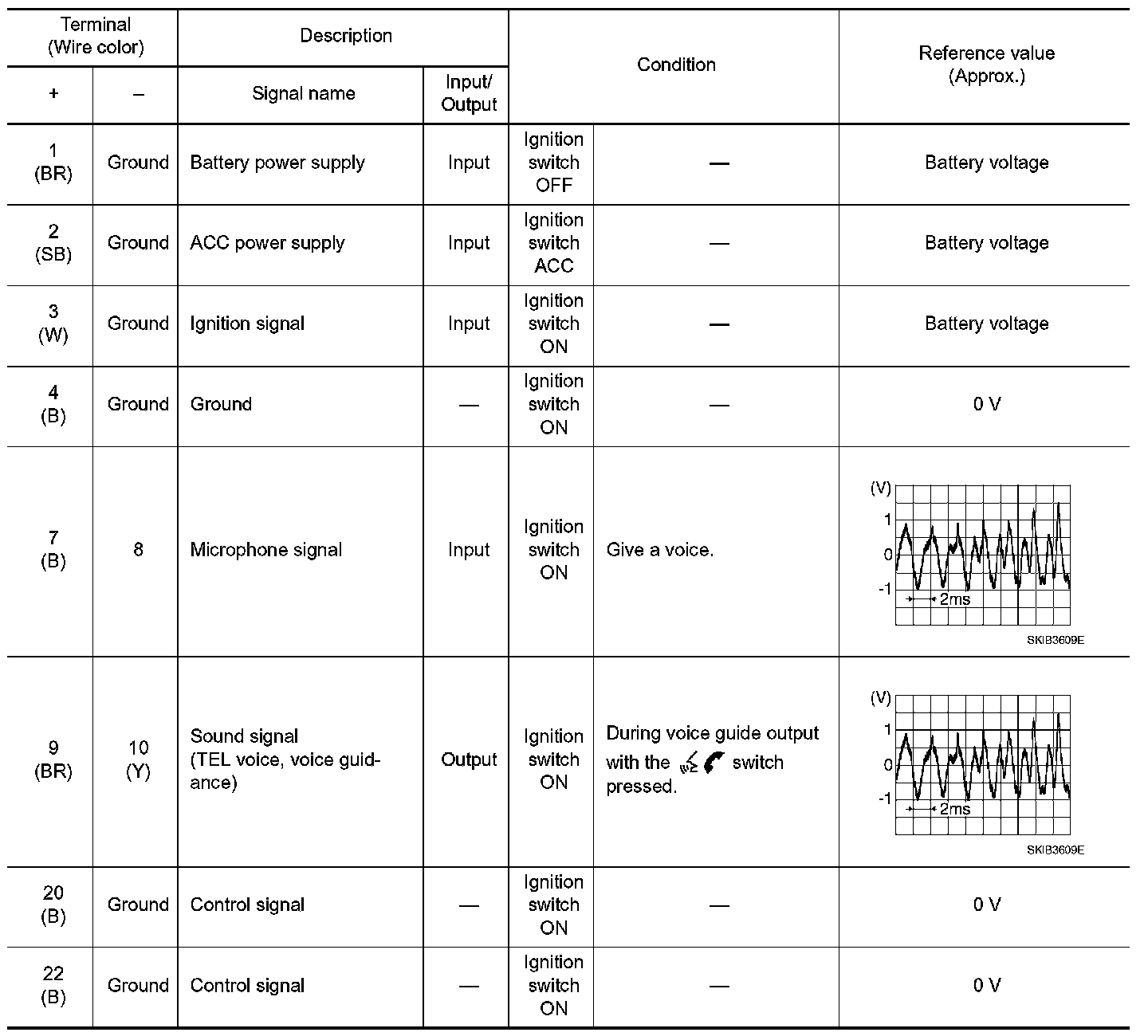

PHYSICAL VALUES
