AROUND VIEW MONITOR CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

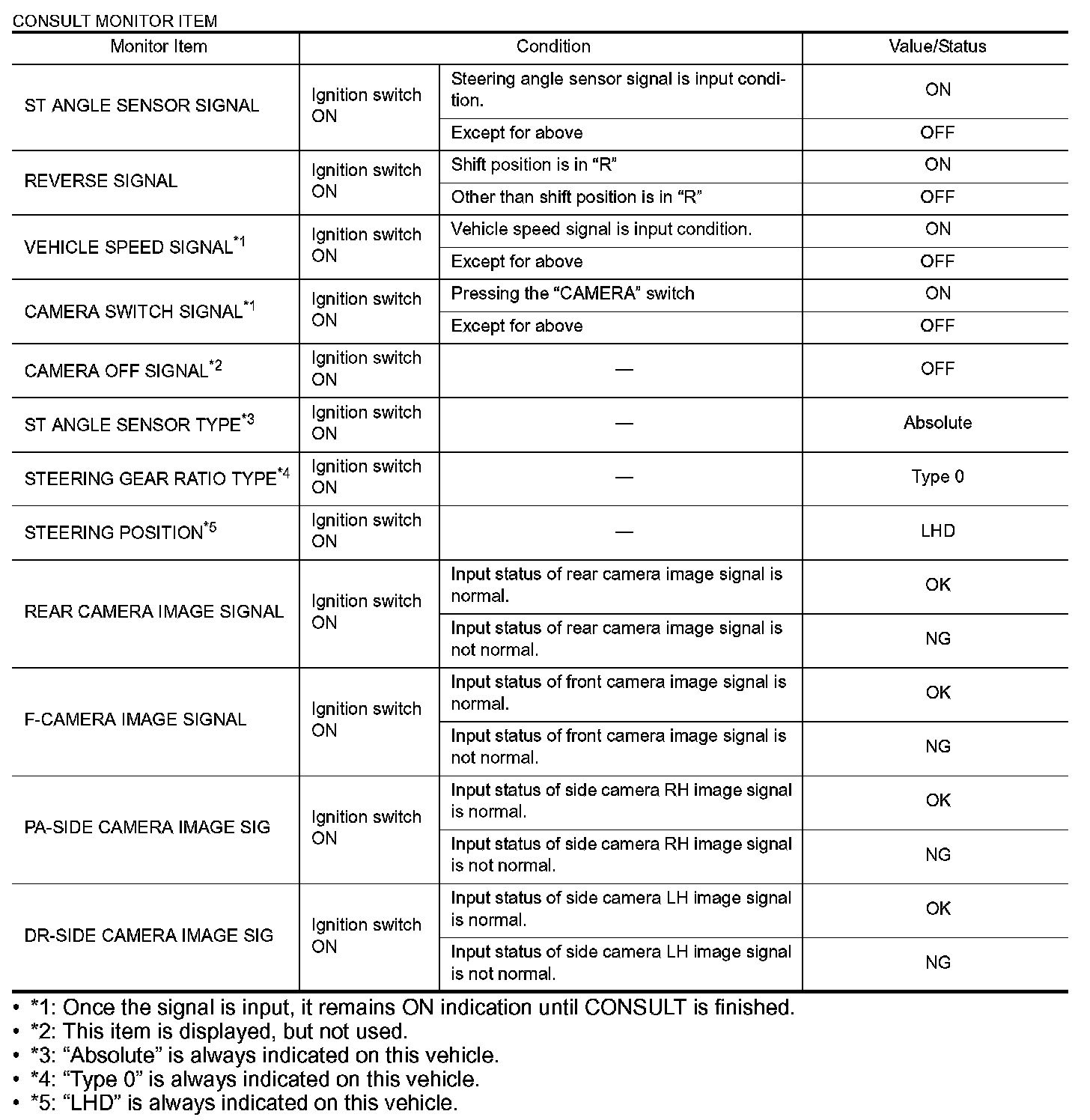

CONSULT MONITOR ITEM





- *1: Once the signal is input, it remains ON indication until CONSULT is finished.
- *2: This item is displayed, but not used.
- *3: "Absolute" is always indicated on this vehicle.
- *4: "Type 0" is always indicated on this vehicle.
- *5: "LHD" is always indicated on this vehicle.

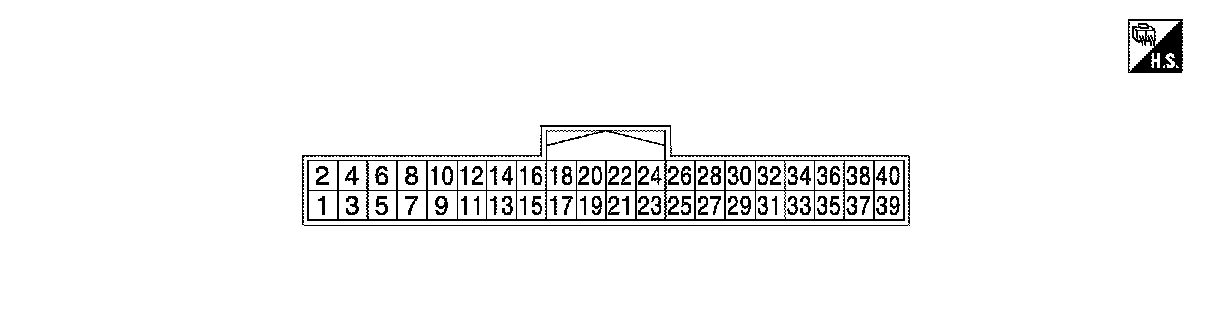

TERMINAL LAYOUT

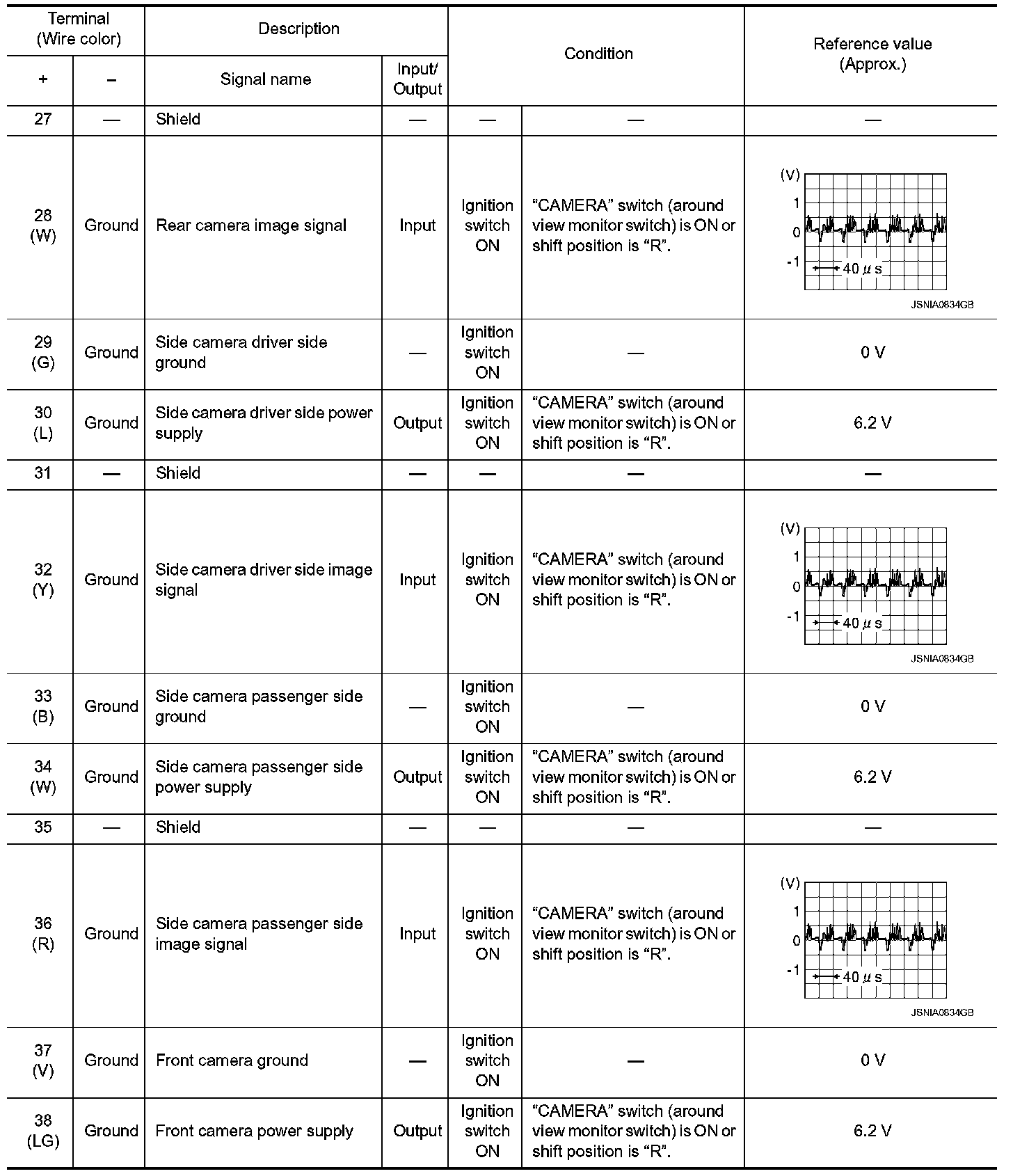

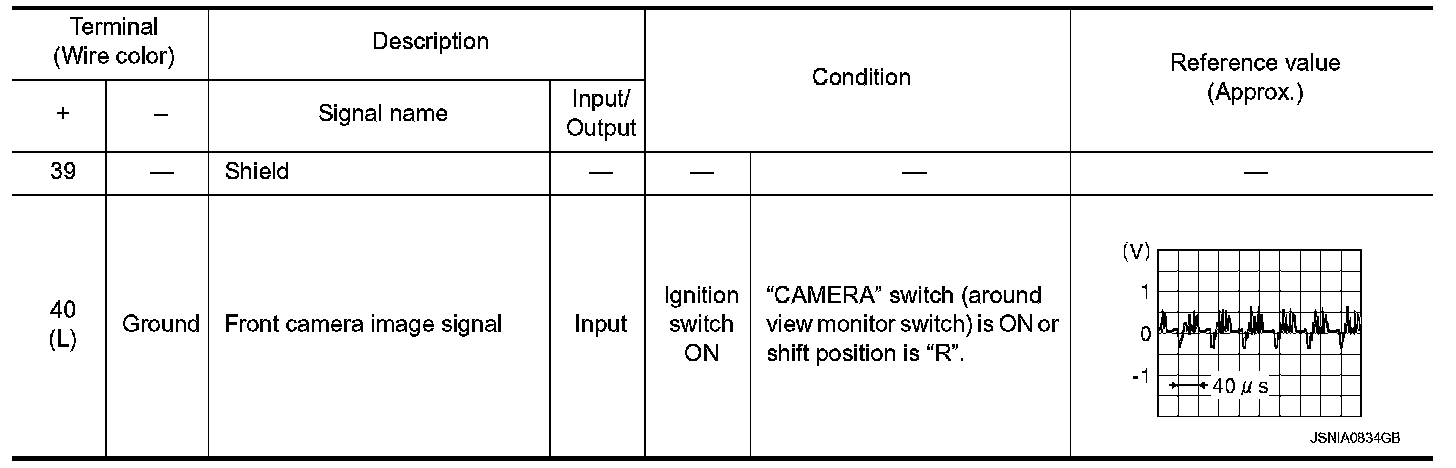

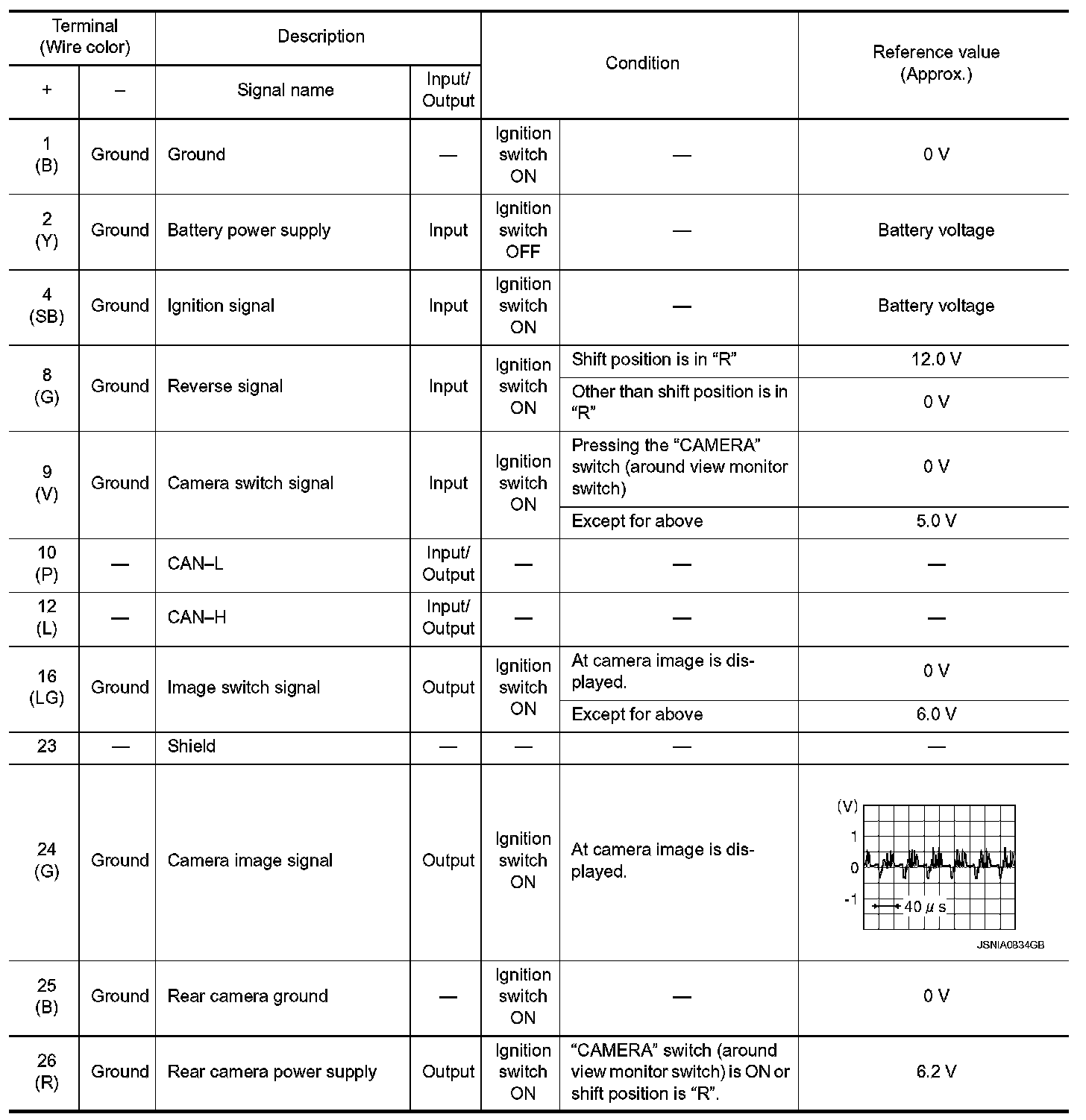

PHYSICAL VALUES
