Sonar Control Unit

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

CONSULT Function


APPLICATION ITEMS

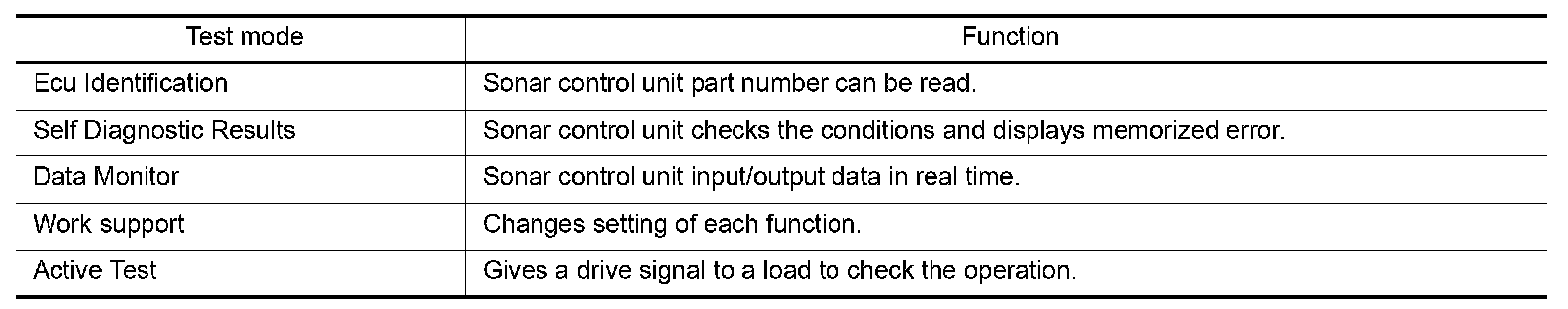

CONSULT can display each diagnostic item using the diagnostic test modes shown as follows:






ECU IDENTIFICATION

Displays the part number of the sonar control unit.

SELF-DIAGNOSTIC RESULTS

For details, Testing and Inspection.

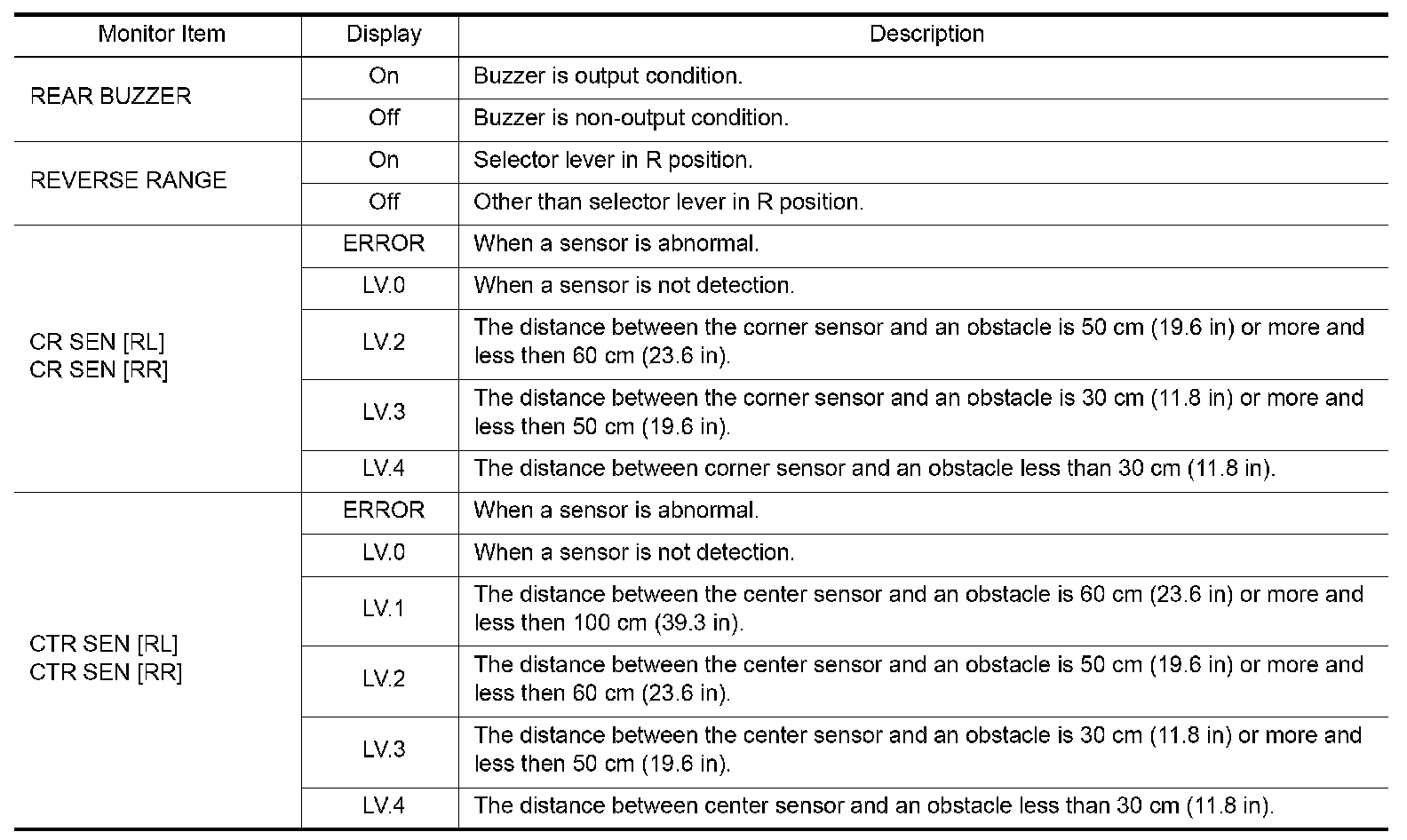

DATA MONITOR







ACTIVE TEST

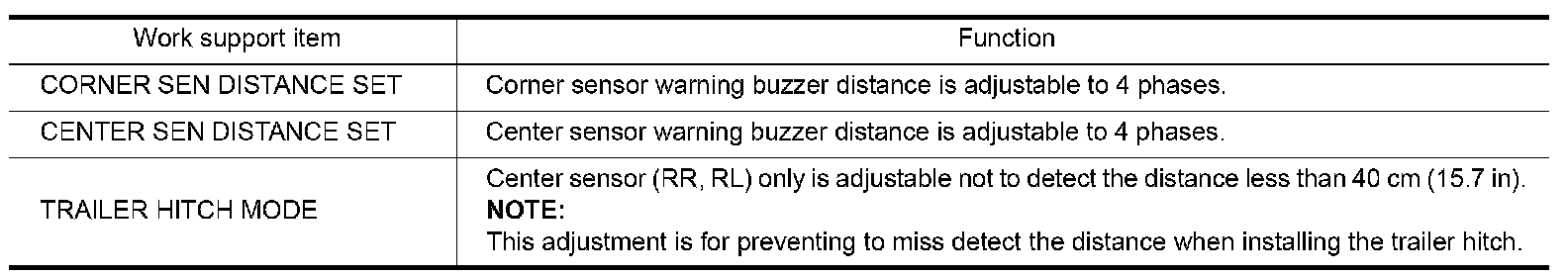

WORK SUPPORT






CORNER SEN DISTANCE SET

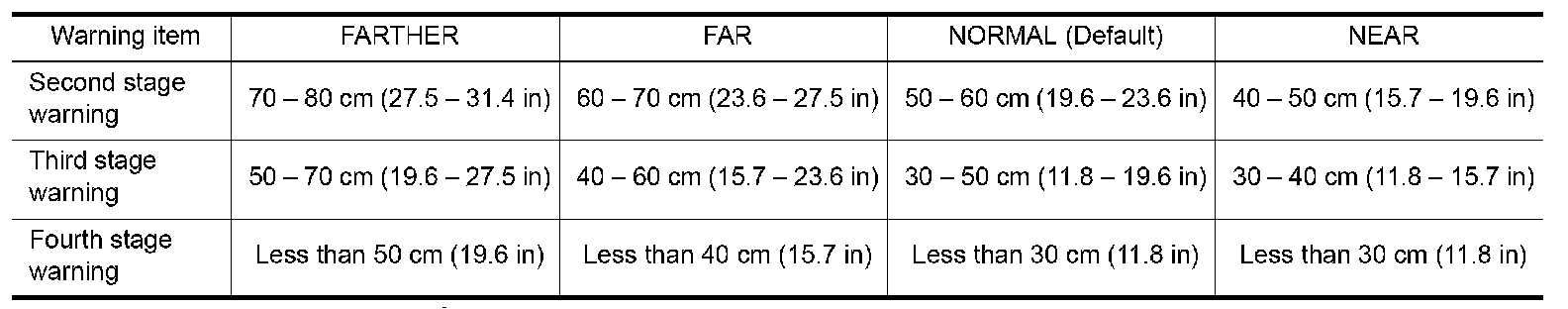

Corner sensor warning buzzer distance can set it to 4 phases as follows.





The default of this model is "NORMAL".
CENTER SEN DISTANCE SET

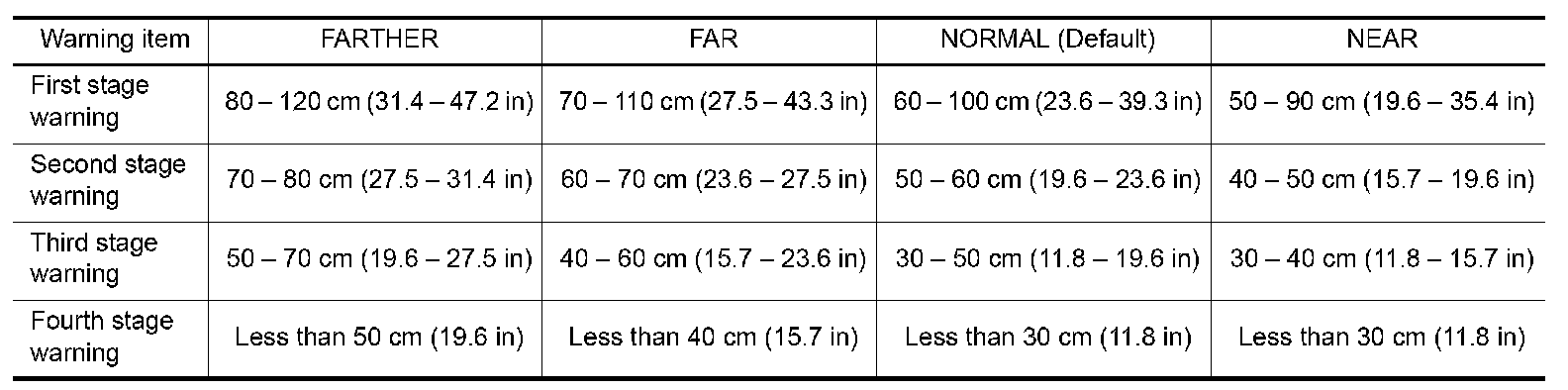

Center sensor warning buzzer distance can set it to 4 phases as follows.





The default of this model is "NORMAL".
TRAILER HITCH MODE
Center sensor (RR, RL) only is adjustable not to detect the distance less than 40 cm (15.7 in).
When installing the trailer hitch: ON
When not installing the trailer hitch: OFF
