Without Intelligent Key)
DIAGNOSIS SYSTEM (BCM)
TRUNK : CONSULT Function (BCM - TRUNK) (WITHOUT INTELLIGENT KEY)
APPLICATION ITEM

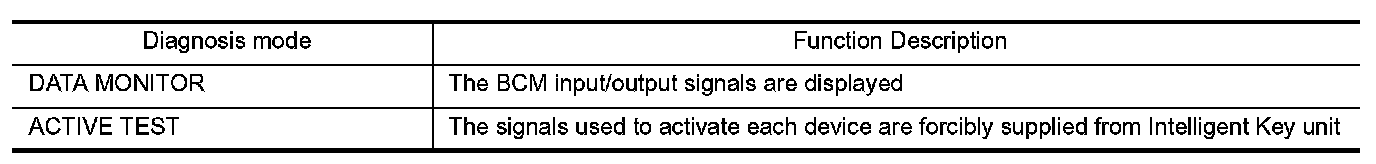

CONSULT performs the following functions via CAN communication with BCM.

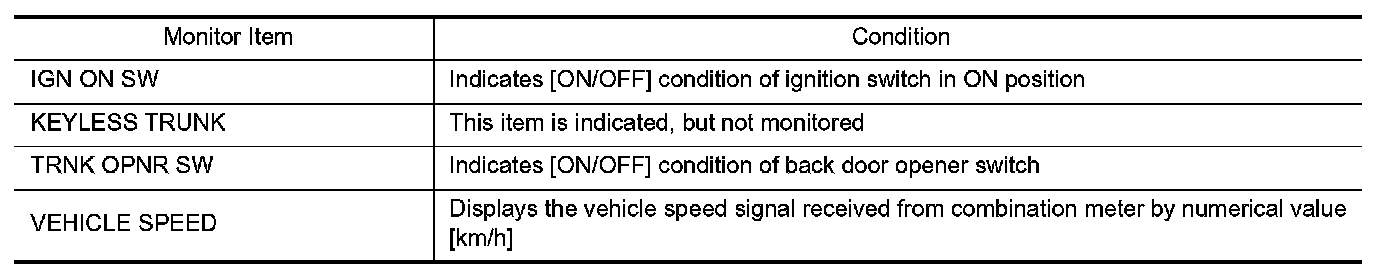

DATA MONITOR

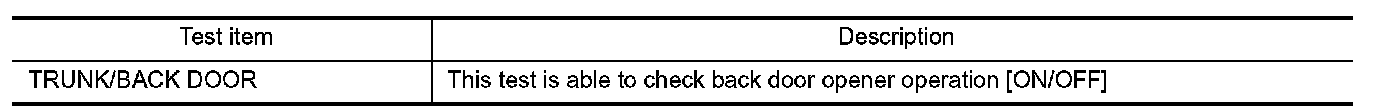

ACTIVE TEST
DIAGNOSIS SYSTEM (BCM)
TRUNK : CONSULT Function (BCM - TRUNK) (WITHOUT INTELLIGENT KEY)
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
DATA MONITOR
ACTIVE TEST
