Exploded View
>>
With Intelligent Key System
With Intelligent Key System
BACK DOOR

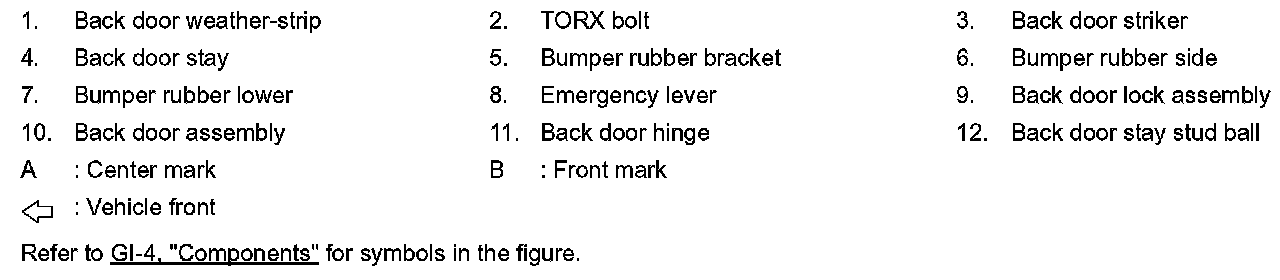

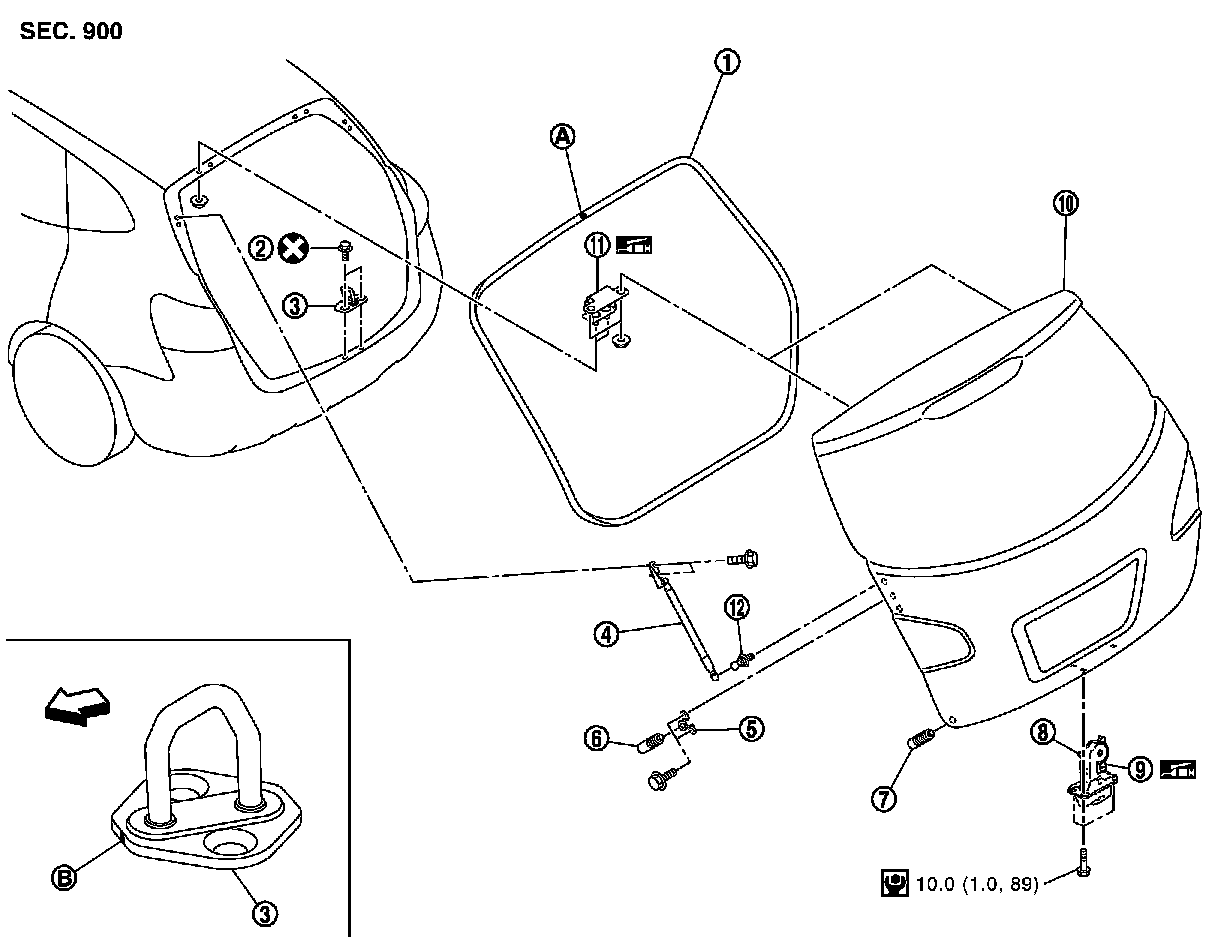

BACK DOOR ASSEMBLY : Exploded View
