Exploded View
>>
Without Intelligent Key System
Without Intelligent Key System
BACK DOOR

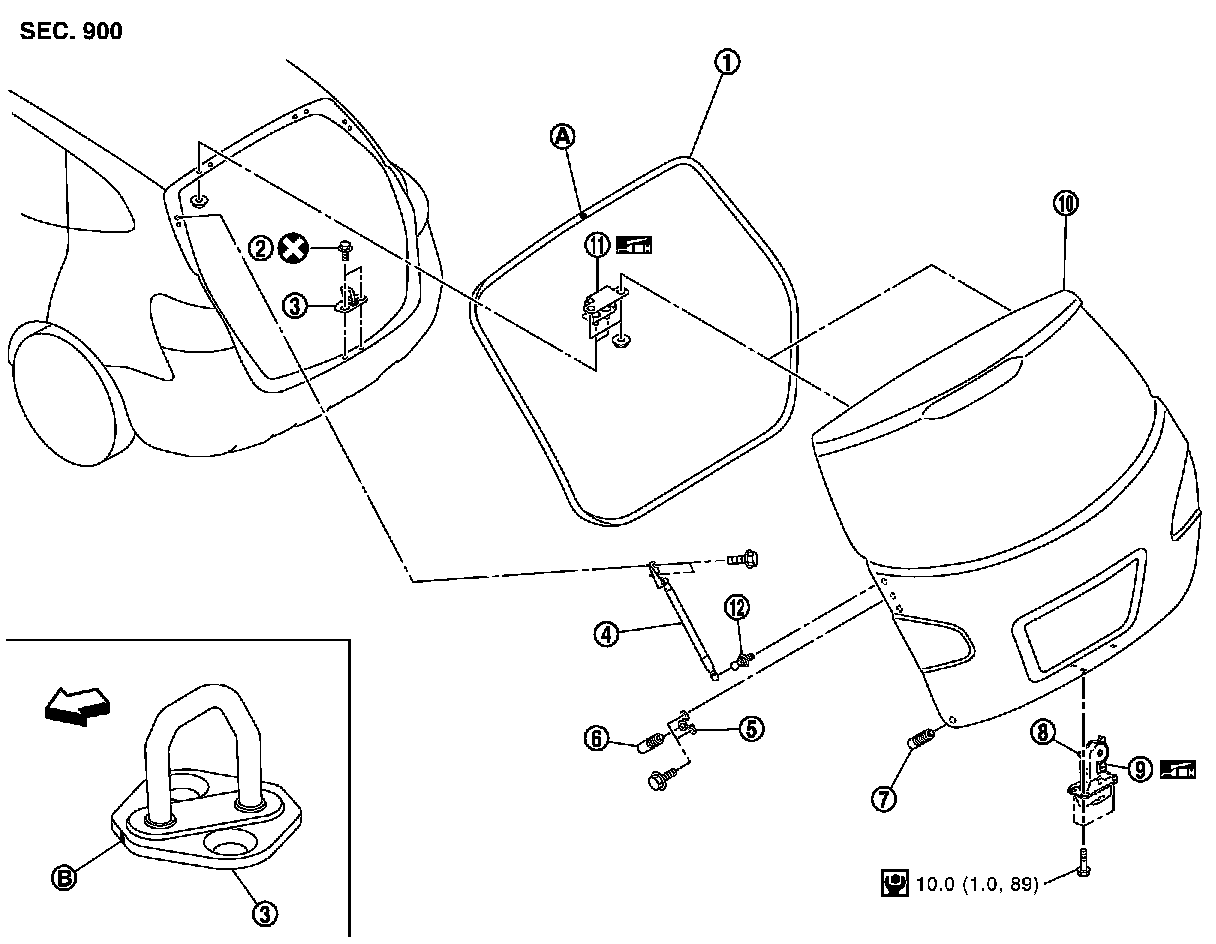

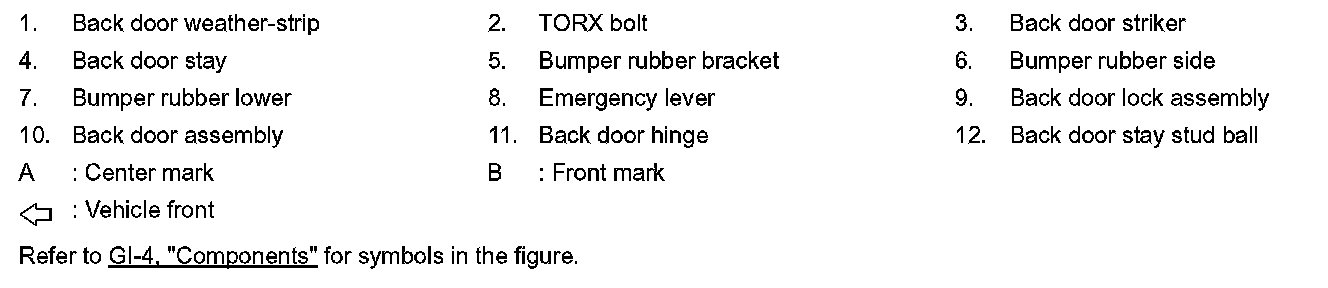

BACK DOOR ASSEMBLY : Exploded View
