Exploded View
>>
With Intelligent Key System
With Intelligent Key System
BACK DOOR

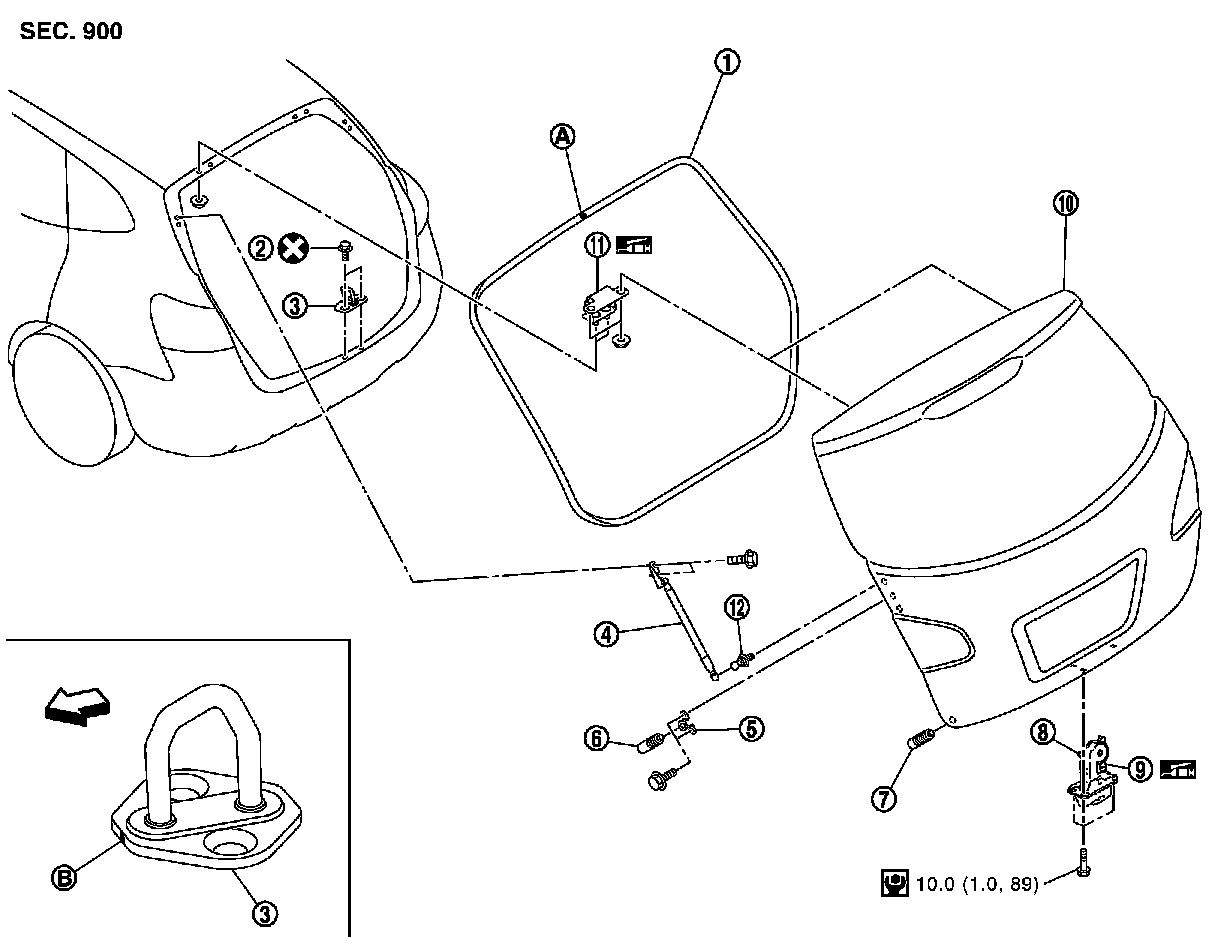

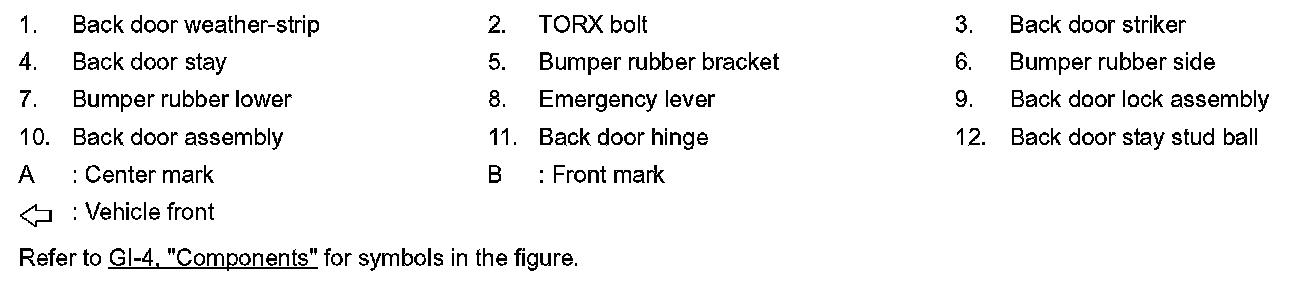

BACK DOOR STAY : Exploded View
