Component Function Check

INSIDE KEY ANTENNA

CONSOLE : Component Function Check


1. CHECK INSIDE KEY ANTENNA INPUT SIGNAL

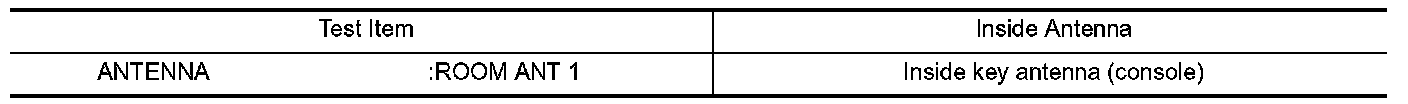

1.Check "ANTENNA" in "Active Test" mode with CONSULT.
2.Touch "ROOM ANT 1".
3.When Intelligent Key is in inside key antenna (console) detection area, LED (on Intelligent Key) blinks.





Is the inspection result normal?
YES- Inside key antenna (console) is OK.
NO- Diagnosis Procedure.
