Component Function Check

INSIDE KEY ANTENNA

REAR SEAT : Component Function Check


1. CHECK INSIDE KEY ANTENNA INPUT SIGNAL

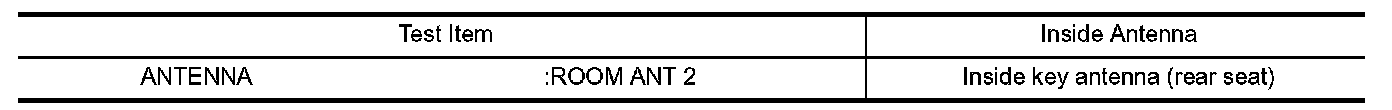

1.Check "ANTENNA" in "Active Test" mode with CONSULT.
2.Touch "ROOM ANT 2".
3.When Intelligent Key is in inside key antenna (rear seat) detection area, LED (on Intelligent Key) blinks.





Is the inspection result normal?
YES- Inside key antenna (rear seat) is OK.
NO- Diagnosis Procedure.
