Without Intelligent Key System

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE : Component Function Check


1. CHECK FUNCTION

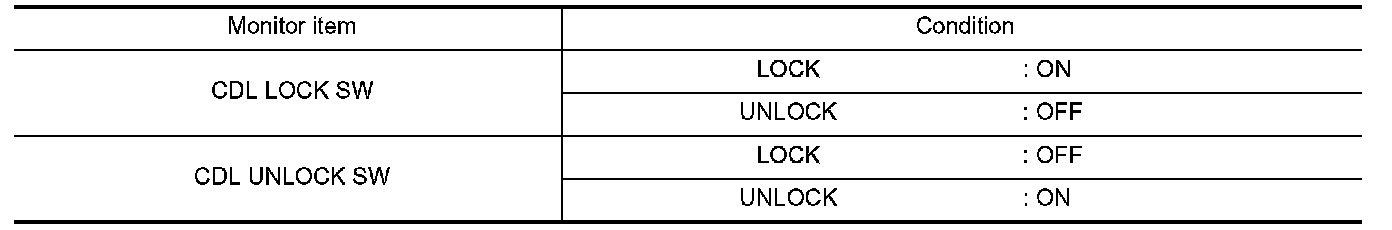

Check "CDL LOCK SW "and "CDL UNLOCK SW" in "Data Monitor" mode with CONSULT.





Is the inspection result normal?
YES- Door lock and unlock switch is OK.
NO- Without Intelligent Key System.
