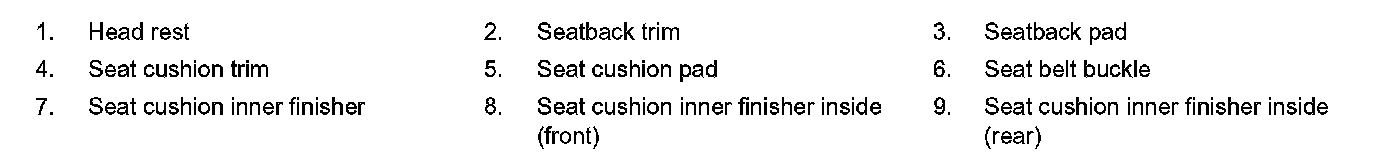

Exploded View
FRONT SEAT
Exploded View

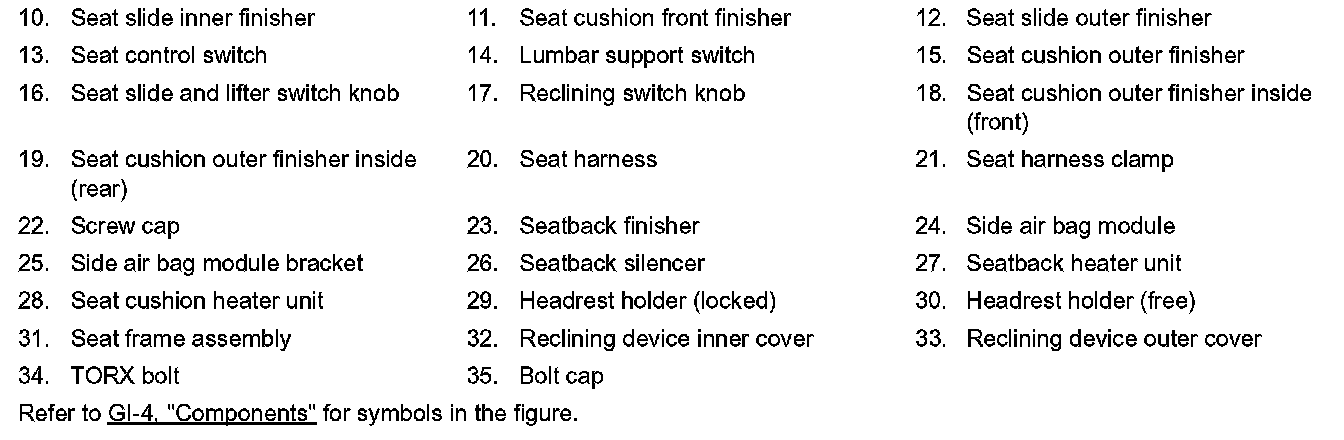

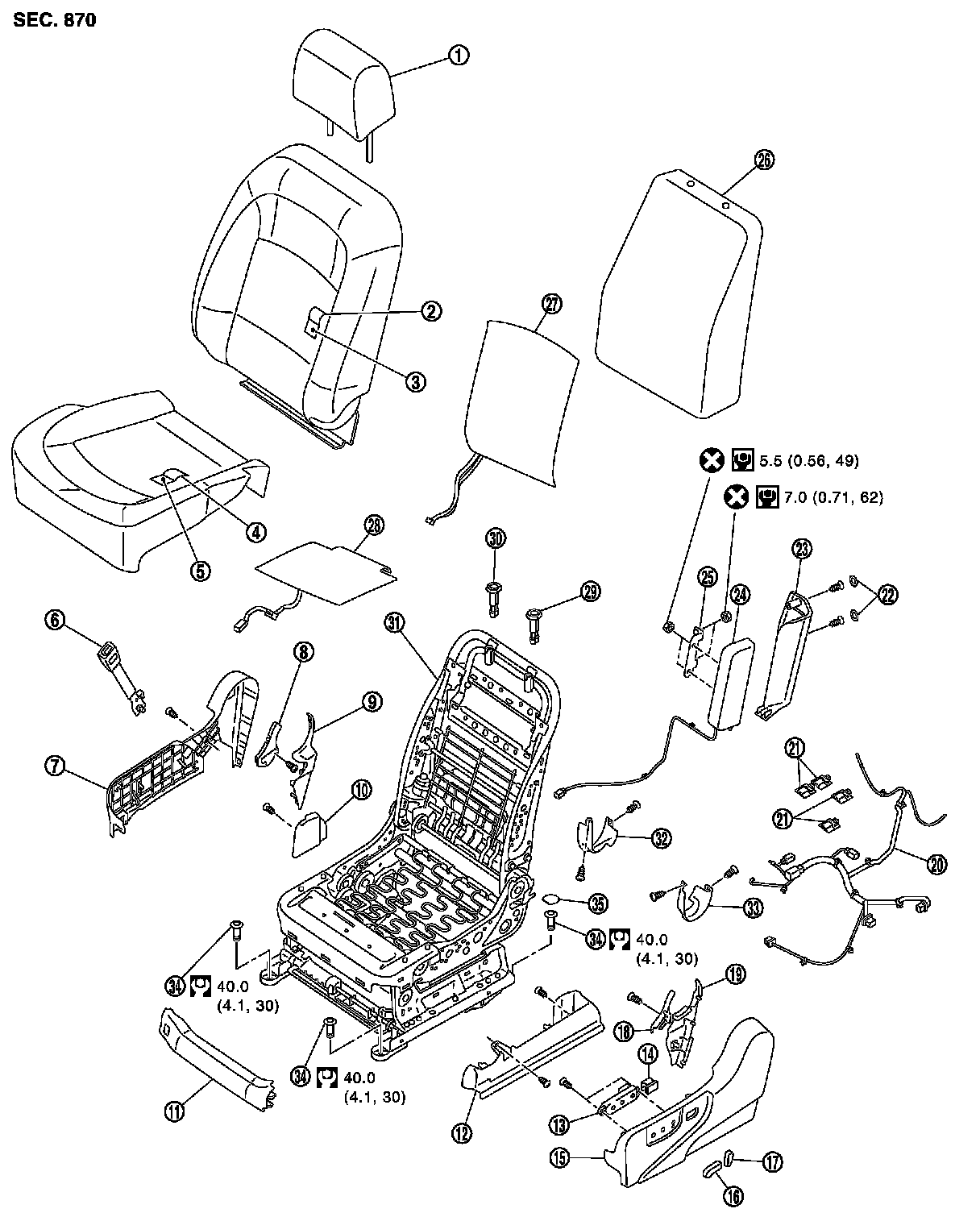

DRIVER'S POWER SEAT

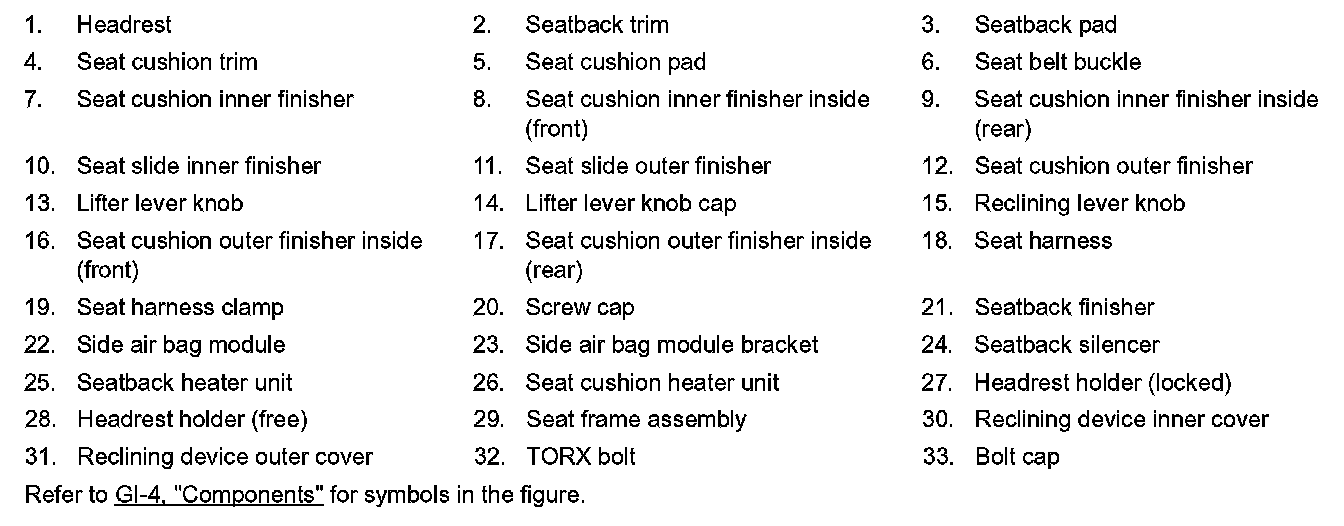

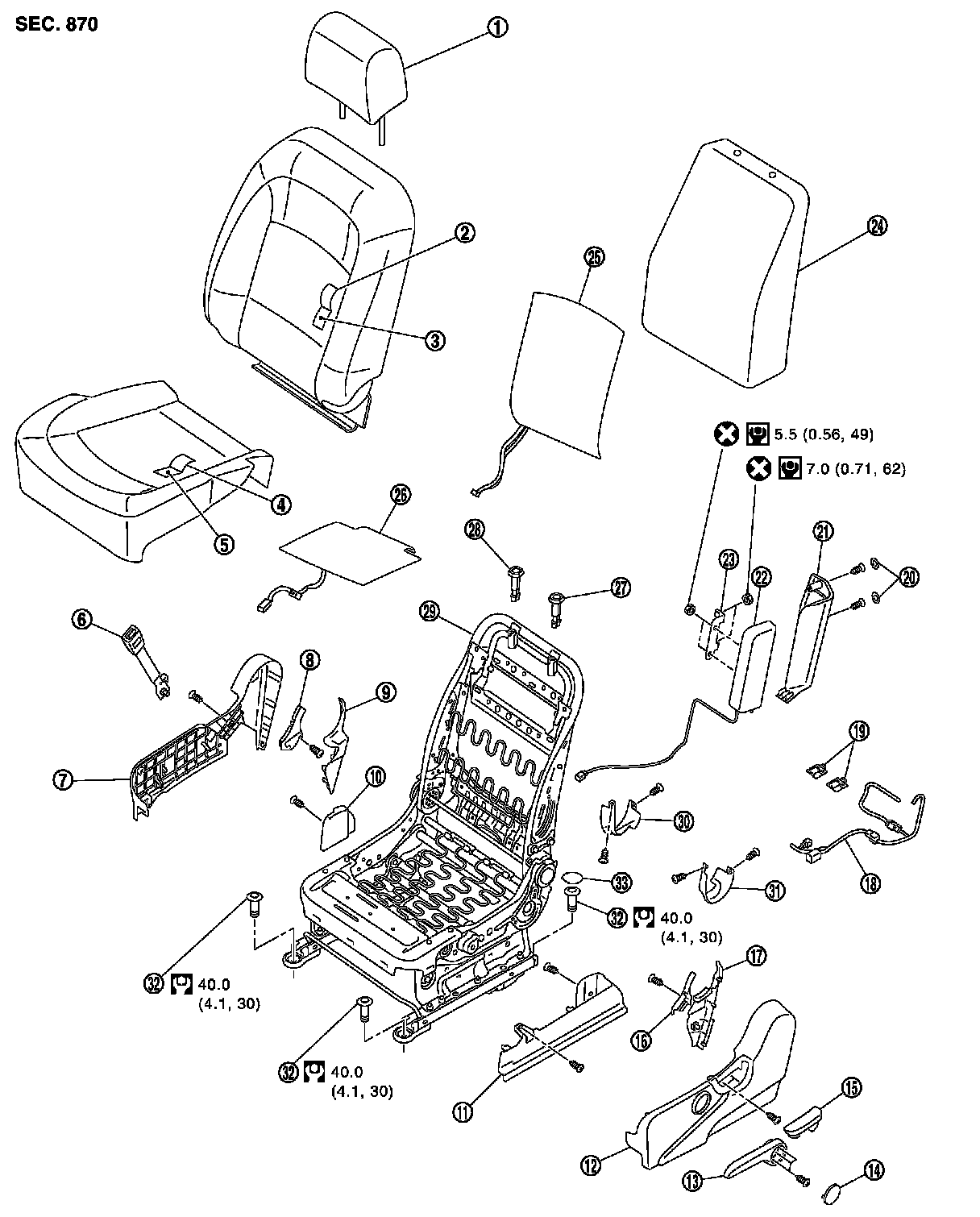

DRIVER'S MANUAL SEAT

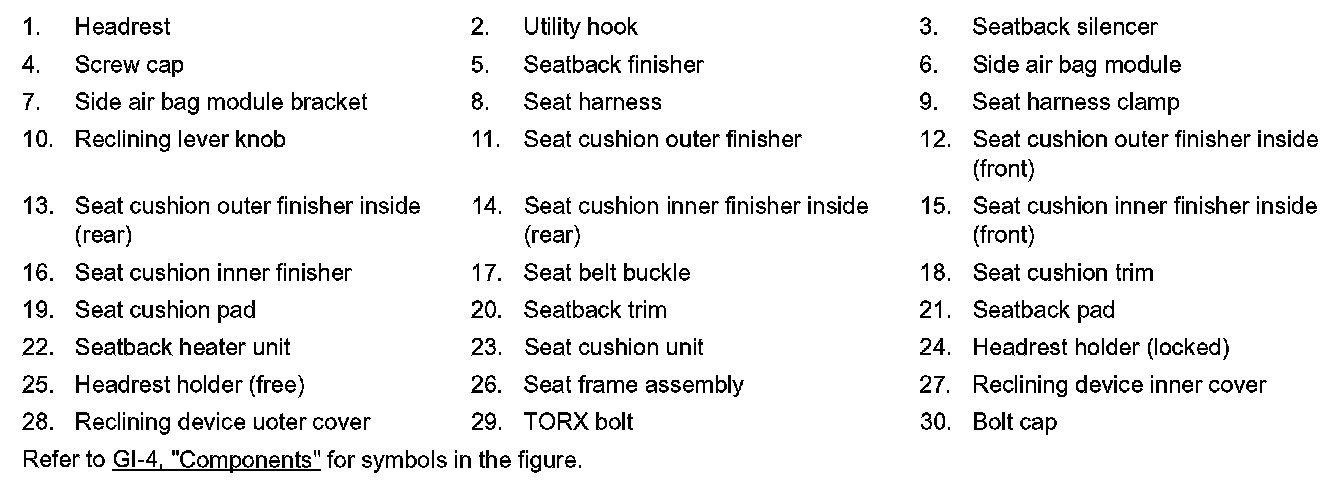

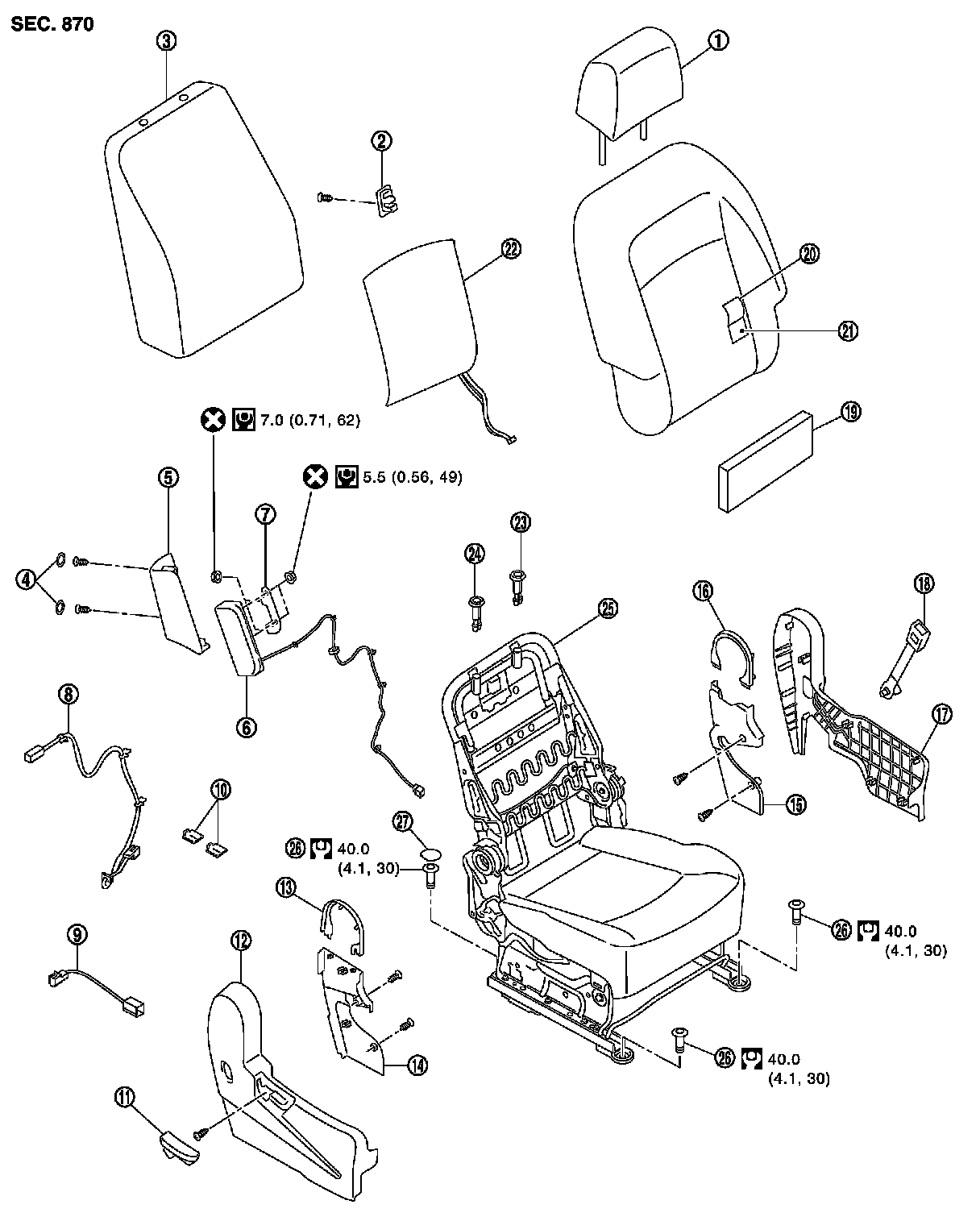

PASSENGER'S FOLDING SEAT

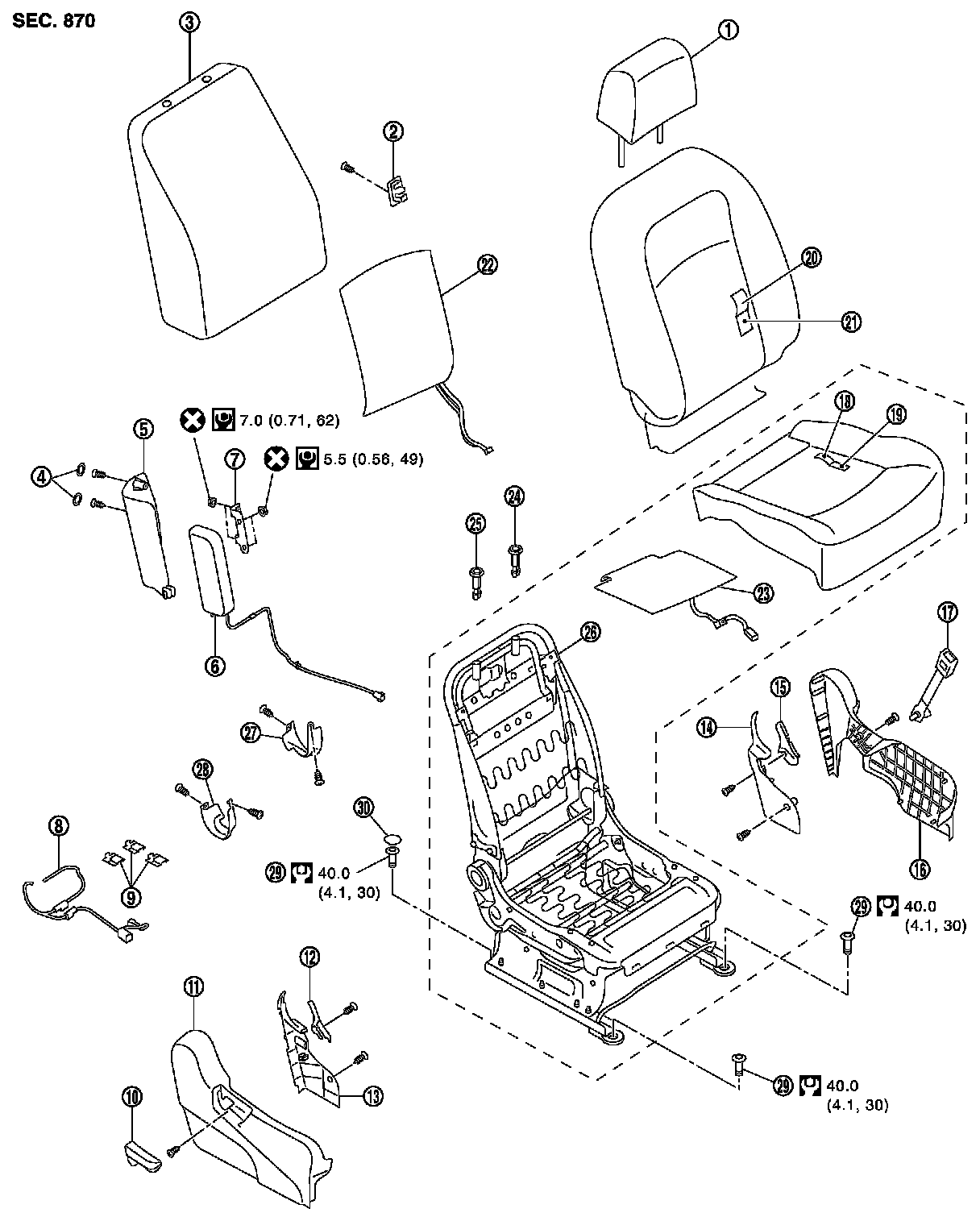

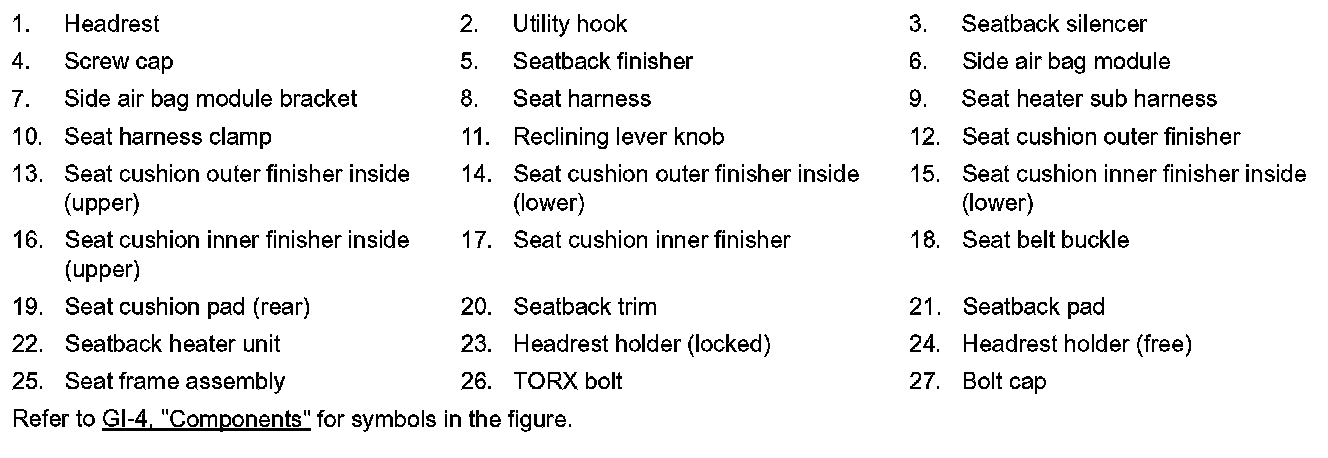

PASSENGER'S STANDARD SEAT
CAUTION:
Never disassembly the component parts of only front passenger seat in the dotted lines shown in the figure below. (With occupant classification system control unit model)
