VDC/TCS/ABS

BRAKE WARNING LAMP

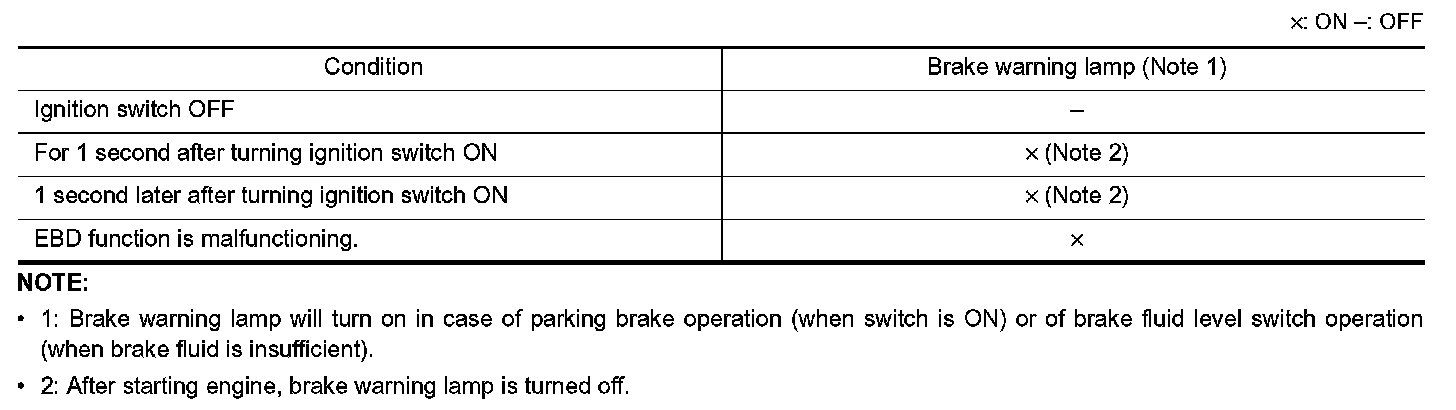

Description

x: ON -: OFF







Component Function Check


1. BRAKE WARNING LAMP OPERATION CHECK 1

Check that the lamp illuminates for approximately 1 second after the ignition switch is turned ON.
Is the inspection result normal?
YES- GO TO 2.
NO- Proceed to diagnosis procedure. .

2. BRAKE WARNING LAMP OPERATION CHECK 2

Check that the brake warning lamp in the combination meter turns ON/OFF correctly when operating the parking brake pedal.
Is the inspection result normal?
YES- INSPECTION END
NO- Check parking brake switch. VDC/TCS/ABS.


Diagnosis Procedure


1. CHECK PARKING BRAKE SWITCH

Check that the brake warning lamp in the combination meter turns ON/OFF correctly when operating the parking brake pedal.
Is the inspection result normal?
YES- GO TO 2.
NO- Check parking brake switch. VDC/TCS/ABS.

2. CHECK SELF-DIAGNOSIS

Perform self-diagnosis for "ABS" with CONSULT.
Is the inspection result normal?
YES- GO TO 3.
NO- Check items displayed by self-diagnosis.

3. CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Combination Meter.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). VDC/TCS/ABS.
NO- Repair or replace combination meter.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Refer to BRC76, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement".
- END
