ASCD INDICATOR

Description

ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE lamp illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that ASCD
system is ready for operation.
SET lamp illuminates when the following conditions are met.
- CRUISE lamp is illuminated.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of the
ASCD setting.
SET lamp remains lit during ASCD control.
Except For Mexico for the ASCD function.


Component Function Check


1. ASCD INDICATOR FUNCTION

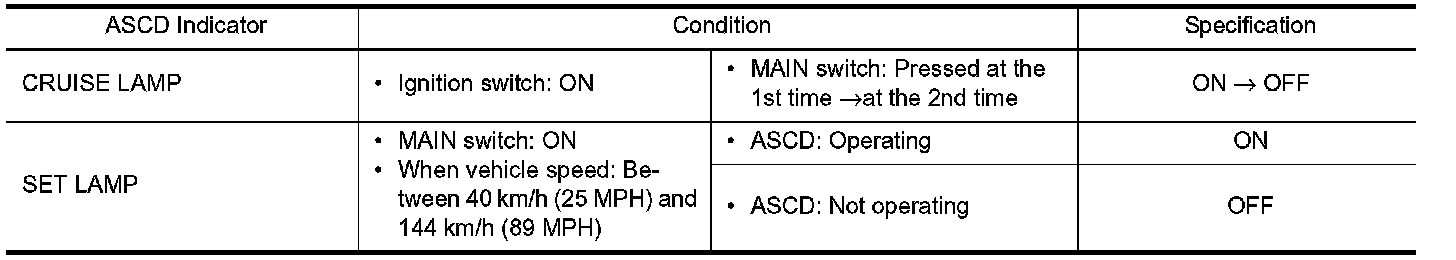

Check ASCD indicator under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Go to Diagnosis Procedure (see below).


Diagnosis Procedure


1. CHECK DTC

Check that DTC UXXXX is not displayed.
Is the inspection result normal?
YES- GO TO 2.
NO- Perform trouble diagnosis for DTC UXXXX.

2. CHECK COMBINATION METER OPERATION

Combination Meter.
Is the inspection result normal?
YES- GO TO 3.
NO- Check combination meter circuit. Refer to System Diagram.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
