Intelligent Key Unit
INTELLIGENT KEY UNIT

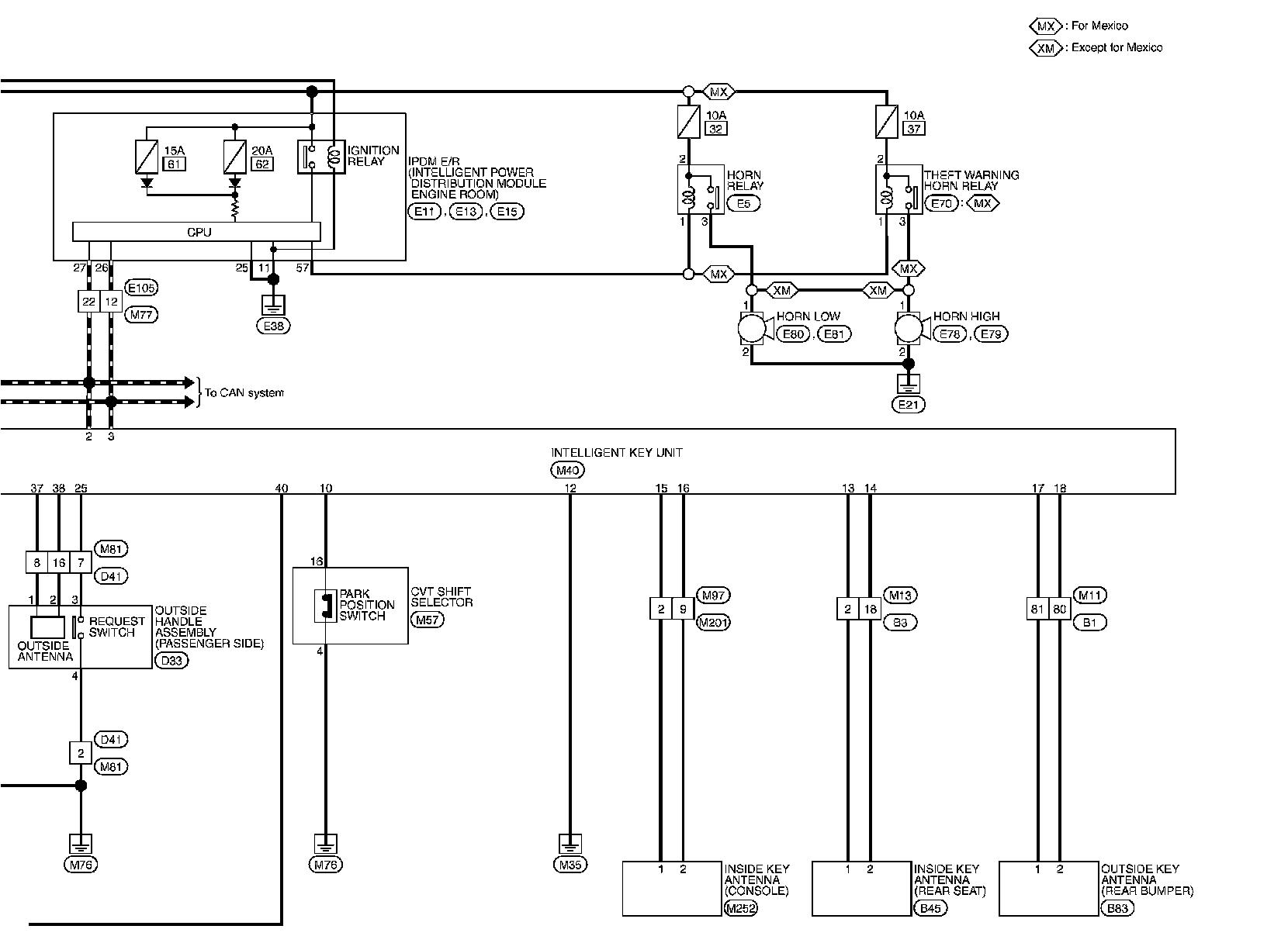

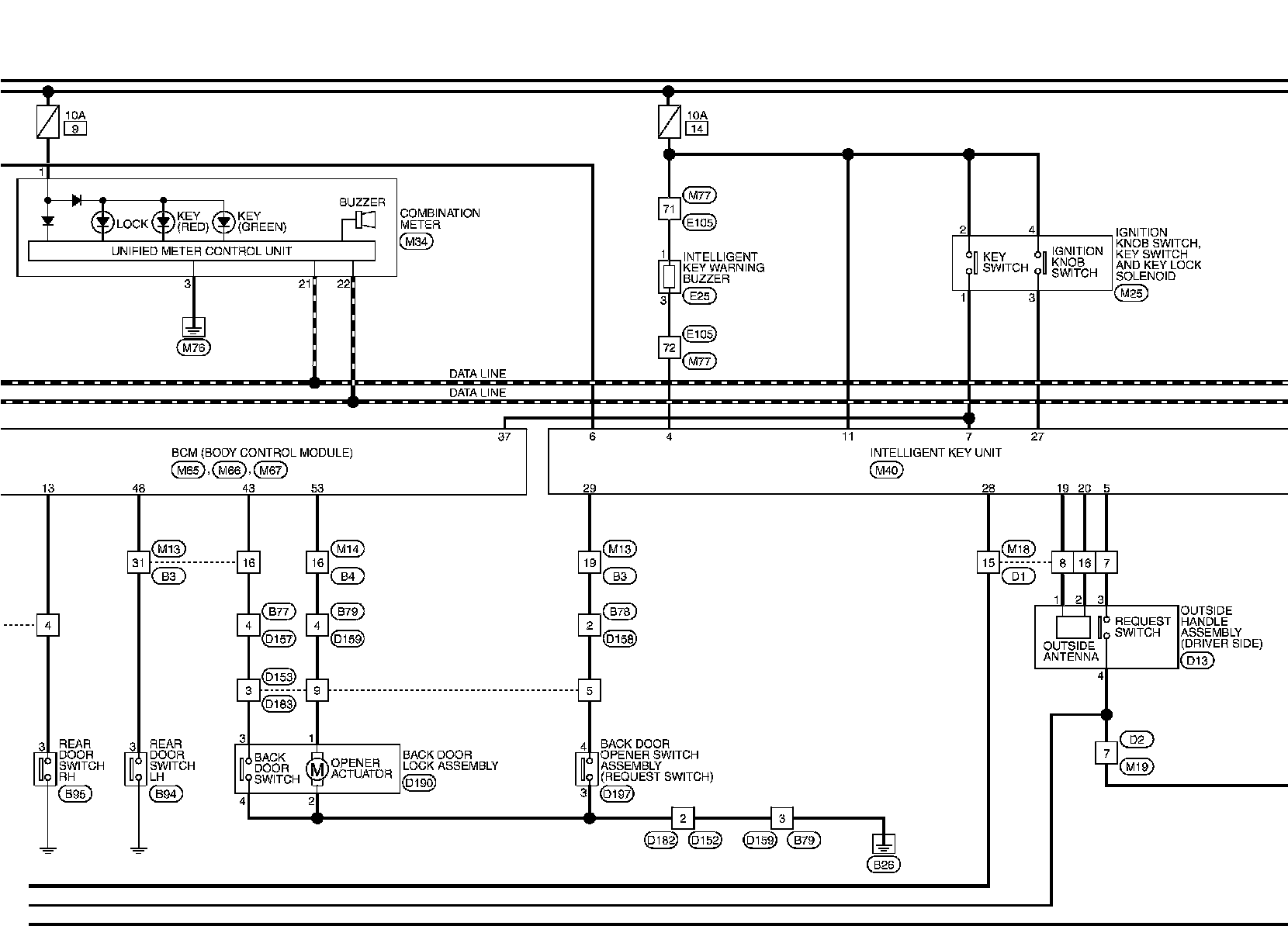

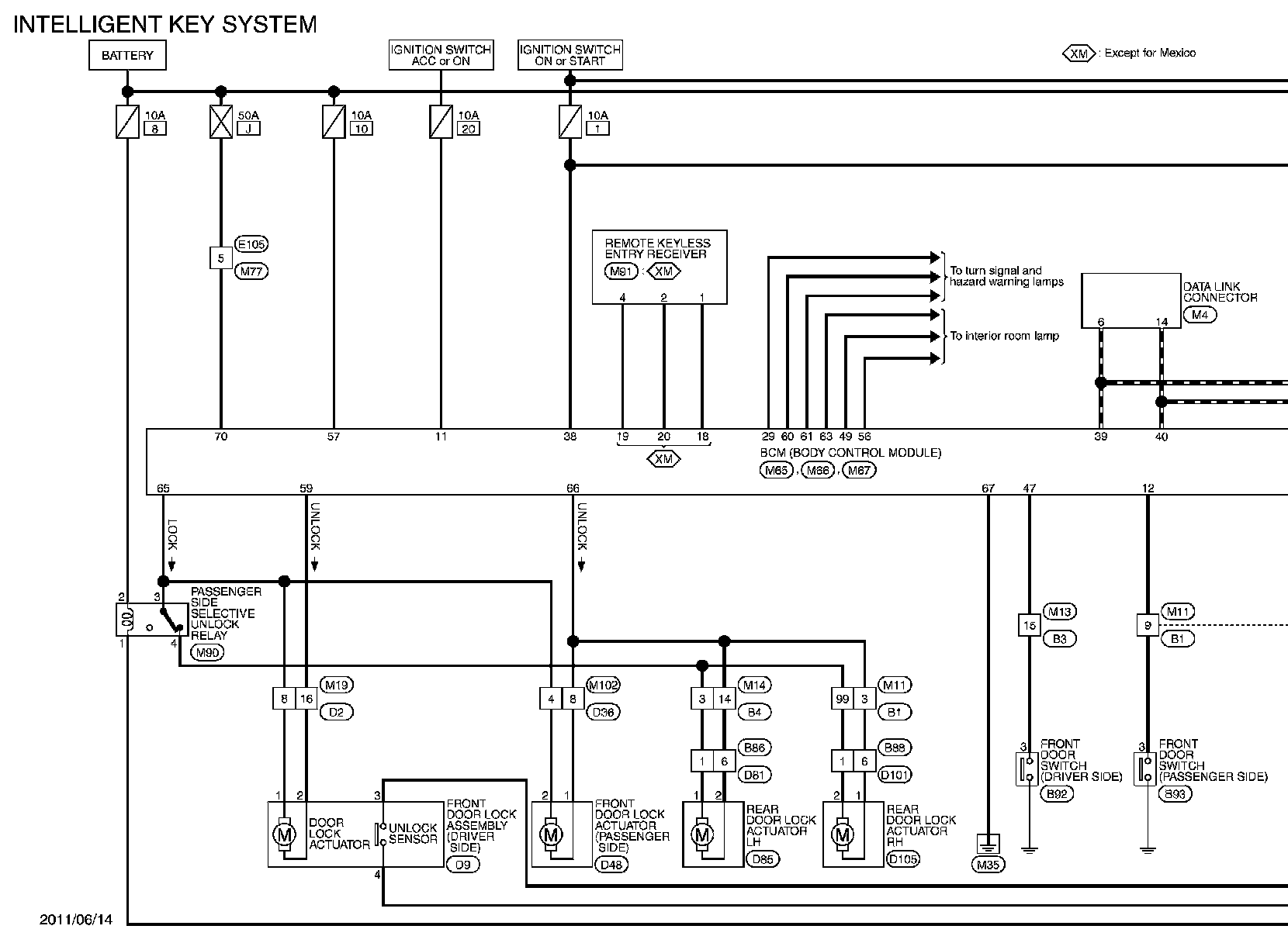

Wiring Diagram - INTELLIGENT KEY SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
INTELLIGENT KEY UNIT
Wiring Diagram - INTELLIGENT KEY SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
