With Intelligent Key System
VEHICLE SECURITY SYSTEM

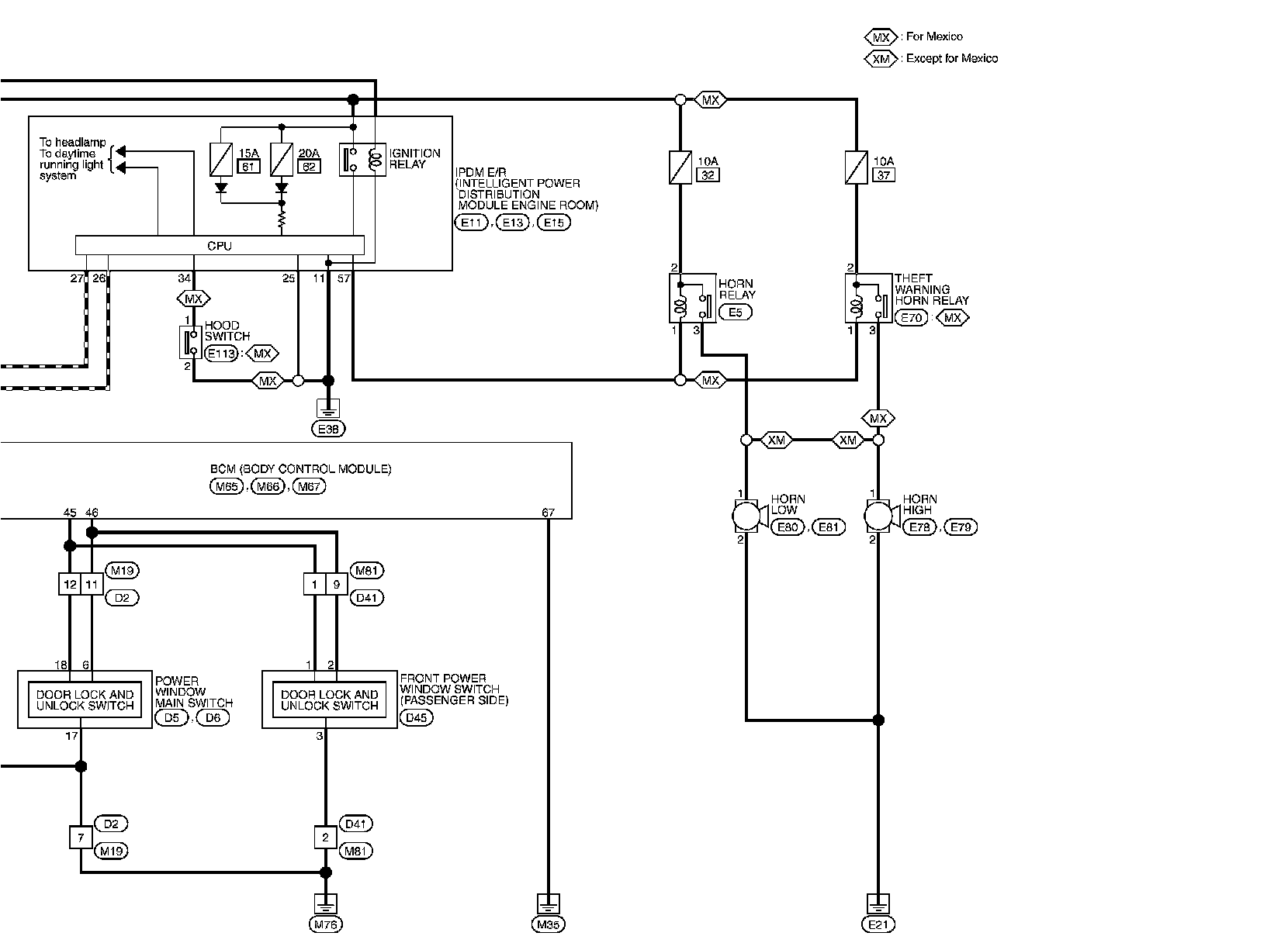

Wiring Diagram - VEHICLE SECURITY SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
VEHICLE SECURITY SYSTEM

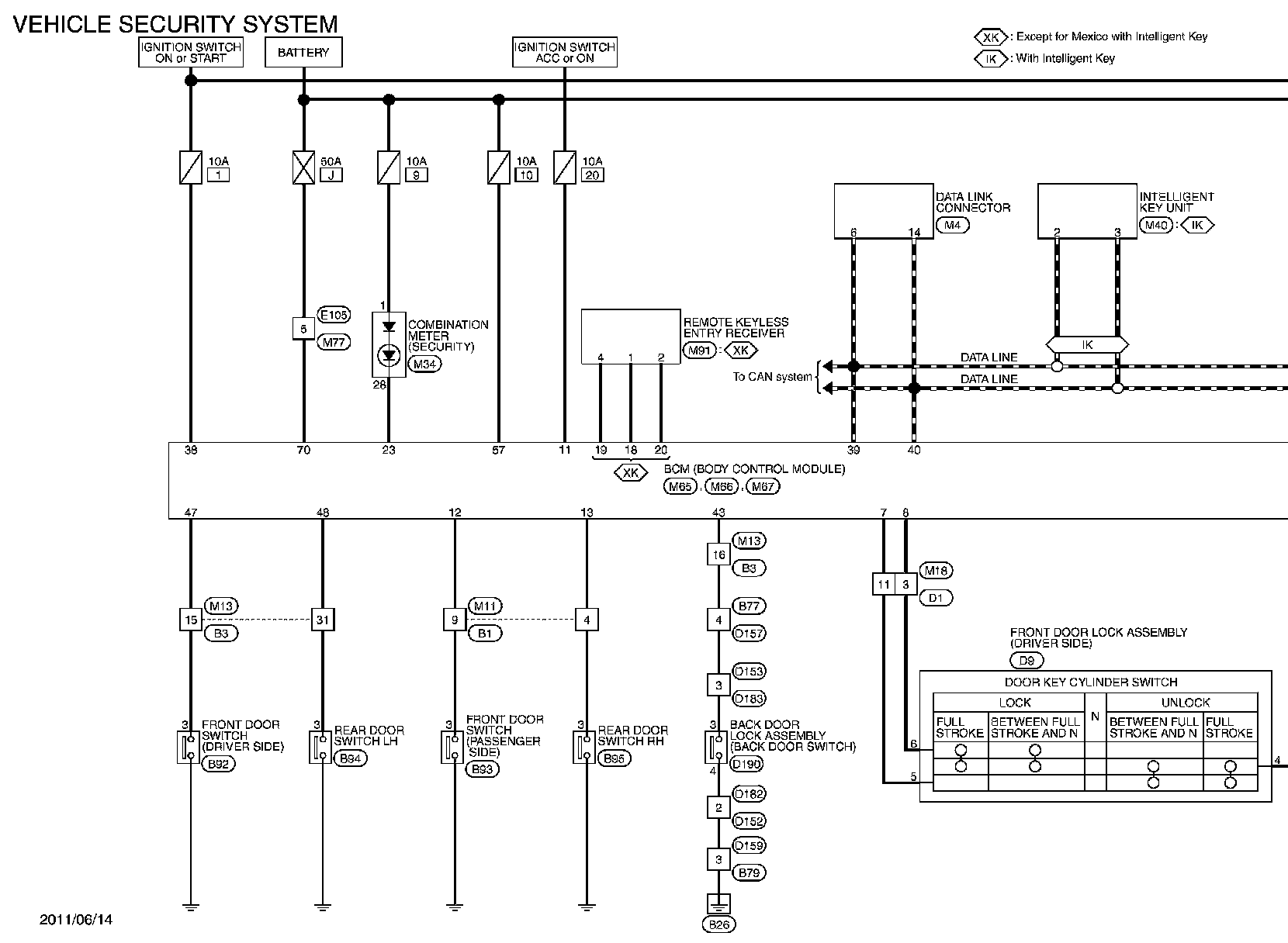

Wiring Diagram - VEHICLE SECURITY SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
