Disassembly And Assembly

OIL PUMP

Disassembly and Assembly


DISASSEMBLY

1.Remove oil pump cover.
2.Remove oil pump inner rotor and oil pump outer rotor from front cover.
3.After removing regulator valve plug, remove regulator valve spring and regulator valve.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

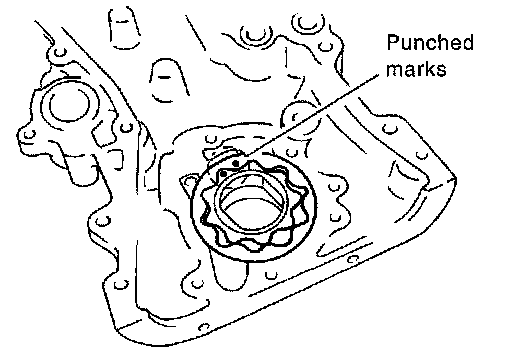

- Install oil pump inner rotor with the groove faced to oil pump cover side.
