Timing Cover: Specifications

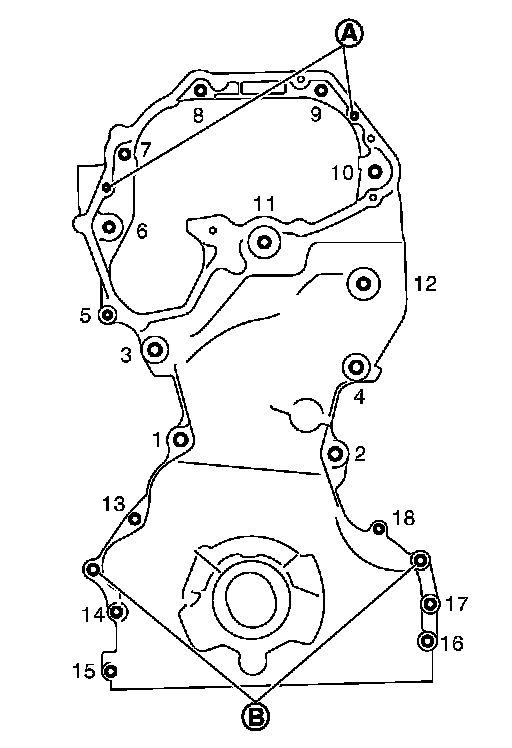

Tighten mounting bolts in numerical order as shown in the figure.

After all bolts are tightened, retighten them to specified torque in numerical order as shown in the figure.

A : Dowel pin
B : Dowel pin hole

Tightening torque
M10 bolt: 49.0 Nm (5.0 kg-m, 36 ft-lb)
M6 bolt: 12.8 Nm (1.3 kg-m, 9 ft-lb)
