Removal And Installation

REFRIGERANT PRESSURE SENSOR

Removal and Installation


REMOVAL

1.Remove liquid tank. Exploded View.

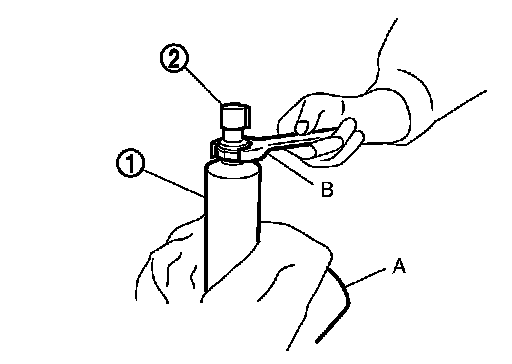

2.Fix the liquid tank (1) with a vise (A). Remove the refrigerant pressure sensor (2) with a wrench (B).

CAUTION:
Be careful not to damage liquid tank.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:
- Replace O-ring with new one. Then apply compressor oil to them when installing.
- Check for leakages when recharging refrigerant.
