Fail-Safe
Fail-Safe
SYSTEM (METER SYSTEM)

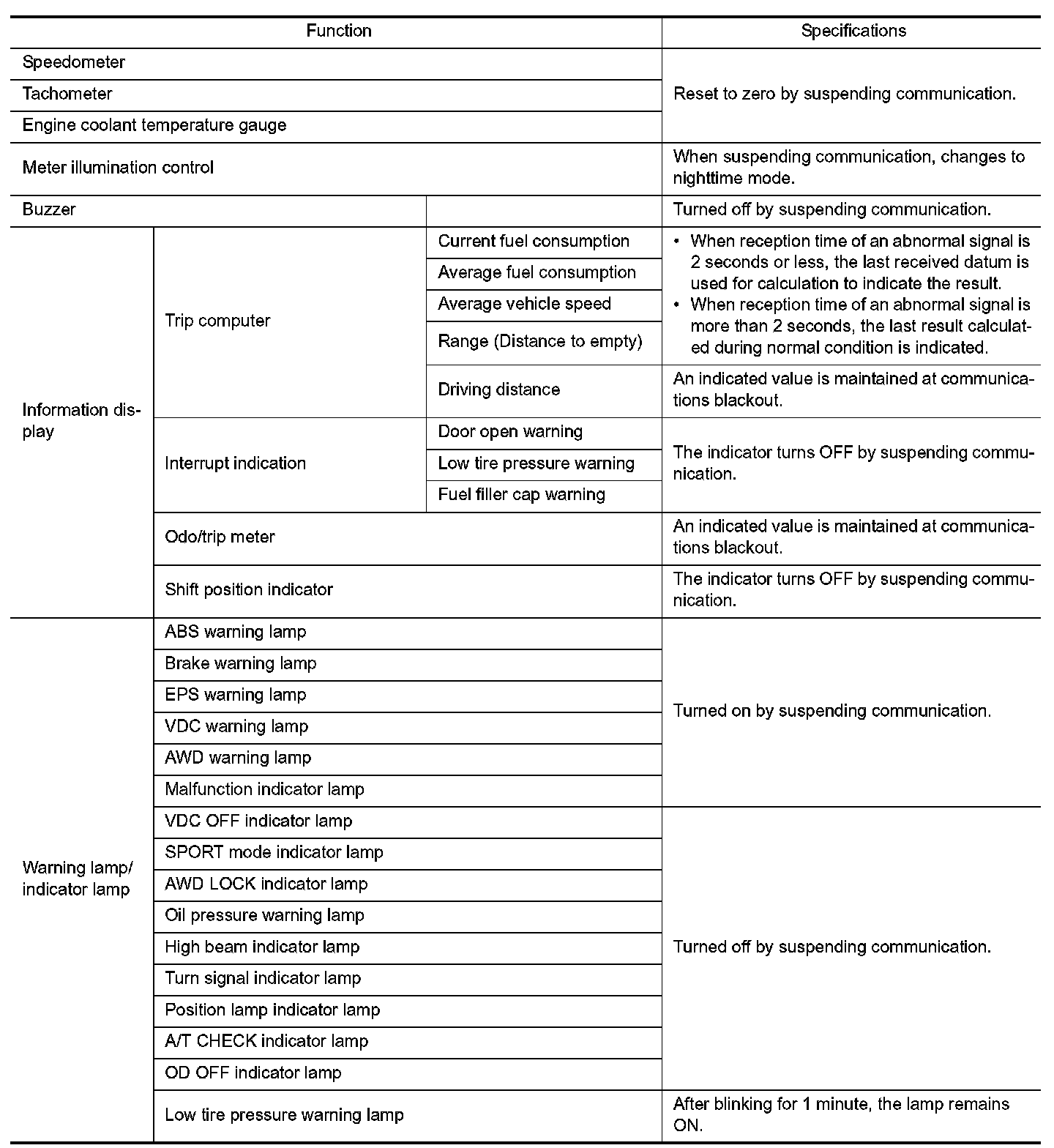

METER SYSTEM : Fail-safe
The combination meter activates the fail-safe control if the CAN communication lines between each unit are malfunctioning.
