Reference Value

COMBINATION METER

Reference Value

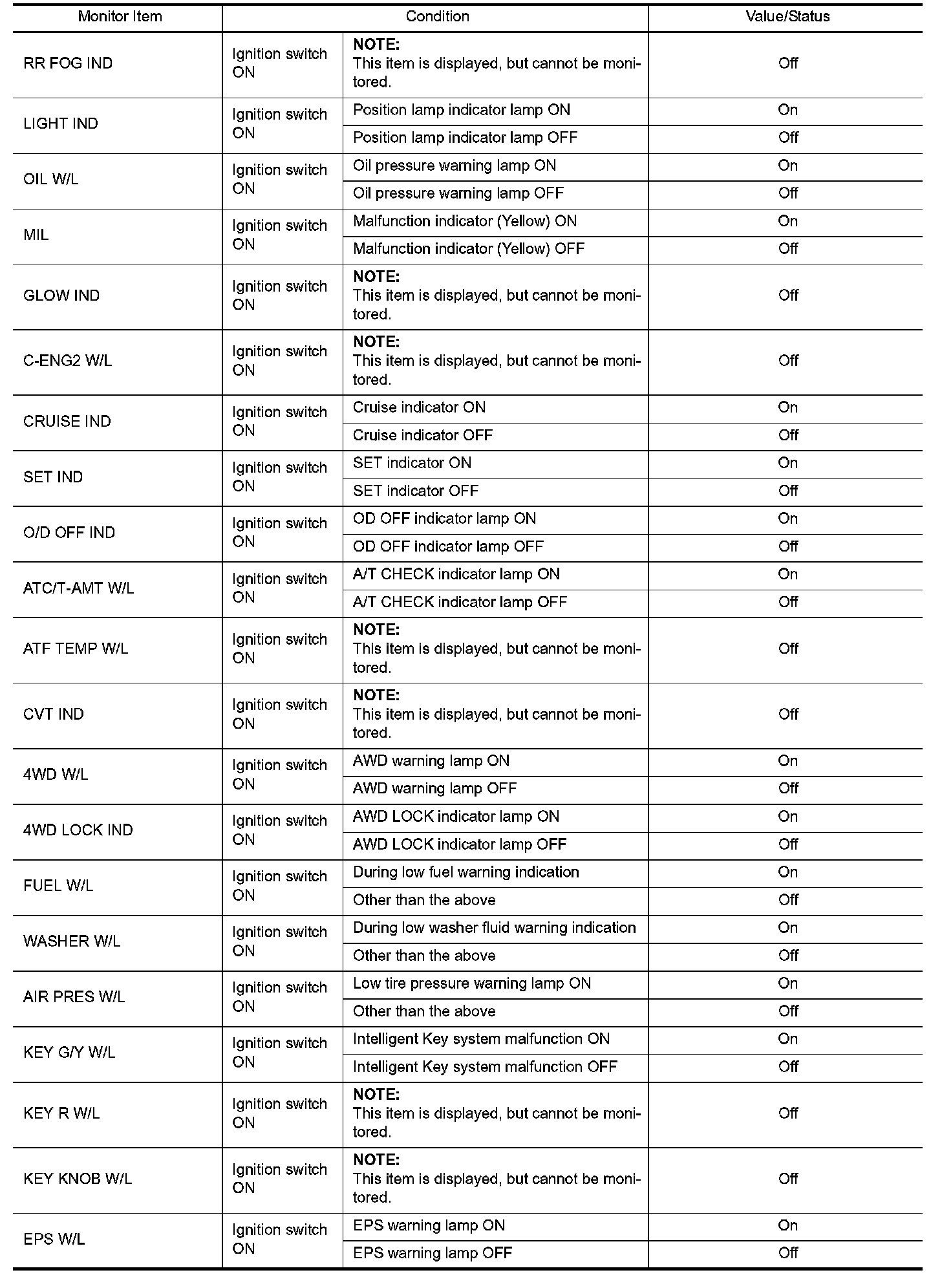

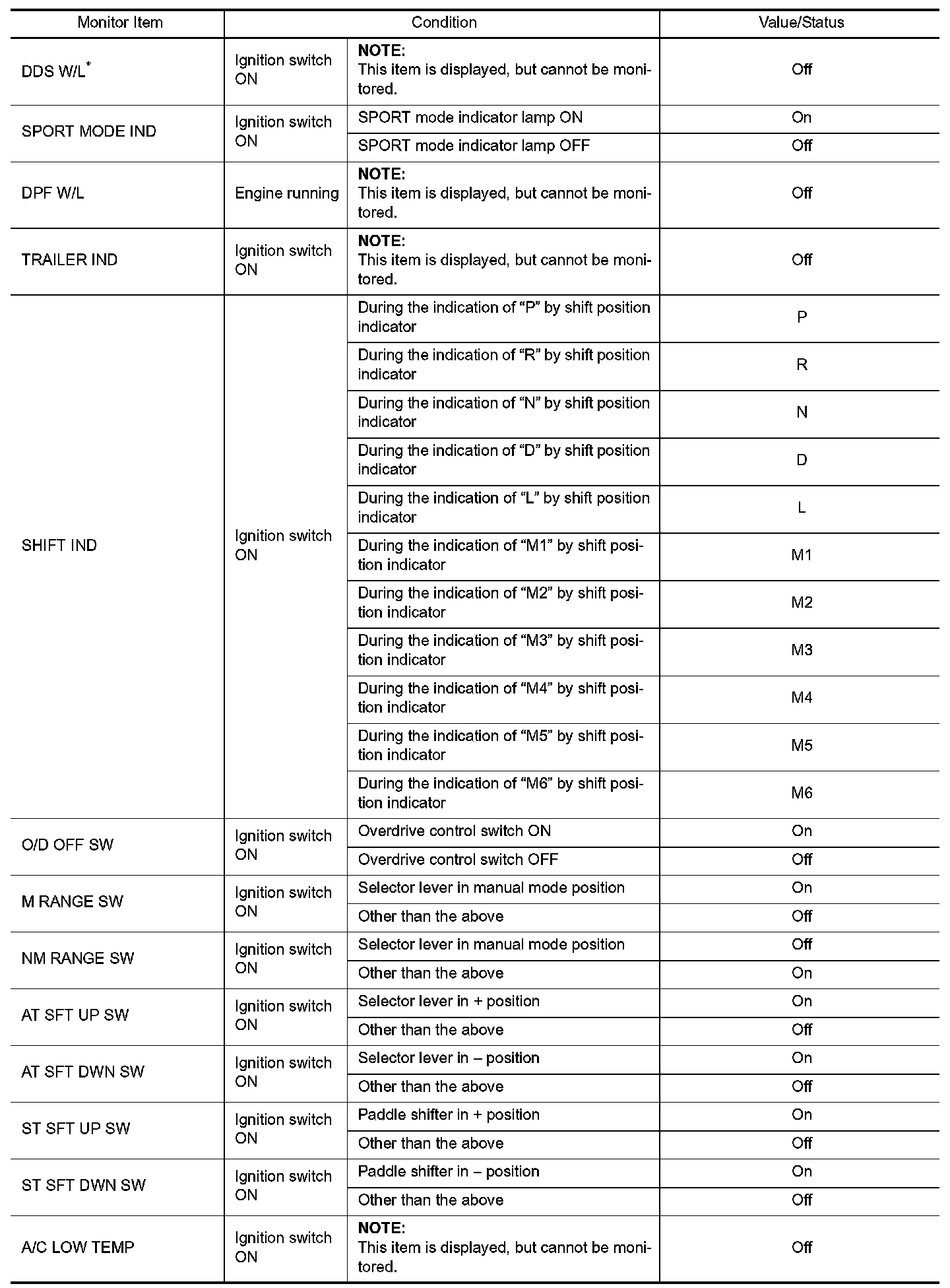

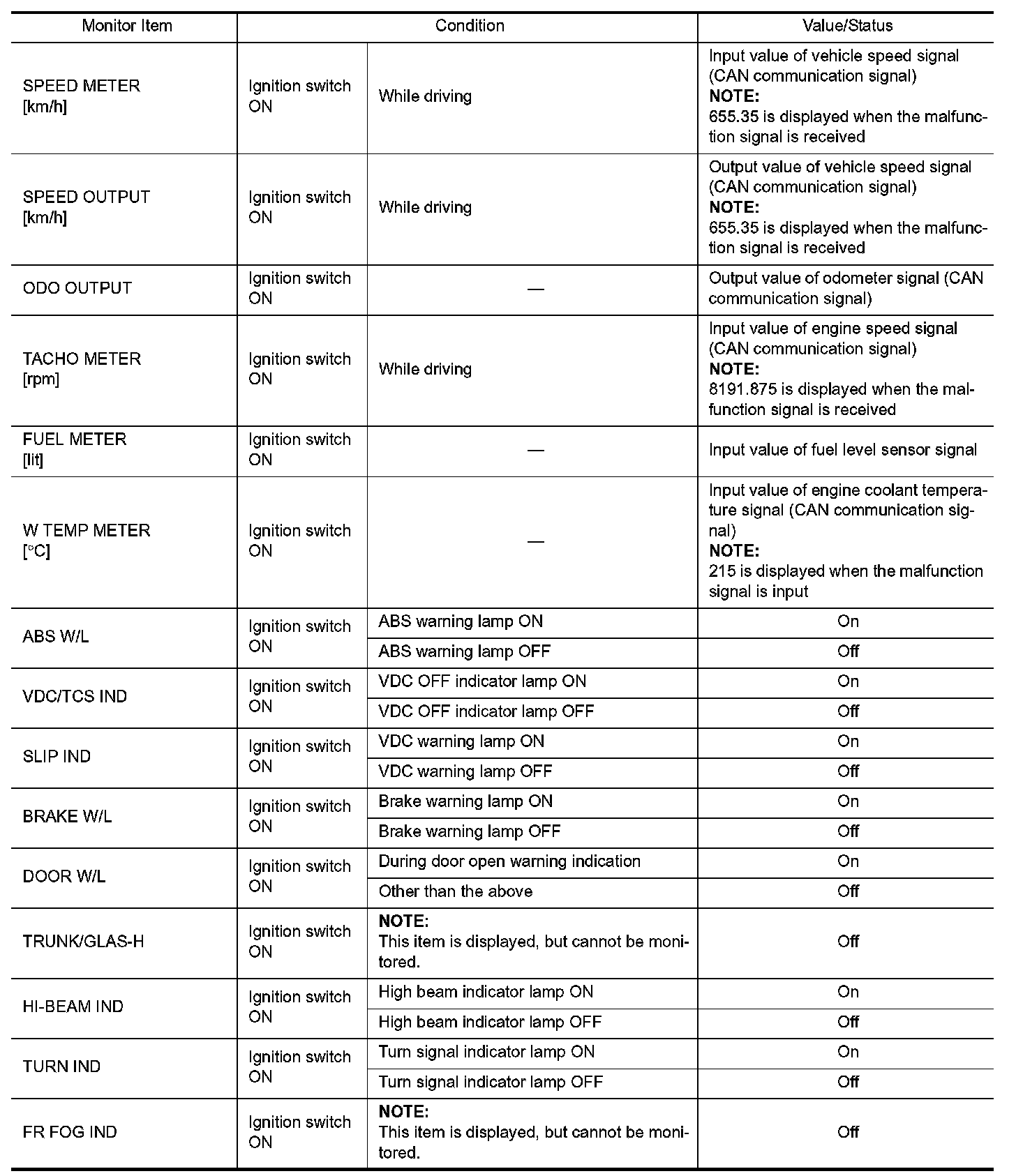

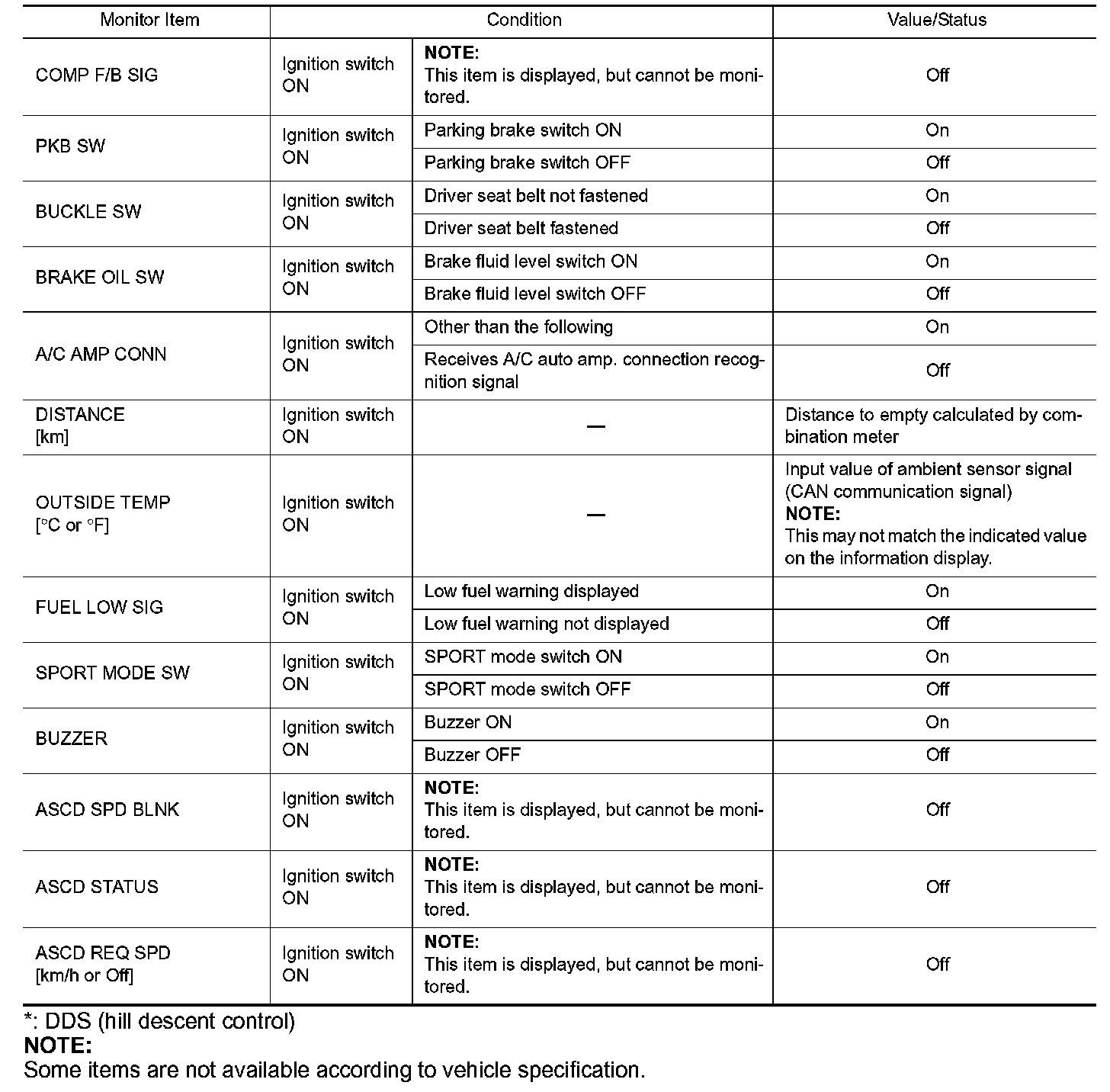

VALUES ON THE DIAGNOSIS TOOL





















*: DDS (hill descent control)
NOTE:
Some items are not available according to vehicle specification.

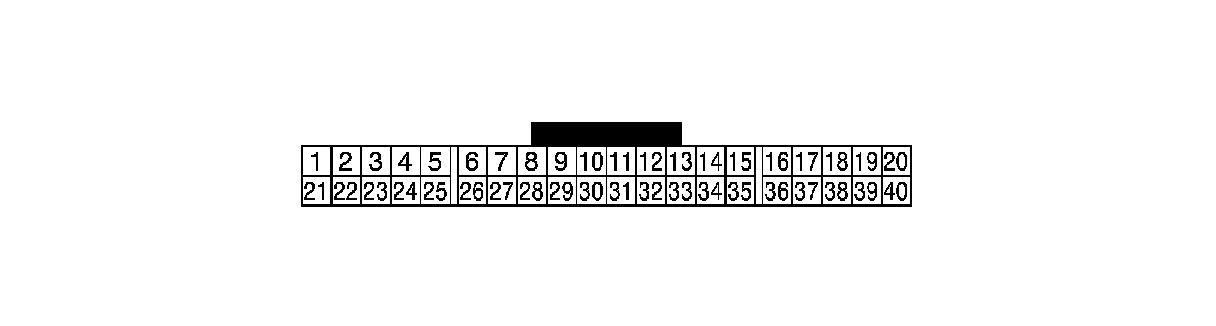

TERMINAL LAYOUT

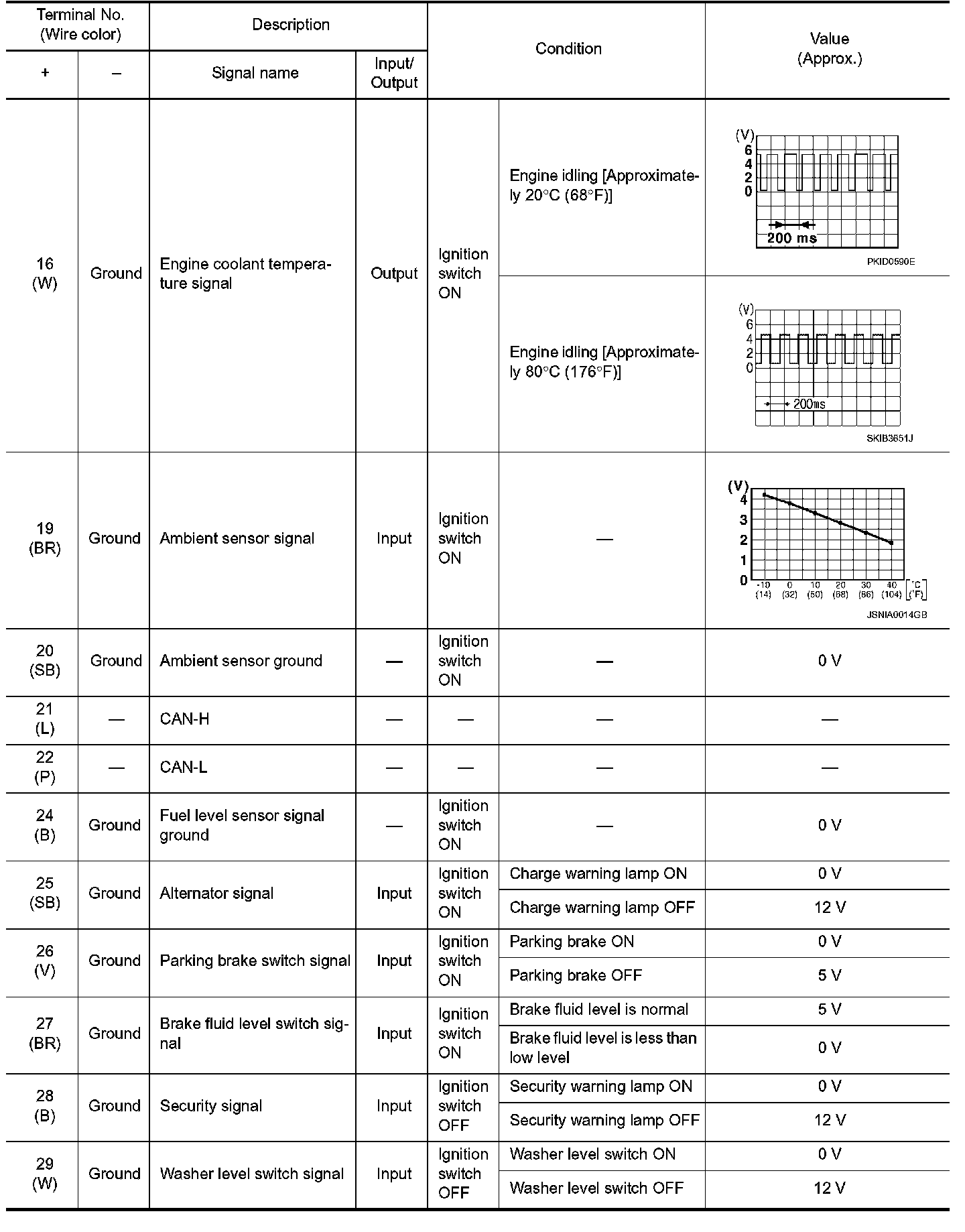

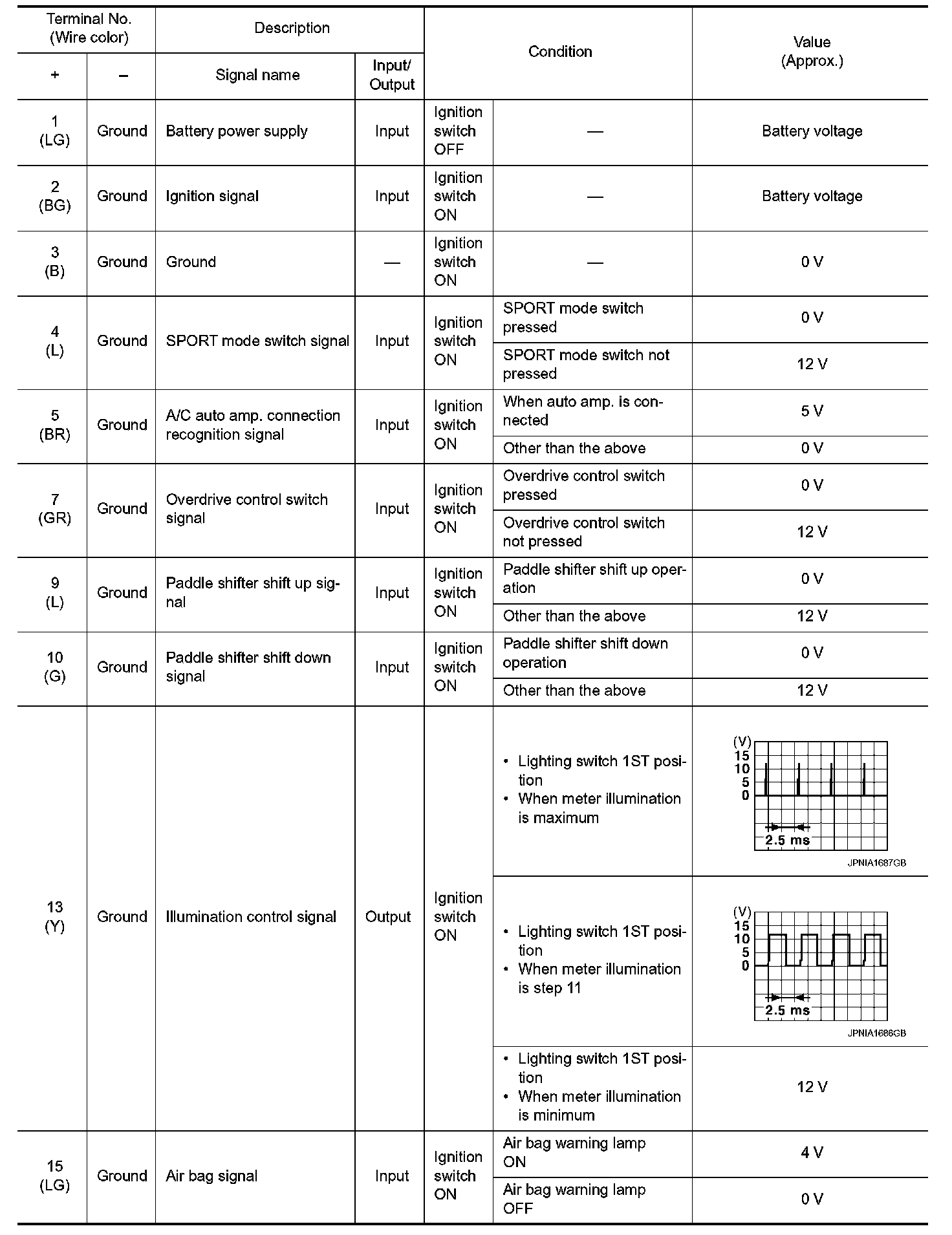

PHYSICAL VALUES
