Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Rogue 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Exterior Lighting
>>
Headlamp
Headlamp
DIAGNOSIS SYSTEM (BCM)
HEADLAMP
: CONSULT Function (BCM - HEAD LAMP)

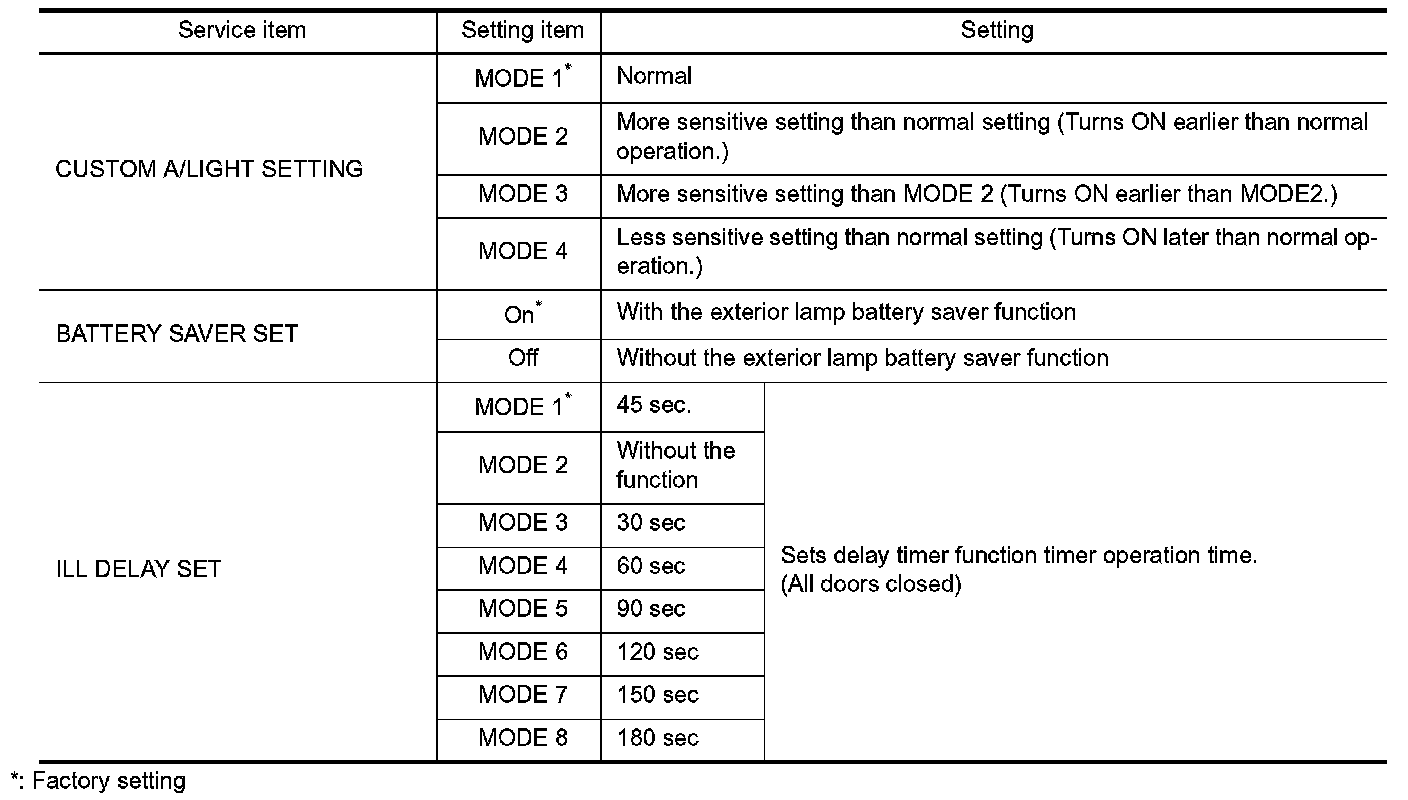

WORK SUPPORT

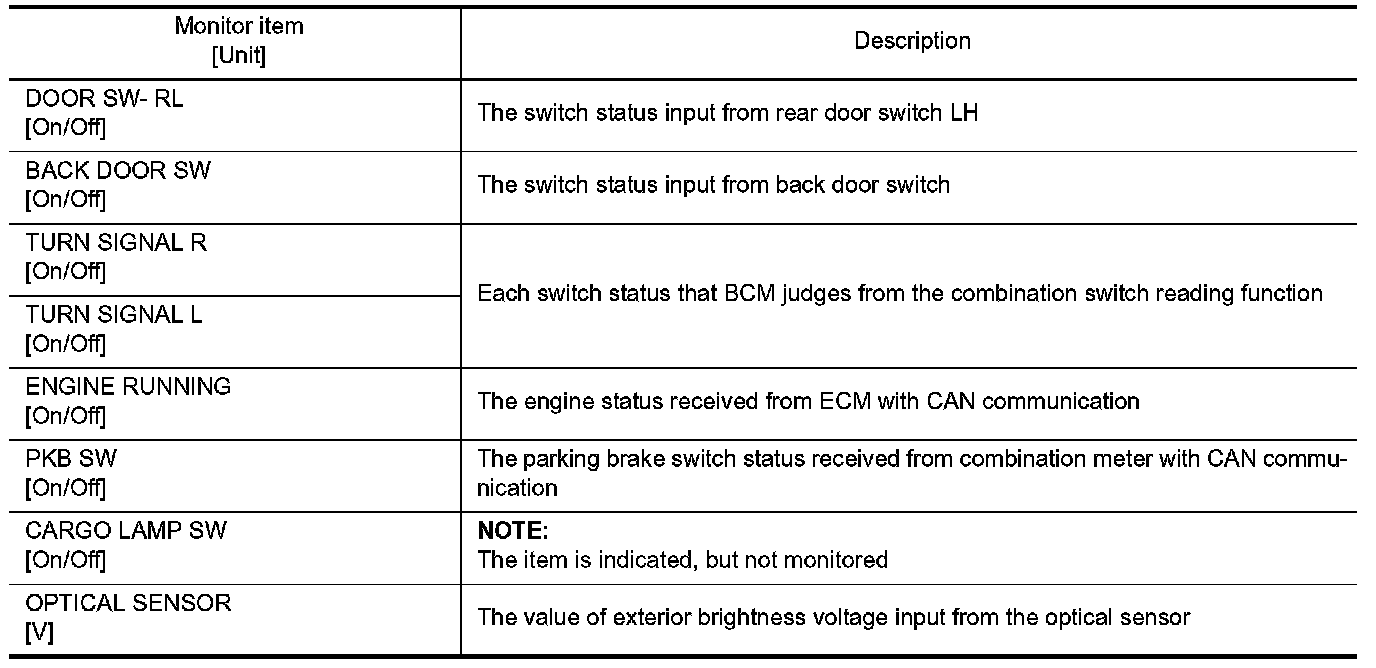

DATA MONITOR

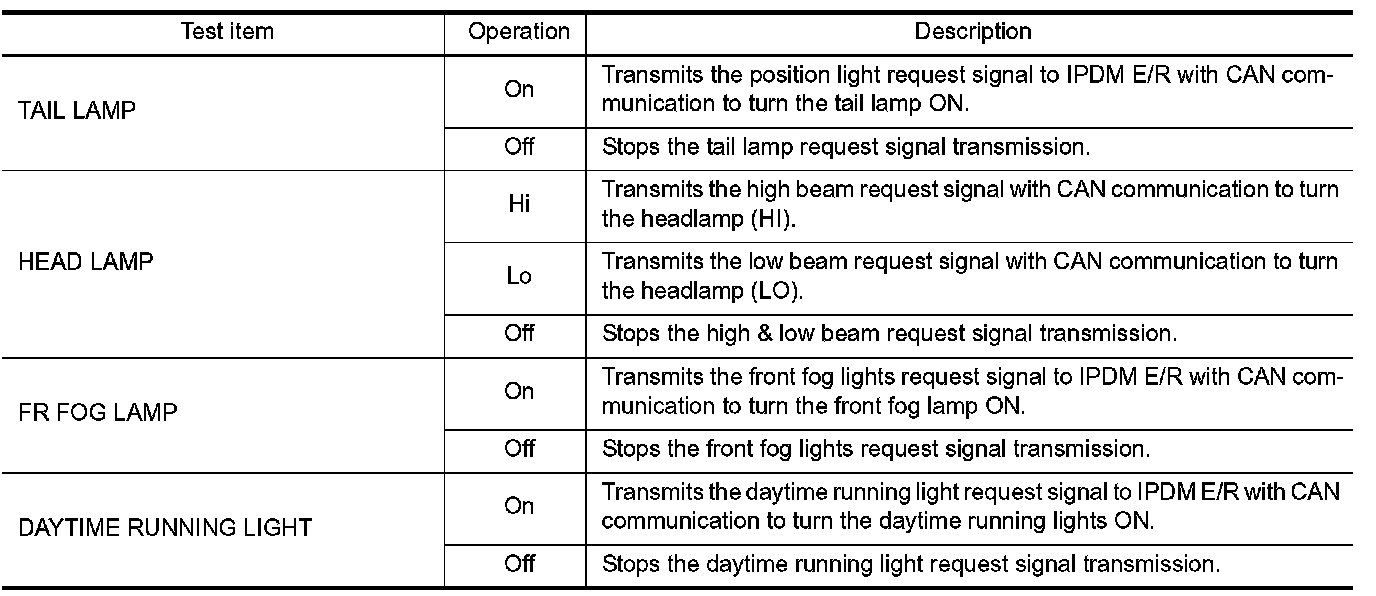

ACTIVE TEST
