Inspection




SPARK PLUG

Inspection


INSPECTION AFTER REMOVAL

Use standard type spark plug for normal condition.

Spark plug (standard): Spark Plug Gap.

CAUTION:
- Never drop or shock spark plug.

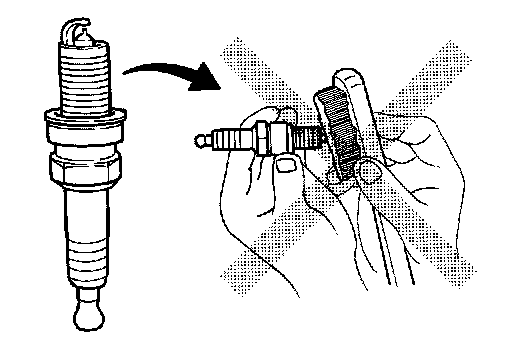

- Never use wire brush for cleaning.

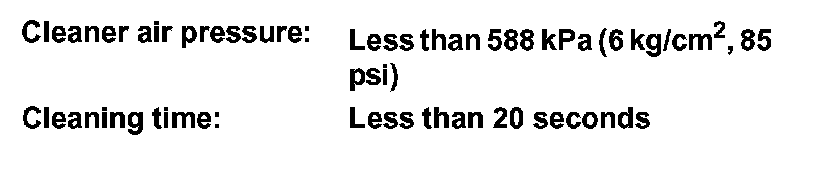

- If plug tip is covered with carbon, spark plug cleaner may be used.

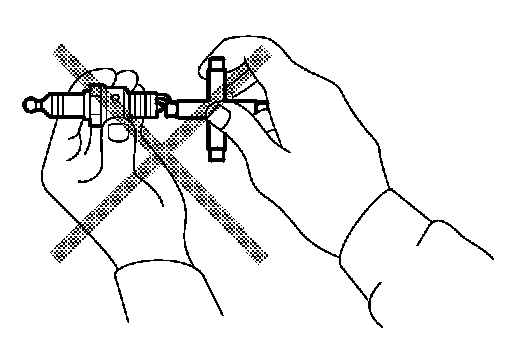

- Checking and adjusting plug gap is not required between change intervals.
