Removal And Installation

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Removal and Installation


CAUTION:
IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.Remove air duct (inlet). Exploded View.
2.Remove battery. Exploded View.

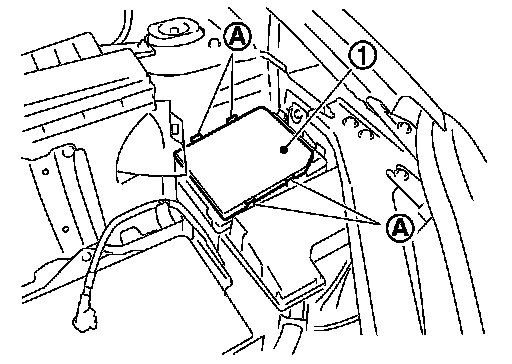

3.Remove IPDM E/R (1) while pushing and opening pawls (A).
4.Disconnect connectors from IPDM E/R.
5.Remove fuse and fusible link block cover.

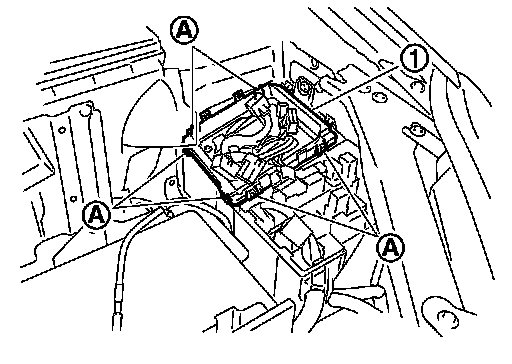

6.Unlock all pawls (A) of IPDM E/R bracket, and remove IPDM E/
R bracket (1).
7.Unlock pawls of IPDM E/R cover A, harness cover A and harness cover B, remove them.
8.Disconnect connectors connected to fuse and fusible link block upper side, and remove fuse and fusible link block.

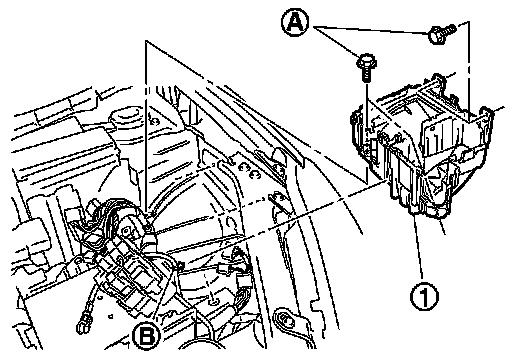

9.Remove IPDM E/R cover B mounting bolts (A) and battery cable fixed clip (B), and remove IPDM E/R cover B (1).

INSTALLATION

Install in the reverse order of removal.
