Rogue 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Description and Operation
>>
Hydraulic Control System
>>
System Diagram
System Diagram

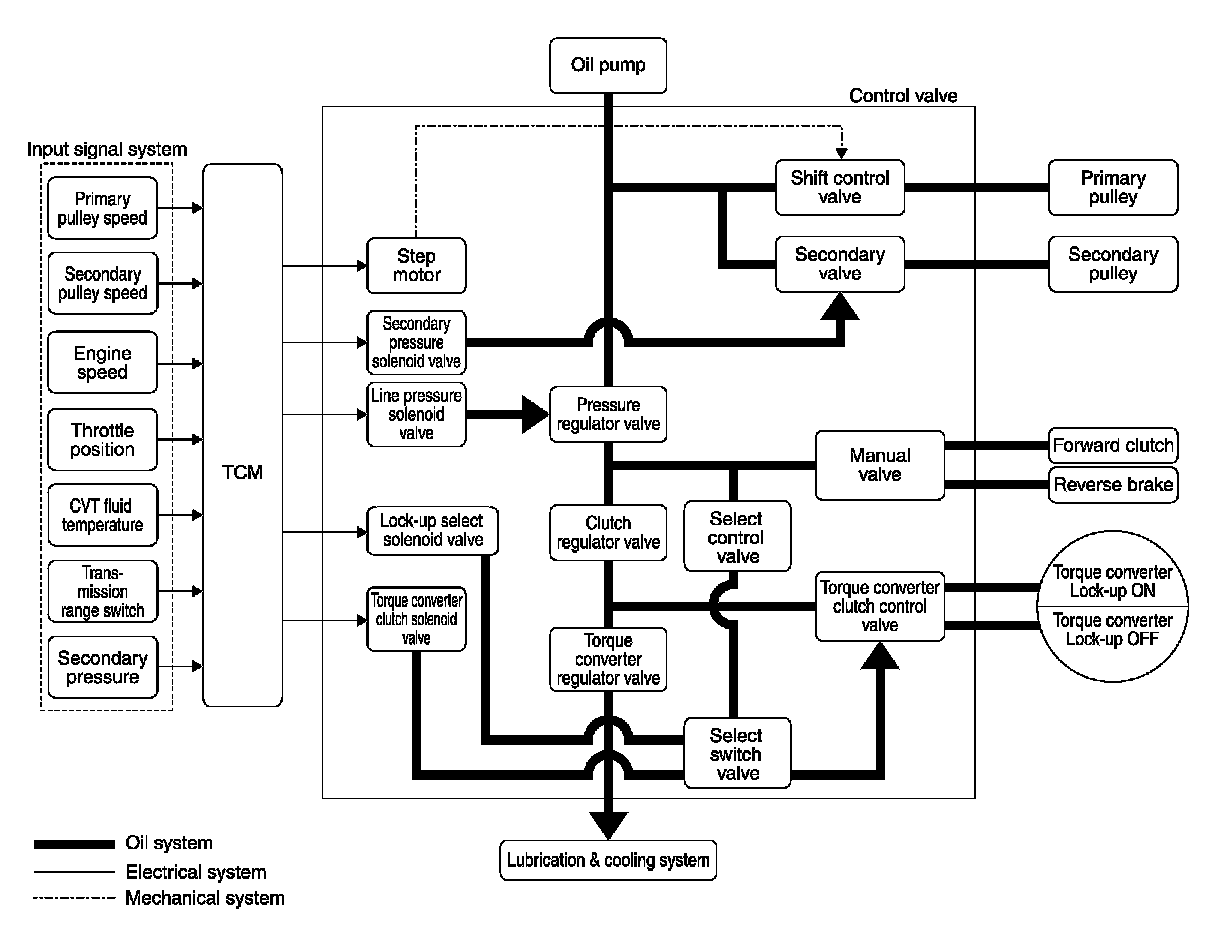

HYDRAULIC CONTROL SYSTEM
System Diagram
