Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Rogue 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Sensors and Switches - Transmission and Drivetrain
>>
Sensors and Switches - CVT
>>
Transmission Temperature Sensor/Switch
>>

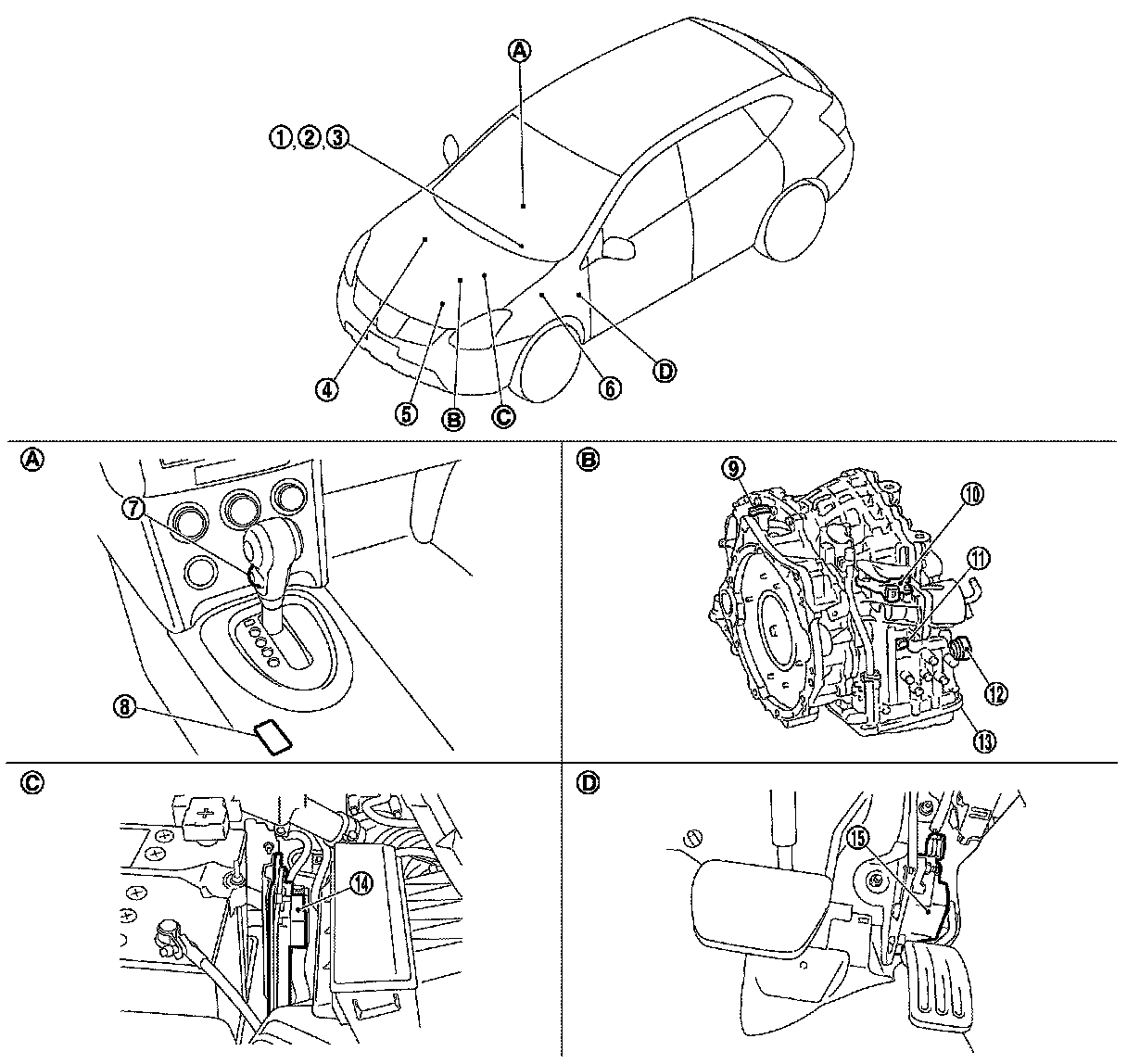

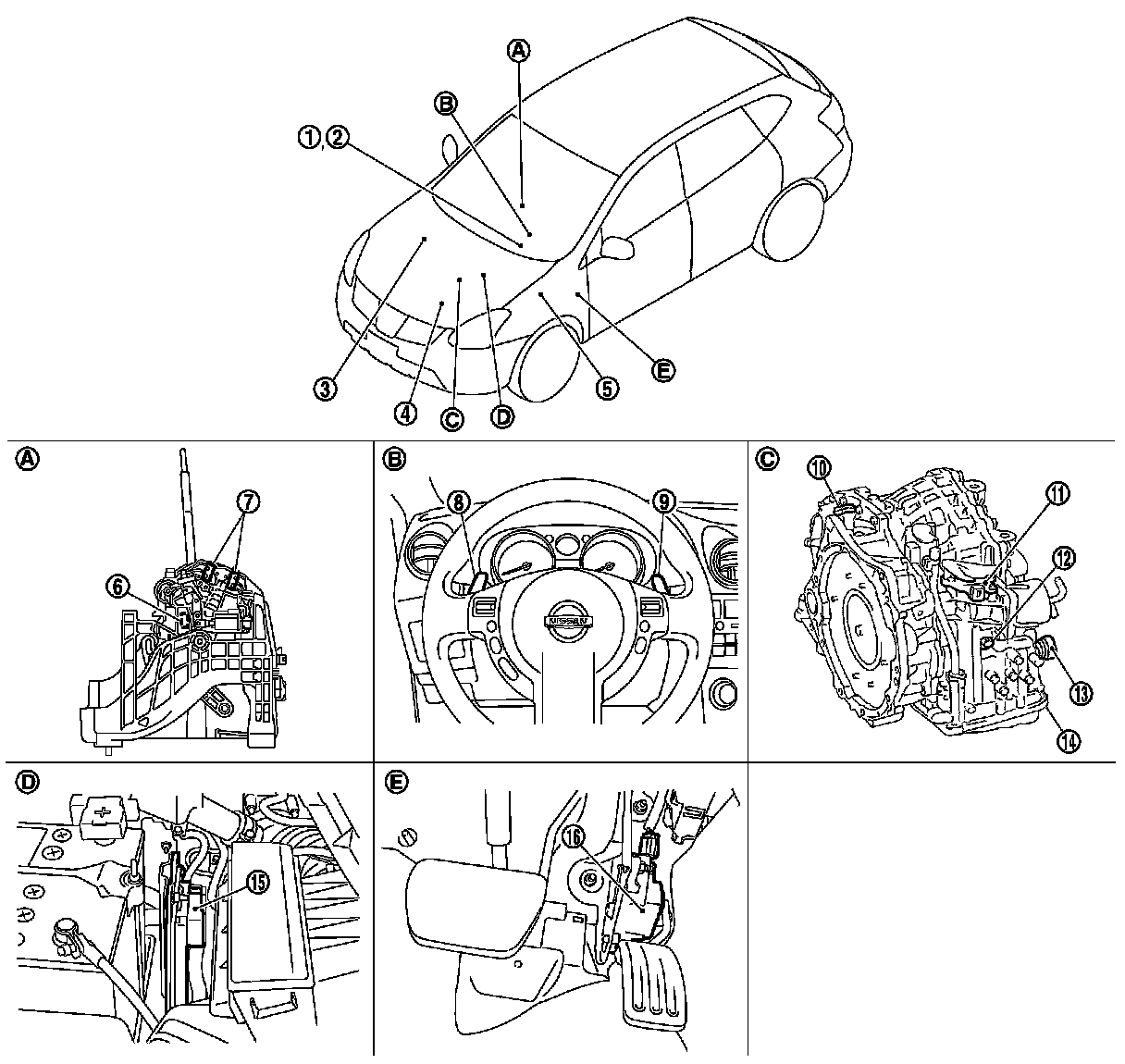

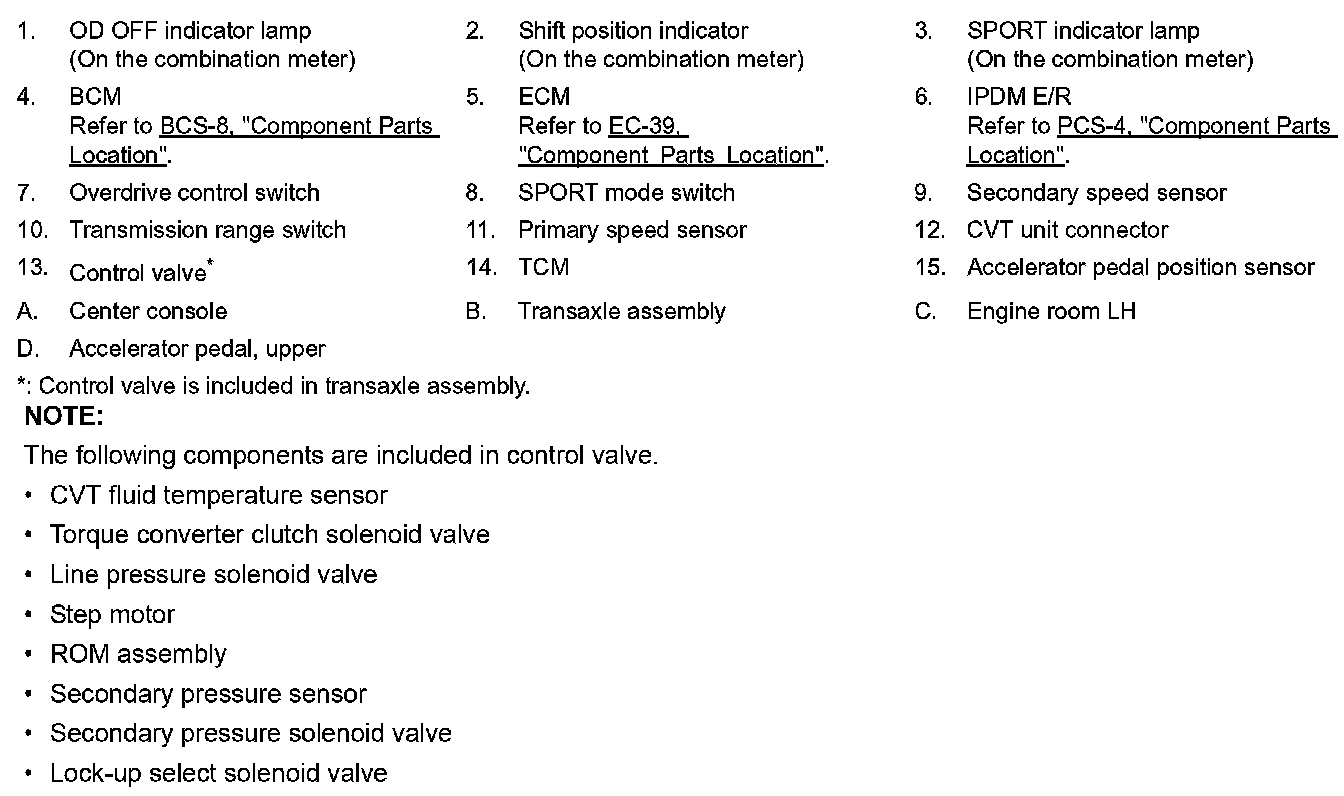

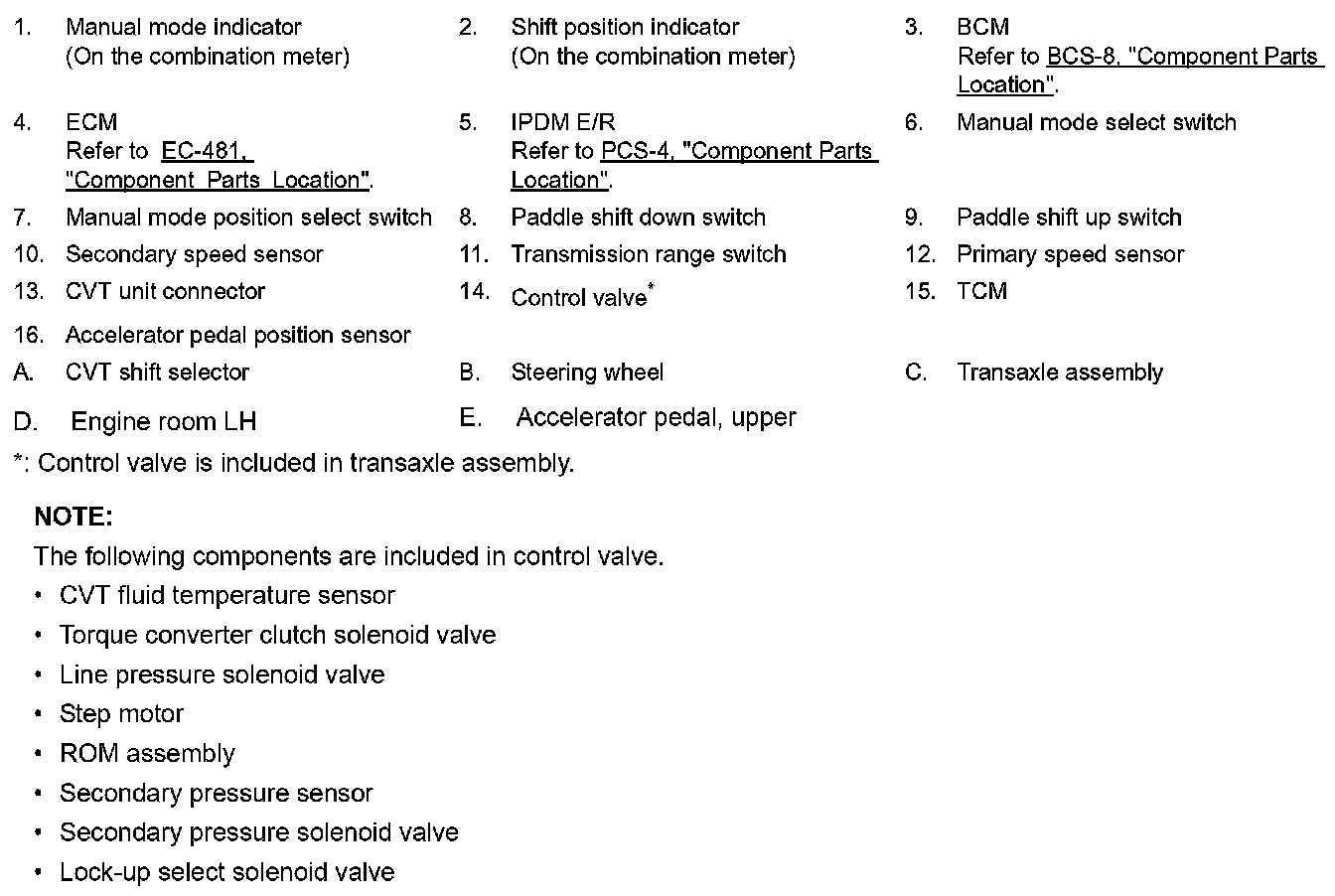

Locations
>>
Hydraulic Control System
Hydraulic Control System
