With Intelligent Key System

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE : Component Inspection


1. CHECK DOOR LOCK AND UNLOCK SWITCH

1.Turn ignition switch OFF.
2.Disconnect power window main switch connector.

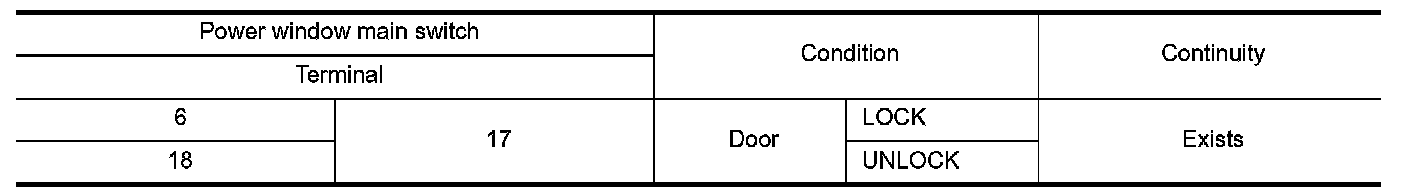

3.Check power window main switch.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace power window main switch. Removal And Installation.
